LUBRICATION SYSTEM
9-4

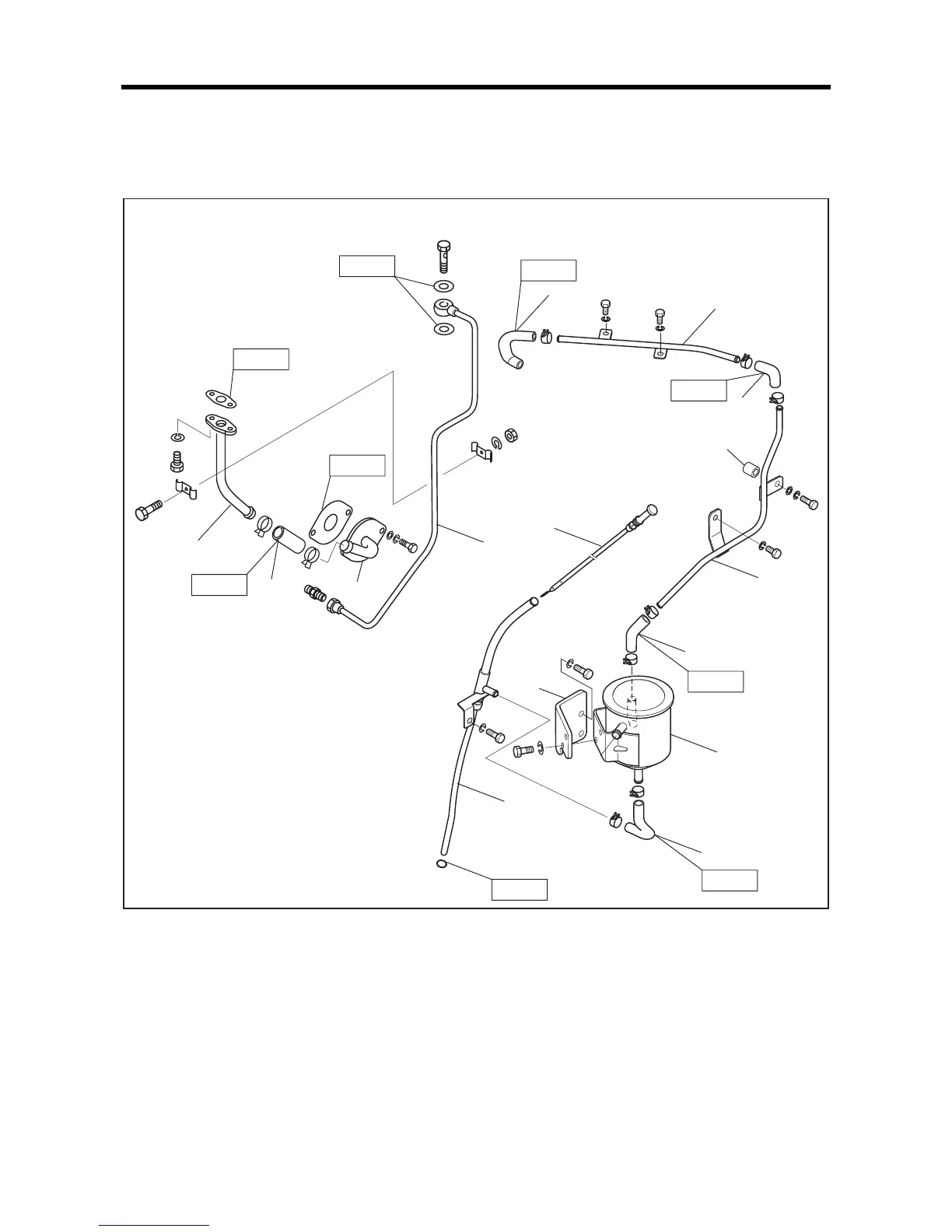

1.3 Removing and inspecting oil pipe and oil separator
Removing and inspecting oil pipe and oil separator
Removing sequence
1 Oil pipe 6 Breather hose 11 Spacer
2 Oil hose 7 Breather hose 12 Oil separator
3 Oil return pipe 8 Breather hose 13 Separator bracket
4 Oil return pipe 9 Breather pipe 14 Oil level gauge
5 Breather hose 10 Breather pipe 15 Level gauge guid
S
Q
-H
E
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
Replace
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
