REASSEMBLY OF BASIC ENGINE
7-11

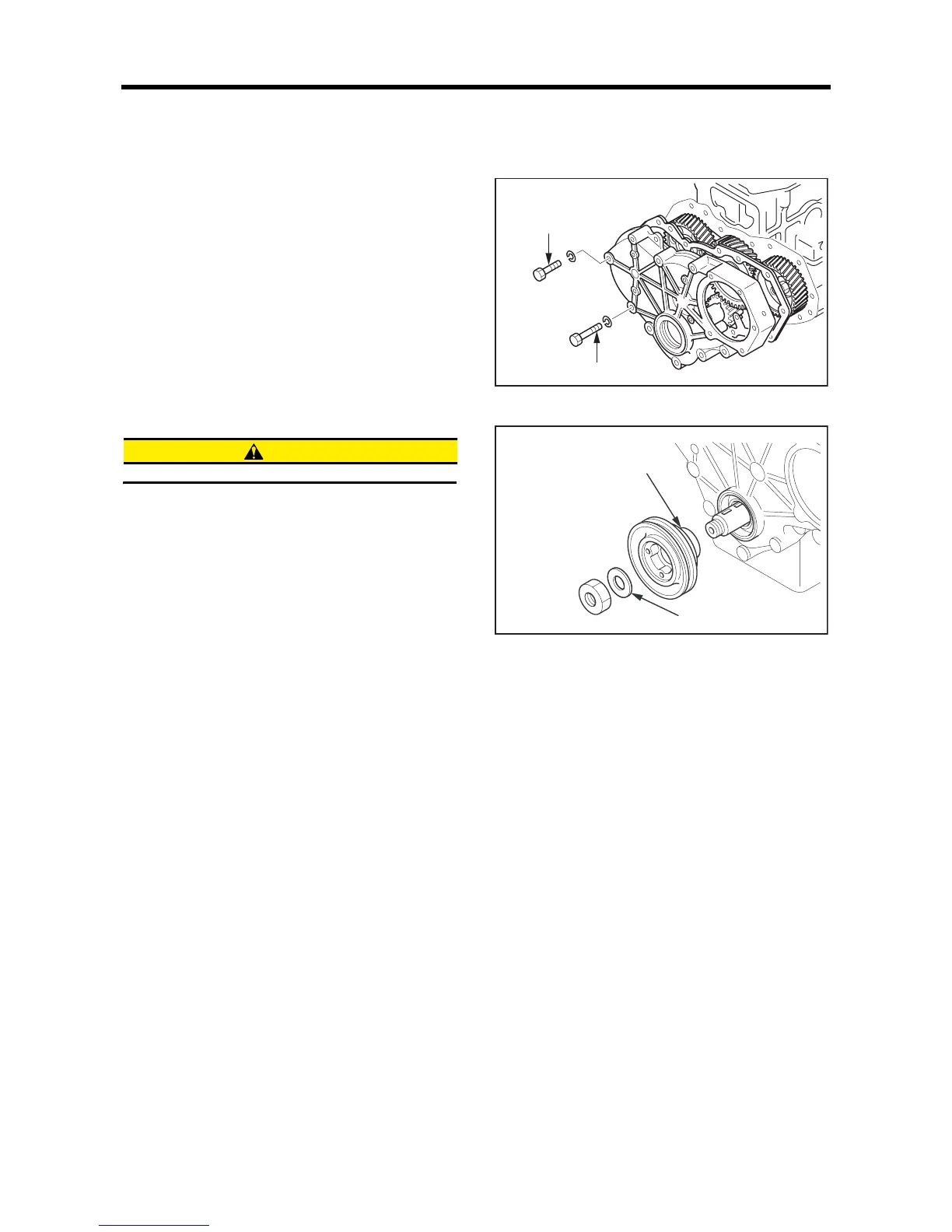

2.9 Installing timing gear case
(1)
Install the baffle plate to the crankcase.
(2) Install the gasket and the timing gear case to the
crankcase aligning with the dowel pin located on the
crankcase front side.
(3) Tighten the bolt to the specified torque.
Installing timing gear case
2.10 Installing crankshaft pulley
&$87,21
The bar could come off. Be very careful.
(1) Apply the engine oil to the oil seal contact surface of
the crankshaft pulley.
(2) Drive into the crankshaft pulley aligning with the
crankshaft key.
(3) Prevent the crankshaft turning using the threaded hole
at the rear end of the crankshaft.
(4) Install the nut with the washer, tighten the nut to the
specified torque.
Installing crankshaft pulley
40 mm [1.57 in.]
50 mm [1.97 in.]
12 ± 1 N·m
{1.2 ± 0.1 kgf·m}
[9 ± 0.7 lbf·ft]
392 ± 10 N·m
{40 ± 1 kgf·m}
[289 ± 7.2 lbf·ft]
Washer
Apply engine oil
To Next Page
