DISASSEMBLY OF BASIC ENGINE
5-8

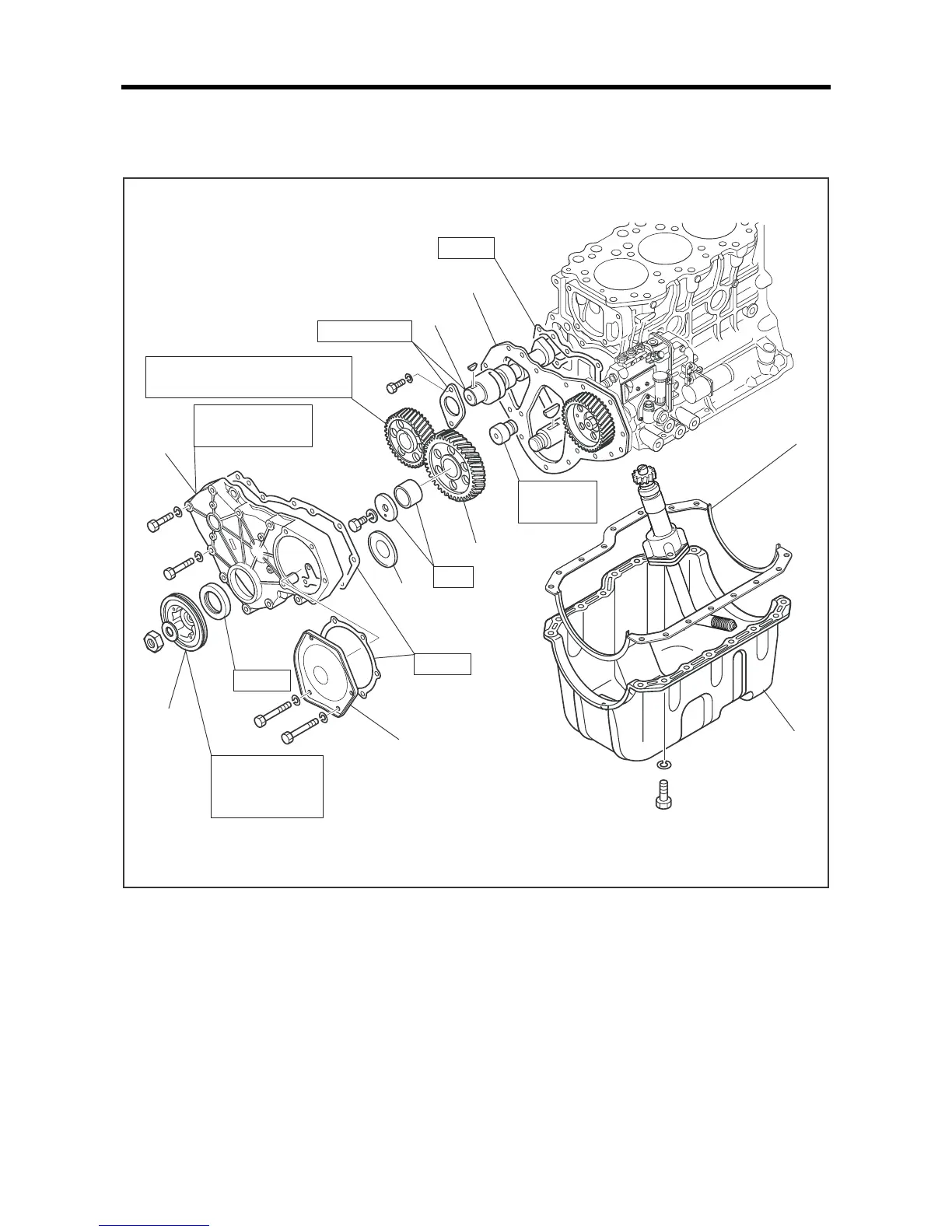

3. Disassembling and inspecting timing gear, camshaft and oil pan
Disassembling and inspecting timing gear, camshaft and oil pan
Disassembling sequence
1 Crankshaft pulley 4 Baffle plate 7 Oil pump
2 Cover 5 Idler gear 8 Camshaft
3 Timing gear case 6 Oil pan 9 Front plate
1
2
3
4
5
6
7
8
9
Replace
Replace
Crack, abnormality
of knock hole
Clogged oil
holes, Wear
Wear
Damage, wear
Flaking, uneven contact, damage,
abnormal key groove condition
Worn belt groove,
worn oil seal
contact surface
Replace
