REASSEMBLY OF BASIC ENGINE
7-4

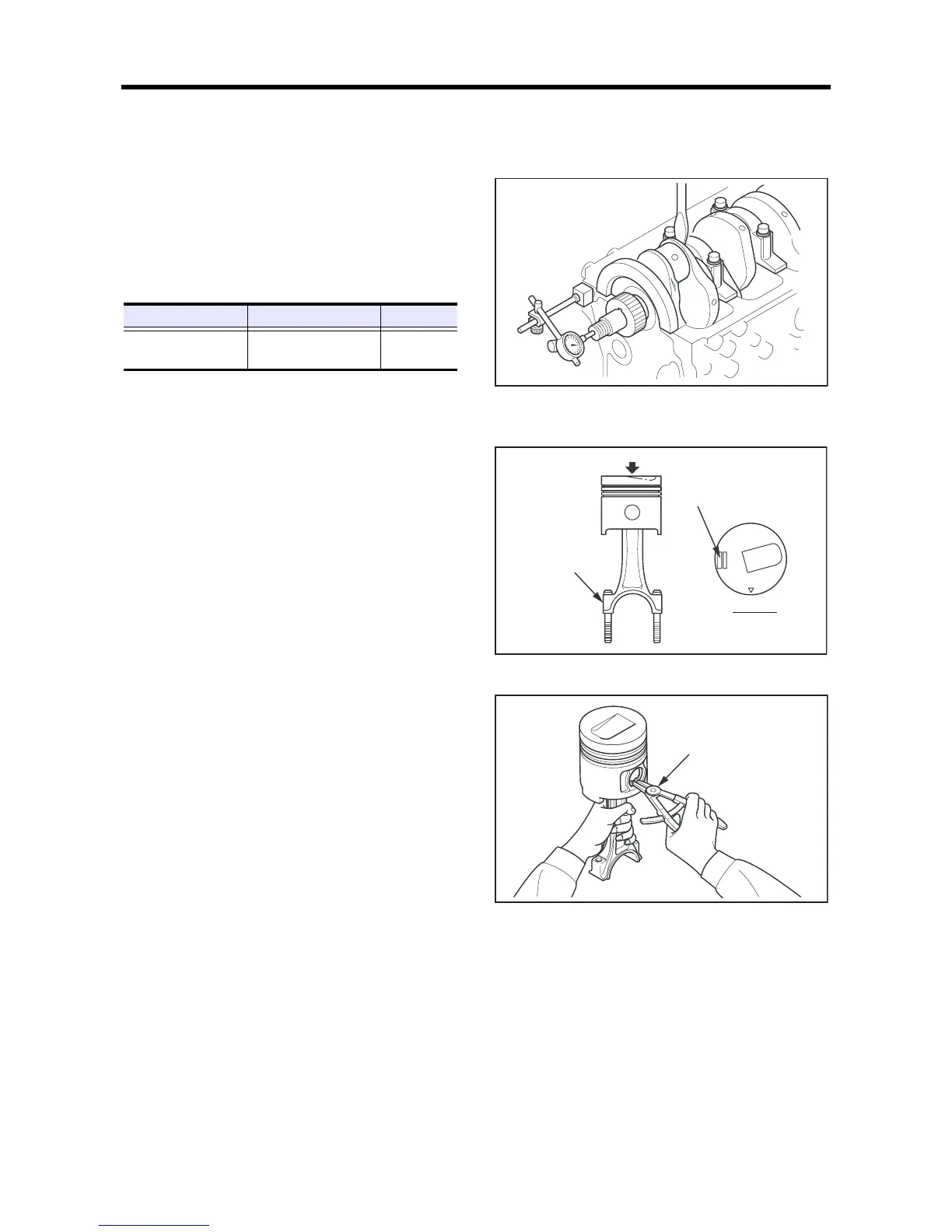

1.6 Measuring crankshaft end play
(1)
Measure the crankshaft end play.
(2) If the measured end play is small, loosen the cap bolt
and retighten it.
(3) If the measured value exceeds the limit, replace the
flange bearing with new one.
Measuring crankshaft end play
1.7 Reassembling piston and connecting rod
(1)
Apply engine oil to the piston pin, and reassemble the
piston and the connecting rod by inserting the piston
pin, observing the orientation of piston and connecting
rod shown in the illustration.
Note: The pistons and piston pins are assembled to each
other in clearance fit. However, the piston pins are
more easily inserted into the pistons if the pistons are
warmed up with a heater or in hot water.
(2) Using ring pliers, install the snap ring. Check the snap
ring for its tension, and make sure the ring fits snugly in
the groove.
Note: Install all the snap rings so that their end gap faces
toward the bottom of the piston.
Reassembling piston and connecting rod (1)
Reassembling piston and connecting rod (2)
Item Standard Limit
Crankshaft end play
0.100 to 0.204 mm
[0.0039 to 0.0080 in.]
0.300 mm
[0.0118 in.]
A
View A
Piston mass
Alignment
marks
Ring pliers
