Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
ALTERNATOR
ENGLISH
ELECTRICAL SYSTEM
2) Check to make sure that there is no continuity
between the lead wires and core.
If there is continuity, the circuit is grounded:
replace the stator.
4. Inspecting brushes
1) If the brushes are worn close to the wear limit
line (service limit), replace the brushes.
Unit: mm [in.]
2) Disconnect the brush lead wires at the
soldered sections to remove the brushes and
springs.

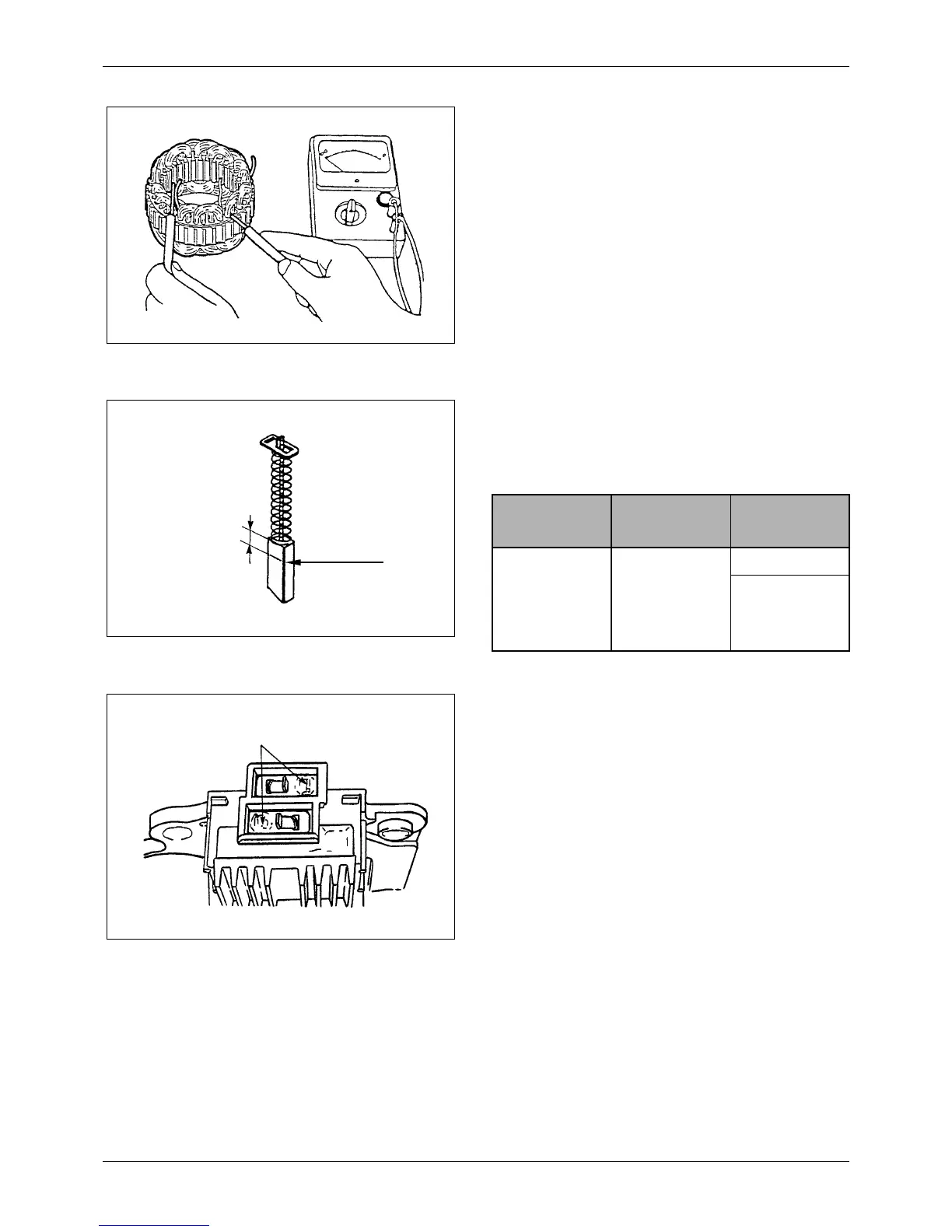

Figure 198 Stator core grounding test
Figure 199 Inspecting brush
Wear limit line
7 mm [0.276 in.]
5 mm [0.197 in.]
(option)
Assembly
Standard
Service Limit
Brush length 18.5 [0.728]
7 [0.276]
5 [0.197]
Option
(A7TA80AA)
(A3TN5776)
Figure 200 Replacement of brushes
Soldered sections
