Service Manual Mitsubishi SQ-Series diesel engines
Version 08/2004
TIMING GEARS, CAMSHAFT AND OIL
PAN
ENGLISH
ENGINE MAIN PARTS
6. Installing idler gear
1) Apply engine oil to the idler gear shaft.
2) Install the idler gear with its marks in
alignment with the marks on the injection
pump drive gear, camshaft gear and
crankshaft gear, as shown in the illustration.
3) Put the thrust plate on the idler gear and
tighten the bolt with washer to the specified
torque.
4) Move the idler gear back and forth in the axial
direction to make sure it has correct end play.
7. Checking timing gear backlash
After installing the timing gears, check them for
backlash, as shown in the illustration.
Unit: mm [in.]

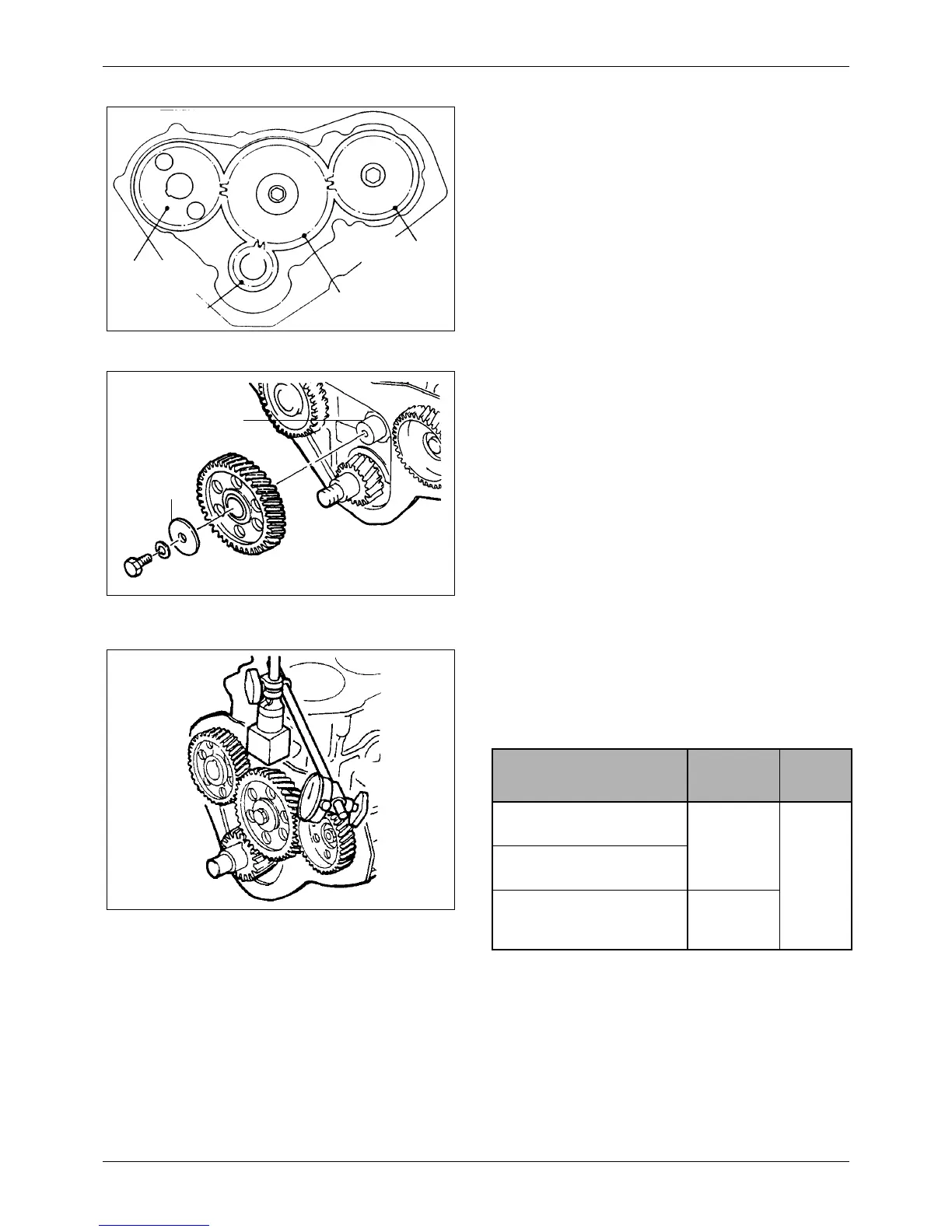

Figure 87 Marks on timing gears
Camshaft
gear
Idler gear
Injection
pump drive
gear
Crankshaft
gear
22
3
3
2
3
Figure 88 Installing idler gear
Apply engine oil
Thrust plate
Figure 89 Checking timing gear backlash
Item
Assembly
Standard
Service
Limit
Backlash between crankshaft
gear and idler gear
0.05 to 0.15
[0.0020 to
0.0059]
0.25
[0.0098]
Backlash between idler gear
and camshaft gear
Backlash between injection
pump drive gear and idler gear
0.04 to 0.16
[0.0016 to
0.0063]
