Chapter 3 OPERATION
Coolant level - Check
1. Open the radiator cap and check the coolant level.
2. If the coolant level is low, add coolant to the speci-
fied level.
Note: Determine the quantities of LLC based on the
coolant capacity and the LLC concentration
chart.
For the coolant, refer to "COOLANT" (6-1). For
the coolant capacity, refer to ""MAIN SPECIFI-
CATIONS" (12-1).
3. If a reserve tank is equipped, fill the reserve tank
with coolant up to the [FULL] line level.

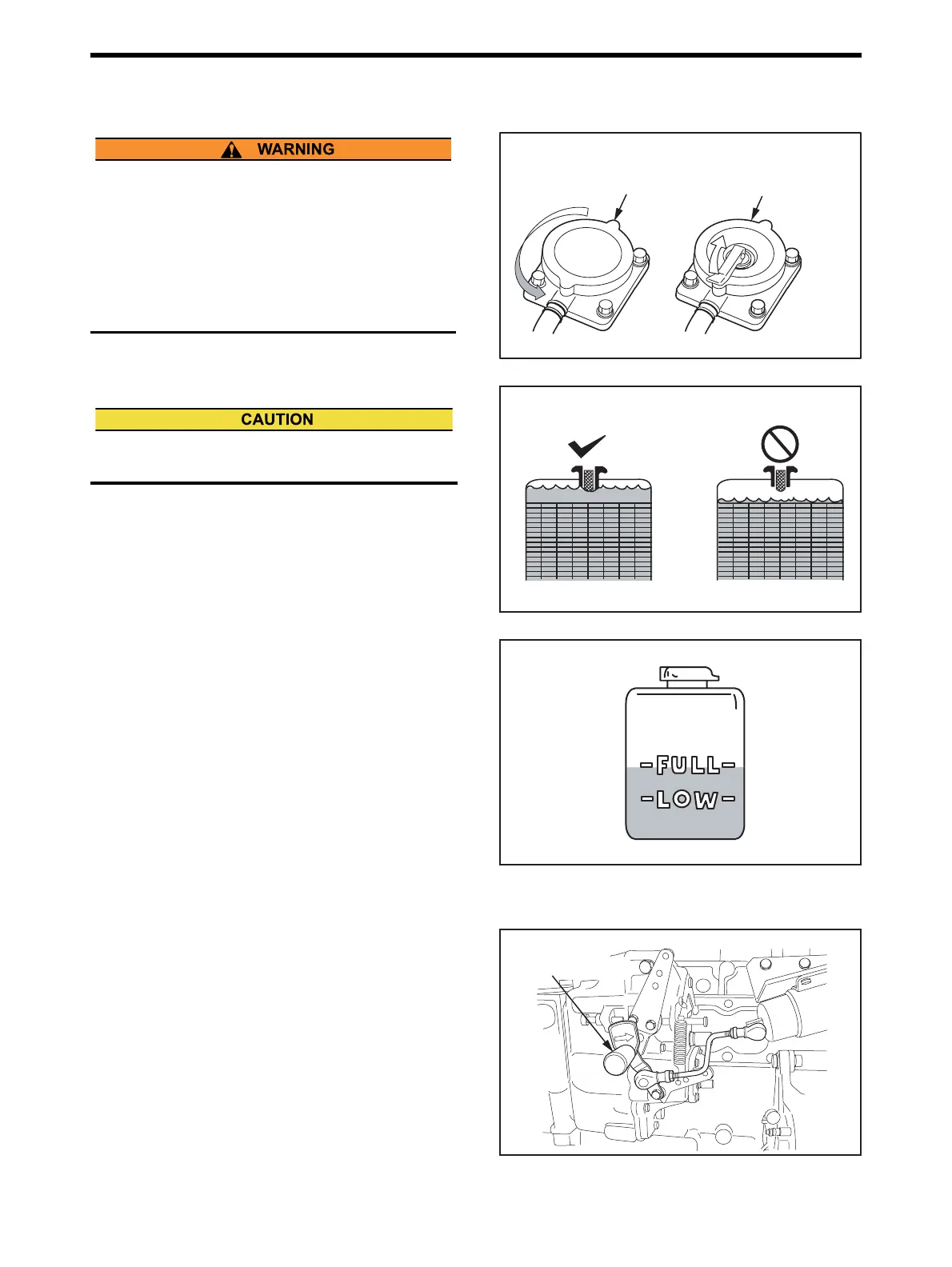

Fig. 3-15 Radiator cap
Fig. 3-16 Radiator coolant level
Fig. 3-17 Reserve tank coolant level
Fuel control link - Check
Check fuel control link for smooth movement.
When the manual stop lever is pulled to the direction
of arrow, check that the lever can be pulled 2 mm
[0.08 in.] more from the stop position.
Also check ball joint for looseness and play.
Fig. 3-18 Fuel control link - Check
Remove the radiator cap only after the engine has
cooled to room temperature. Place a waste cloth
over the cap, and loosen the cap about a half-turn or
stand the lever to the upright position to release inter-
nal pressure. Opening the radiator cap while the
engine is hot causes steam and hot coolant to spray
out and may result in skin burns.
Always use the coolant with the same LLC concen-
tration.
Turn the cap about
half a turn
Stand the lever to
the upright position
STOP
Manual stop lever
