10-1
Chapter 10 TRANSPORTATION
Lifting the engine

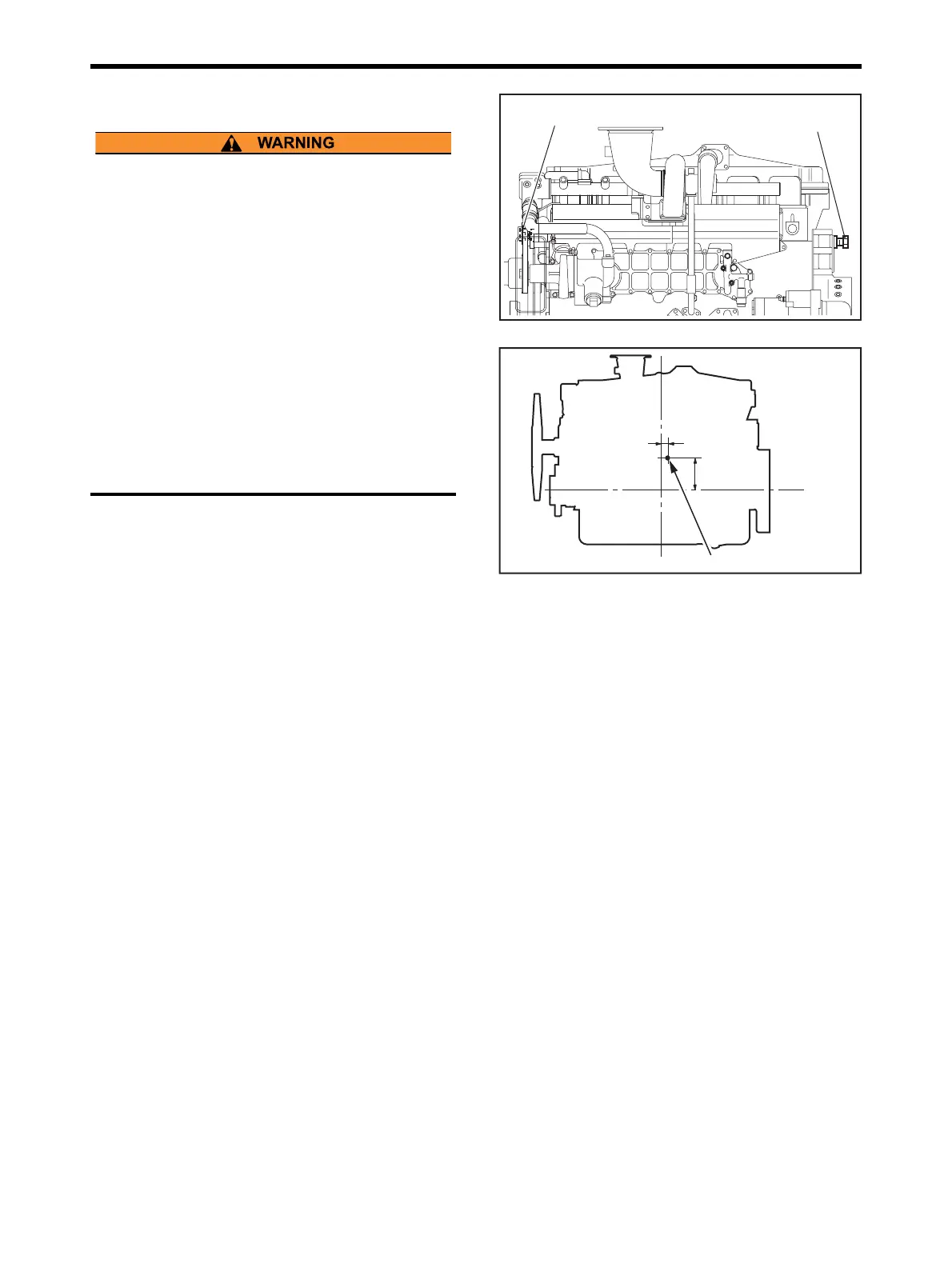

Fig. 10-1 Lifting hanger
Fig. 10-2 Engine's center of gravity
To lift the engine, use wire ropes, shackles and slings
capable of supporting the weight of the engine.
Attach the wire rope to the lifting hangers provided on
the engine using a correct sling.
Keep the engine balanced during lifting by consider-
ing the engine's center of gravity.
Keep the angle formed by slings attached to hangers
within 60°. If the angle exceeds this limit, excessive
load could be imposed on the hangers and this could
damage the hangers and result in a serious accident.
Attach wire ropes to the hanger after removing the
pipe cover and the insulator near the hanger for lift-
ing. To prevent wire ropes from contacting the
engine, use a cloth or other soft padding.
Front hanger
Rear hanger
205 mm
[8.07 in.]
50 mm
[1.97 in.]
The center of gravity
