Chapter 8 PERIODIC INSPECTION AND MAINTENANCE PROCEDURES
Lubricating system
Engine oil, Oil filter and Bypass oil filter - Replace
Engine oil - Drain
After the engine has stopped, drain engine oil from the engine oil drain port.
Engine oil - Refill
1. Remove the cap from the oil filler.
2. Fill the engine oil pan with specified engine oil to
the specified level.
Note: For engine oil, refer to "ENGINE OIL" (5-1). For
engine oil capacity, refer to "MAIN SPECIFICA-
TIONS" (12-1).
3. Check the oil level in the oil pan as follows:
4. Pull out the oil level gauge and wipe it clean with a
waste cloth.
5. Insert the oil level gauge fully into the oil level
gauge guide, then pull out the gauge again.
6. The correct oil level is between the MAXIMUM and
MINIMUM marks on the oil level gauge.
If the oil level is low, add engine oil of the specified
type.
7. Check the oil pan and other area for oil leaks. Re-
pair the oil leakage if any.
8. Crank the engine with the starter for 10 seconds to
circulate oil throughout the engine. After 1 minute
of rest period, perform the above cranking opera-
tion again to circulate oil in the engine.
9. Check the oil level with the oil level gauge again,
and add oil to the specified level.

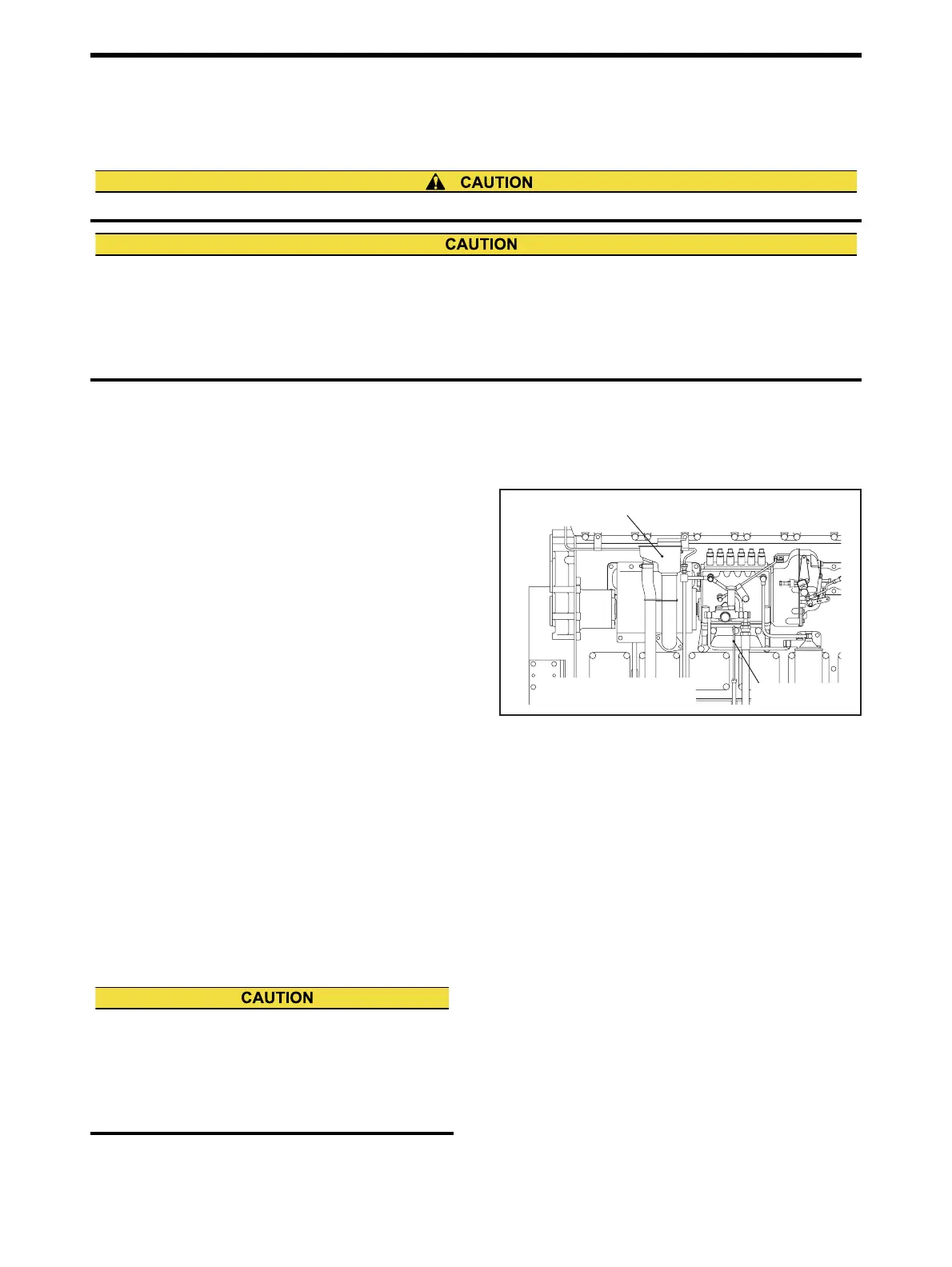

Fig. 8-14 Oil filler and oil level gauge
When draining oil or changing the oil filter, wear gloves. Hot engine oil and parts may cause burns.
Do not dump waste oil. It is forbidden by law. Consult your Mitsubishi dealer for disposal of waste oil.
Change the engine oil, oil filter and bypass oil filter at the same time.
Also checking and analyzing the oil properties is recommended when changing the engine oil.
Do not reuse the oil filter element, as it is a paper type. When replacing filters, always replace gasket with new
ones.
To crank the engine, shut off the fuel supply to the
engine and operate the starters.
When conducting the above cranking operation, also
check the items to be inspected for the cooling sys-
tem by cranking.
Oil filler
Oil level gauge
