REASSEMBLY OF BASIC ENGINE
7-13
2.13 Installing oil pan
(1)
Clean the mount surfaces of the crankcase, timing gear
case, and oil pan.
(2) Squeeze ThreeBond 1207C (32A91-05100: liquid
gasket) in a 4 mm [0.16 in.] diameter bead all around
the oil pan flange periphery, and spread it.
(3) Install the oil pan to the crankcase within five minutes
of applying the liquid gasket.
(4) Tighten the mounting bolts to the specified torque.

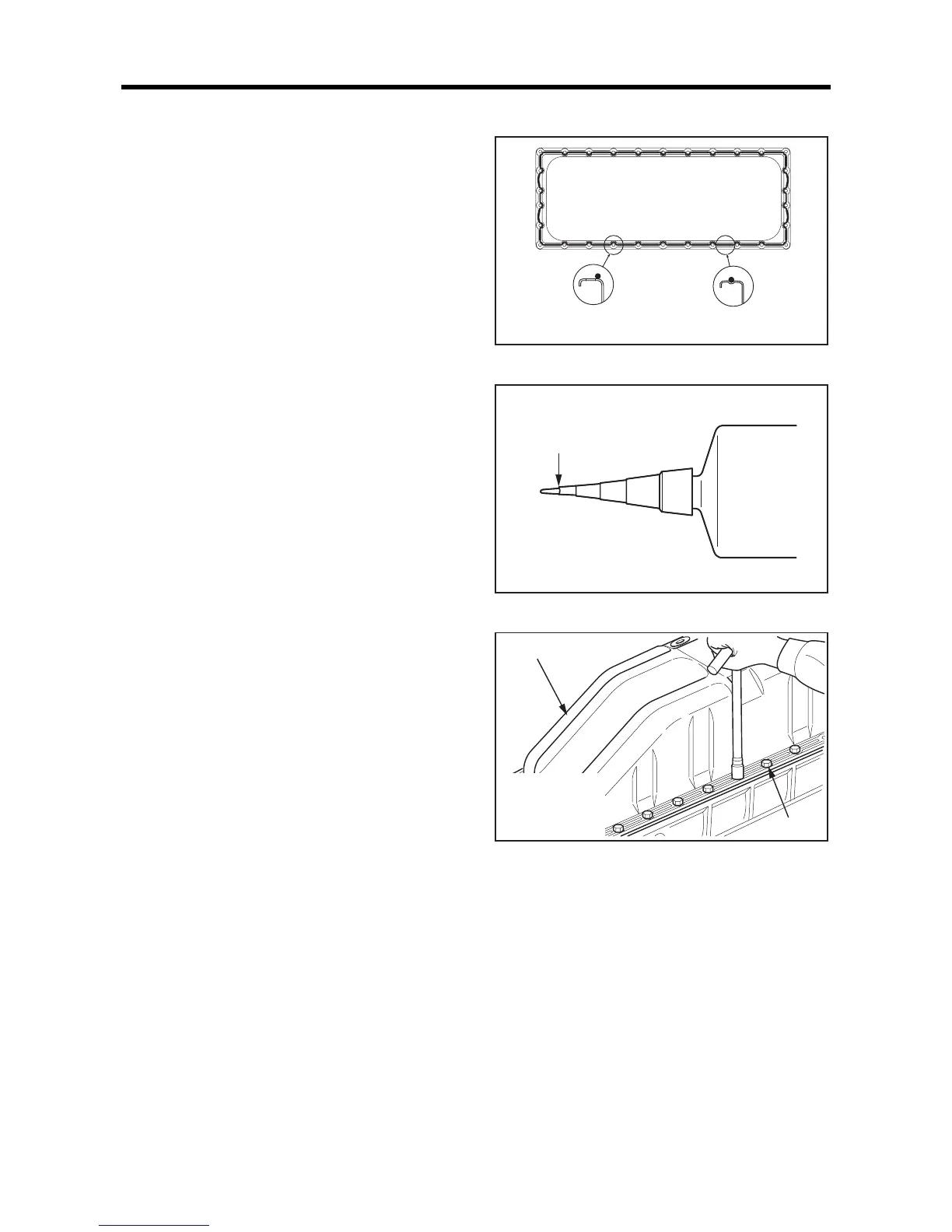

Liquid gasket application position
Cutting end of sealant tube
Installing oil pan
Apply ThreeBond 1207C to all around oil pan flange
periphery
Cut here
11.3 ± 1.5 N·m
{1.15 ± 0.15 kgf·m}
[8.3 ± 1.1 lbf·ft]
Oil pan
Bolt
To Next Page
