DISASSEMBLY OF BASIC ENGINE
5-6

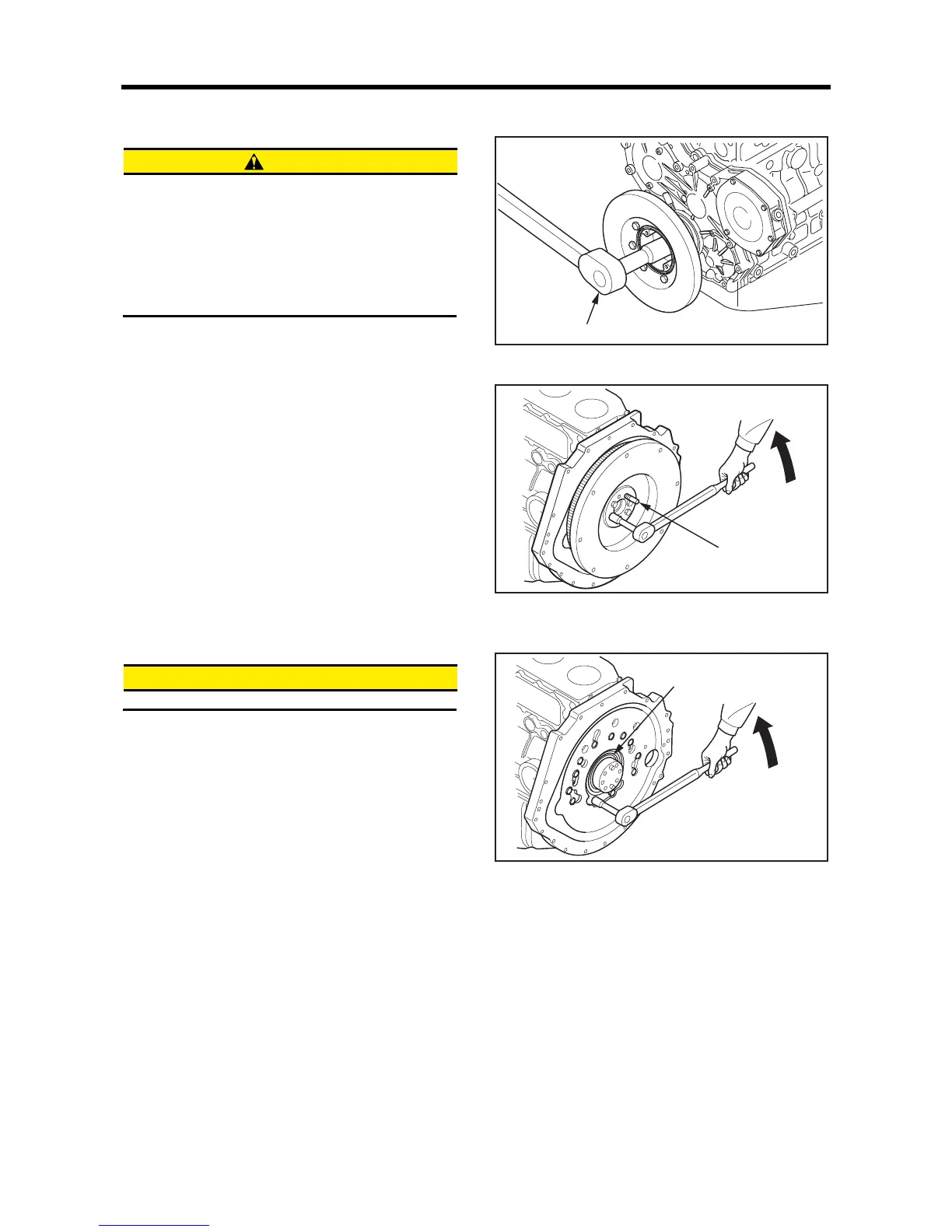

2.1 Removing flywheel
CAUTION
(a) Be careful not to cut yourself with the ring gear
when pulling out the flywheel.
Be careful not to drop or hit the flywheel when
removing.
(b) The person who holds the pulley must be very
careful to assure safety by communicating with the
person who is removing the flywheel.
(1) One personnel must firmly hold the pulley with a
wrench to prevent the flywheel from turning.
(2) Remove one bolt from the flywheel.
(3) Screw a guide bolt into the threaded hole of the bolt that
has been removed.
(4) Remove remaining bolts from the flywheel.
(5) Hold the flywheel firmly with both hands, and while
moving it back and forth, pull it out straight.
Note: The ring gear is shrink fitted to the flywheel. Do not
remove the ring gear unless it is defective.
Locking the flywheel
Removing flywheel
2.2 Removing rear plate
CAUTION
Be very careful not to damage the oil seal.
Remove the rear plate mounting bolts, and remove the rear
plate using a guide bolt.
Removing rear plate
Prevent the flywheel from rotating using a wrench.
Guide bolt
Oil seal
To Next Page
