DISASSEMBLY OF BASIC ENGINE
5-15

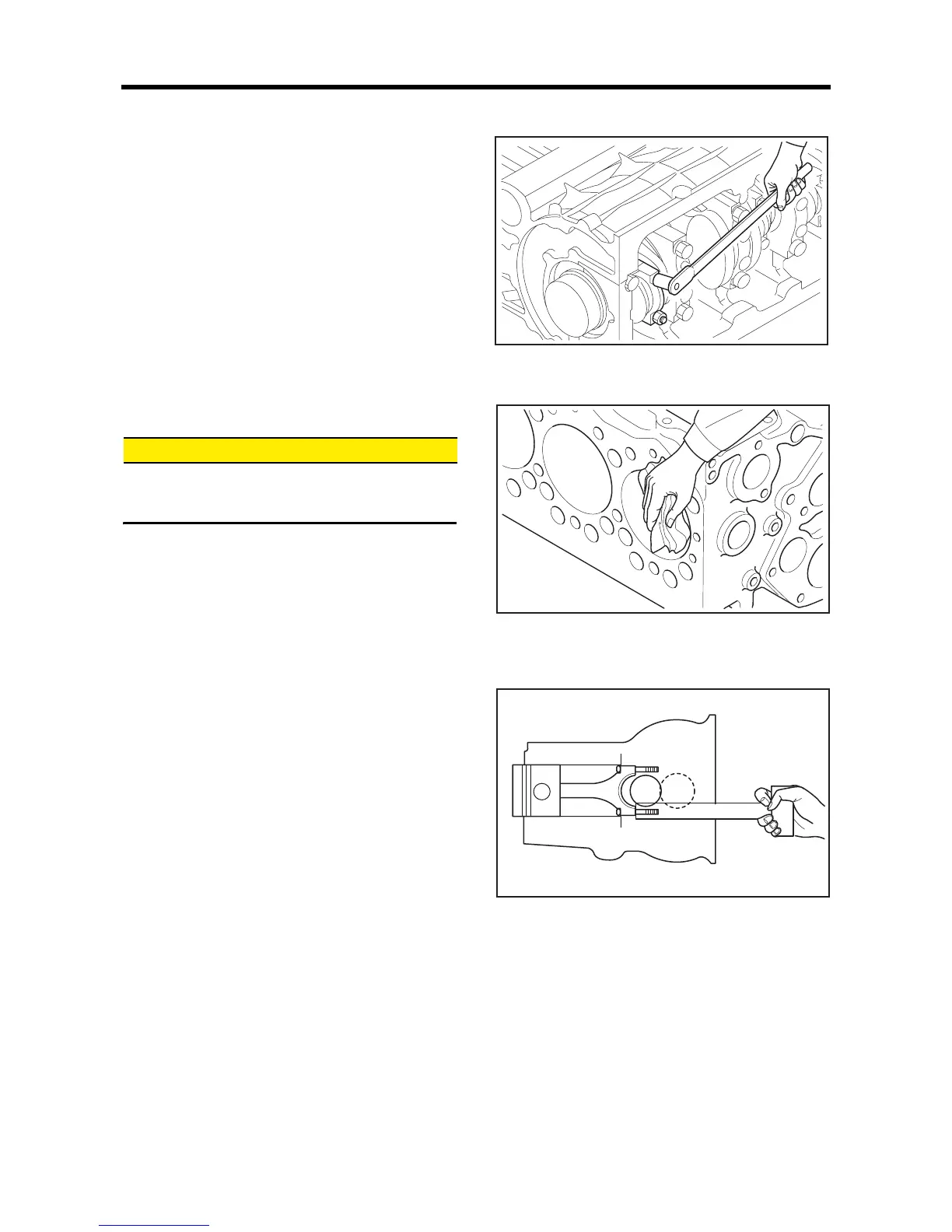

4.1 Removing connecting rod cap
(1)
Lay the engine on its side.
(2) Mark the cylinder number on the connecting rod and
connecting rod cap so that their combination is not
changed when reassembling.
(3) Remove the connecting rod caps.
Note: Mark the cylinder No. and upper/lower on connecting
rod bearings to ensure correct reassembling.
Removing connecting rod cap
4.2 Removing carbon deposits from the upper
part of cylinder liner
CAUTION
Be sure to remove carbon deposits from the upper part
of the cylinder liner before removing the piston, as it
could cause damage to the piston and piston ring.
Remove carbon deposits from the upper part of cylinder
liner using a carbon remover.
Note: Be careful not to damage the inner surface of the
cylinder liner.
Removing carbon deposits from the upper part of
cylinder liner
4.3 Pulling out piston
(1)
Turn the crankshaft to bring the piston to top dead
center.
(2) Using a piece of wood such a hammer handle, push the
mating surface of the connecting rod cap, and pull the
piston and connecting rod upward from the cylinder.
Removing piston
