DISASSEMBLY OF BASIC ENGINE
5-9

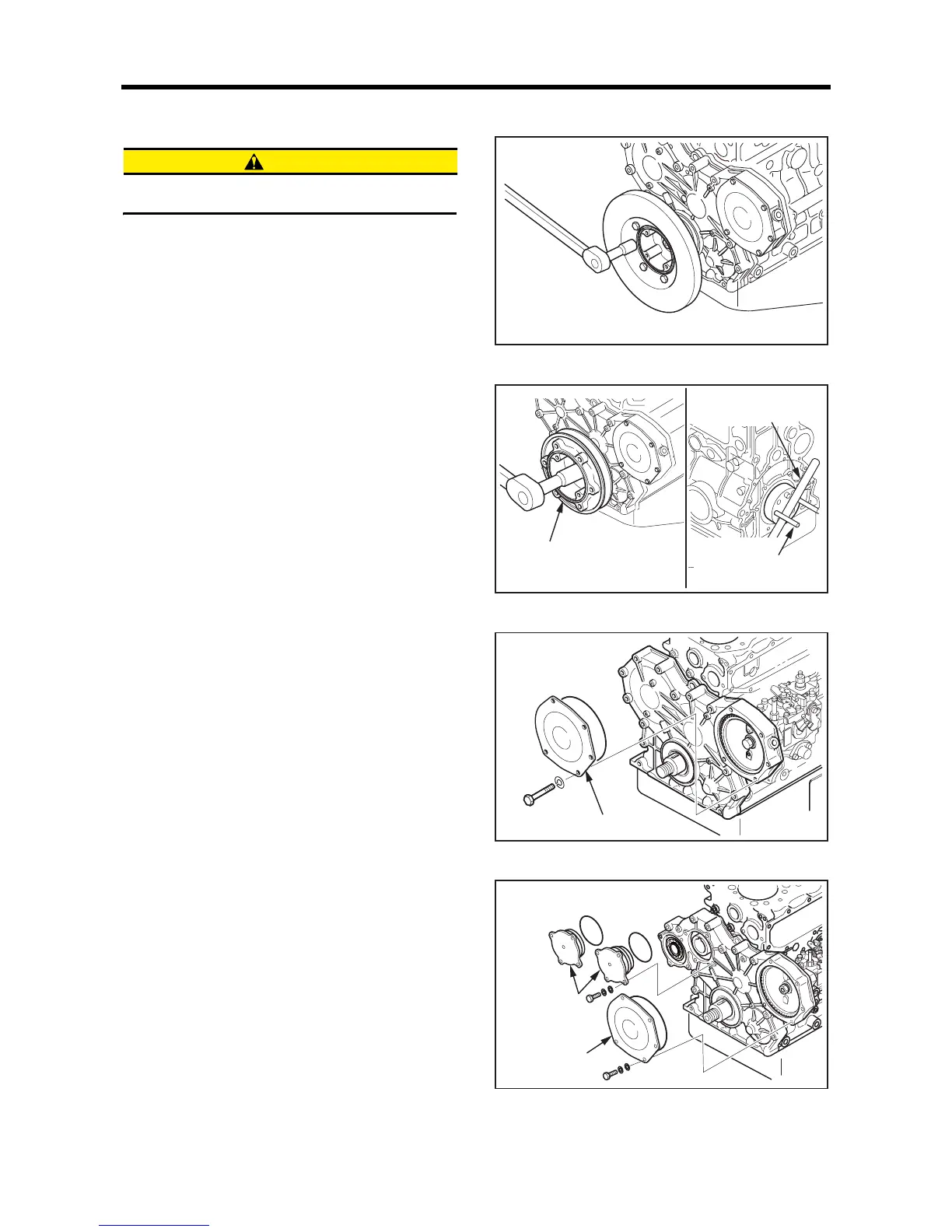

3.1 Removing crankshaft pulley and damper
CAUTION
The bar that stops the crankshaft from turning may
come off. Pay special attention to safety.
(1) Screw two guide bolts into the threaded holes at the rear
end of the crankshaft. Stick a bar across the guide bolts
to prevent the crankshaft from turning.
(2) Remove the crankshaft pulley and damper.
Removing damper
Removing crankshaft pulley
3.2 Removing cover
Unscrew the cover mounting bolts, and remove the cover.
Removing cover
Removing cover
回り止めをする
(Front)
(Rear)
Guide bolt
(M12×1.25mm)
Prevent crankshaft
from rotating
Crankshaft pulley
Cover
S6S-Y3T62HF
Cover
Bearing case
S6S-Y3T61HF
