Using the remote control
30°30°
30°30°
20°
10°
20°
10°
20°
20°

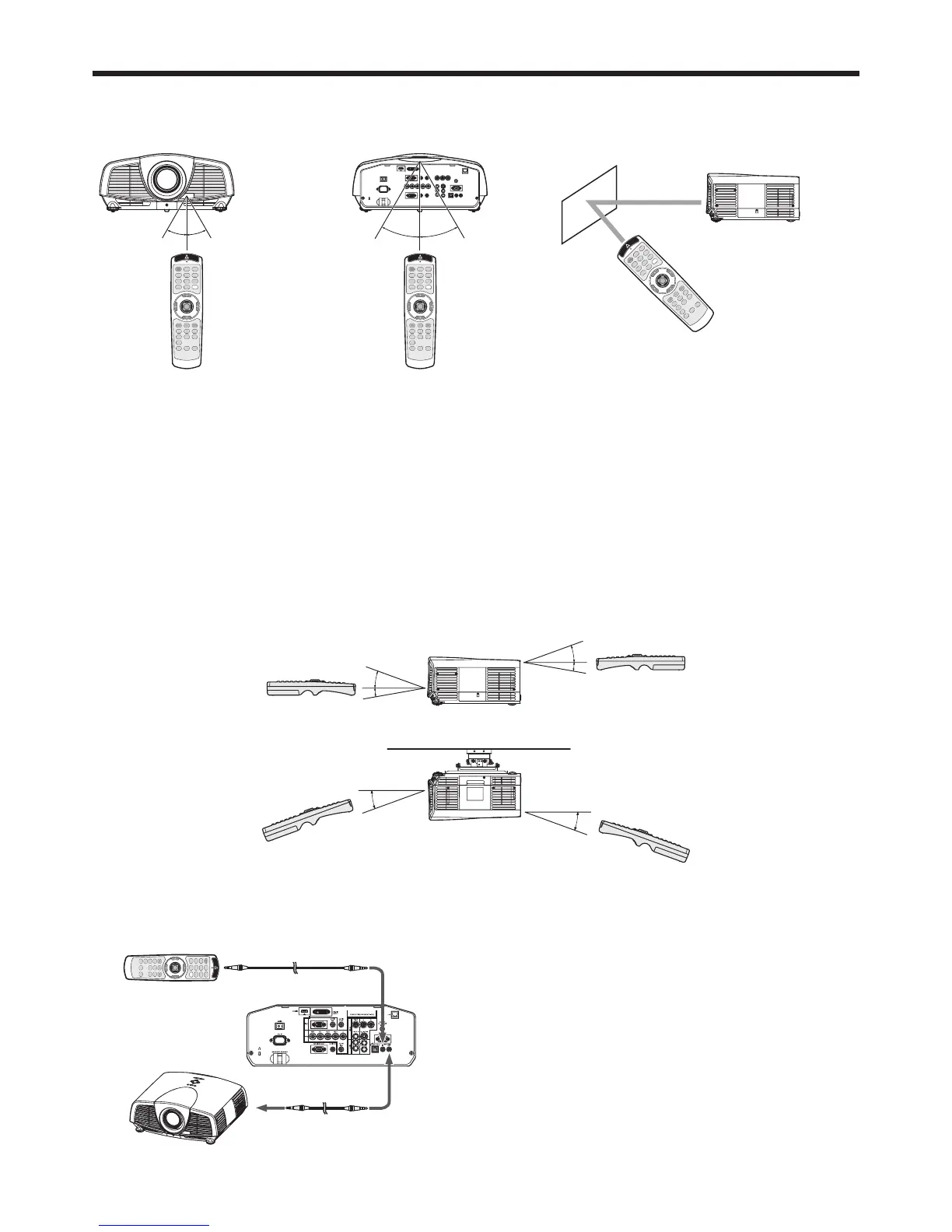

Operational range of the remote control
• Keeptheremotecontrolphoto-sensoroutofdirect
sunlight or fluorescent lamp light.
• Keeptheremotecontrolphoto-sensoratleast2m
(6 feet) away from fluorescent lamps. Otherwise, the
remote control may malfunction.
• Ifthereisaninverter-operateduorescentlampnear
the remote control, the remote control operation may
become unstable.
• Whenyouusetheremotecontroltooclosetothe
remote control sensor, the remote control may not work
correctly.
Reception angle
Vertical directions
Vertical directions (ceiling mount)
Front of projector
Rear of projector
Operate the remote
control within a distance
of 10 m (30 feet) from the
projector, pointing the
light beam at the remote
control photo-sensor (front
or rear) of the projector.
When operating the remote control, keep the
distance from the remote control to the projector
via the screen within about 5 m (15 feet). The
operable range of the remote control, however,
depends on the characteristics of the screen.
Using the wired remote control
Attached remote control for this projector can be used as a wired remote control with remote control cable. Wired
remote control is useful for operating in a distance or outside of the operating area.
• Forconnection,usethepin-pincableofø3.5stereo
type, which is commercially available. However,
some cable may not work correctly.
• WhenREMOTEOUTterminalonthisprojectoris
connected to the REMOTE IN terminal on the other
projector, the two projectors can be controlled
together by using the remote control.
• Whentheremotecontrolisconnectedwithremote
control cable, it does not work as a wireless remote
control.
• Whenusingthewiredremotecontrol,thelaser
beam may be darker. It is normal.
REMOTE IN
REMOTE OUT
REMOTE IN

Mitsubishi WD3300U Specifications

General

Projection distance	- m
Vertical scan range	50 - 95 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	2300:1
Screen size compatibility	300 \
Projector native resolution	WXGA (1280x800)
Video in	Yes
Resolution	1280 x 1024 pixels
Aspect ratio	4:3, 16:9
RS-232 ports	1
Compatibility	PC Mac
Power supply type	AC
Dimensions (WxDxH)	450 x 373 x 188 mm
Power requirements	100 - 240 V, 50 - 60 Hz
Connectivity technology	Wired
Focus	Auto
Focal length range	- mm
Service life of light source	4000 h
Noise level	26 dB
Dot clock scanning frequency	162 MHz
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	10 W
Headphone outputs	2
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
Power consumption (standby)	- W
Power consumption (typical)	430 W

Weight and Dimensions

Weight	10300 g
