Mitsubishi WD570U User Manual

EN-21

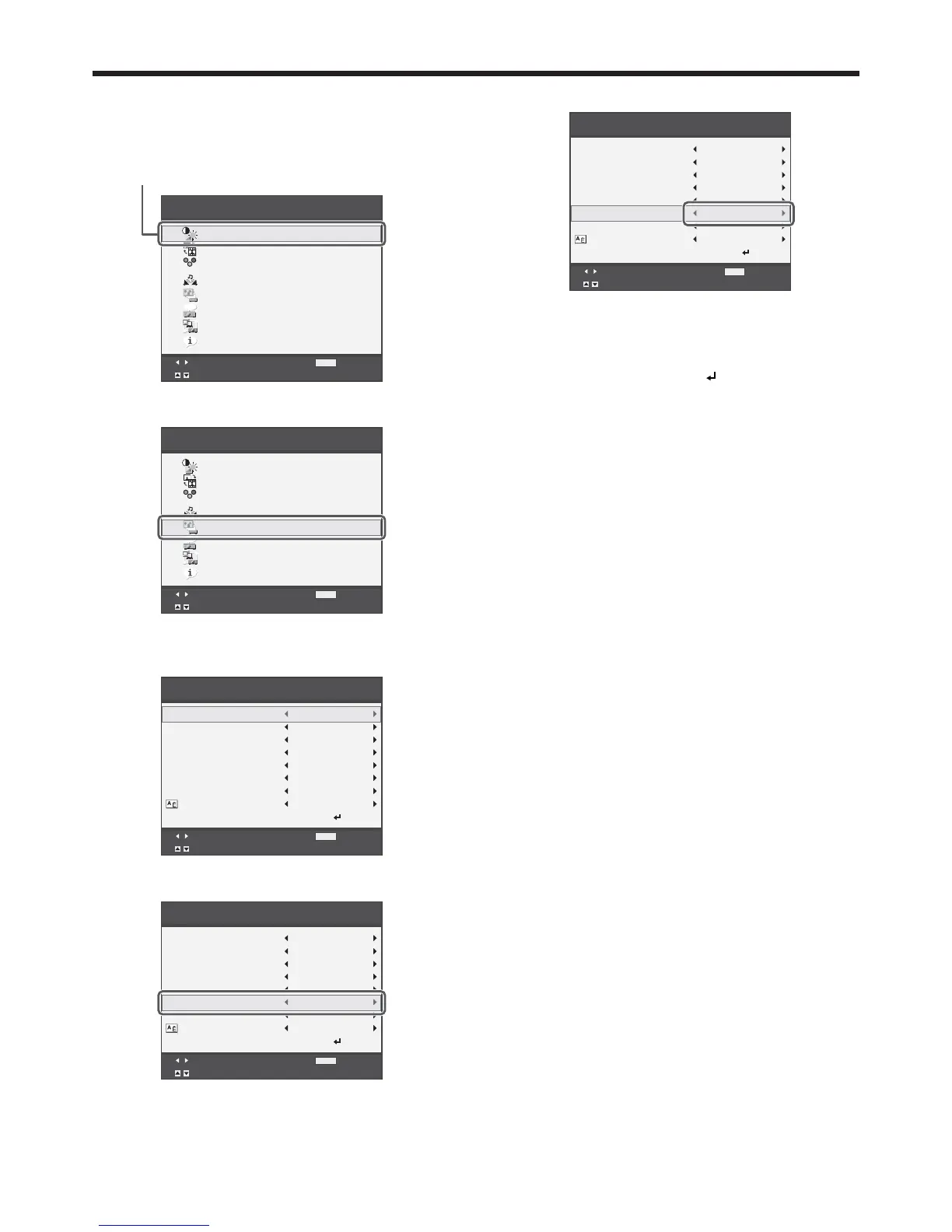

How to set the menus
1. Press the MENU button.
t 5IF.BJO.FOVBQQFBSTPOUIFTDSFFO
Confirm Exit
Select
MENU
Main Menu
opt.
R G B
R G B
Video Image
Signal
Audio
Installation
Option
Network Config
Information
The item being selected is displayed in red letters
on a blue background.
2. Press the  or  button to select a menu to use.
Confirm Exit
Select
MENU
Main Menu
opt.
R G B
R G B
Video Image
Signal
Audio
Installation
Option
Network Config
Information
3. Press the ENTER button (or  button).
t 5IFTFMFDUFENFOVJTEJTQMBZFE
Installation
Adjust
MENU
Exit
Select
Menu Position
Image Reverse
Auto Power On
Auto Power Off
Auto Keystone
Reset All
Upper Left
Off
Off
English
Off
5Min
Standby Mode
Low
Lamp Mode
Standard
OK
Language
4. Press the  or  button to select an item to adjust.
Installation
Adjust
MENU
Exit
Select
Menu Position
Image Reverse
Auto Power On
Auto Power Off
Auto Keystone
Reset All
Upper Left
Off
Off
English
Off
5Min
Standby Mode
Low
Lamp Mode
Standard
OK
Language
5. Set the selected item by pressing the  or  button.
Installation
Adjust
MENU
Exit
Select
Menu Position
Image Reverse
Auto Power On
Auto Power Off
Auto Keystone
Reset All
Upper Left
Off
Off
English
Off
30Min
Standby Mode
Low
Lamp Mode
Standard
OK
Language
6. To cancel the menu, press the MENU button
several times.
Important:
t When an item marked with “ ” is selected, pressing
the ENTER button makes its value effective or
displays another screen for further setting.
t 8IFOUIF.&/6CVUUPOEPFTOUGVODUJPOVOQMVH
the power cord from the wall outlet. Wait about 10
minutes, plug the power cord in, and try again.
t 5IFNFOVTBOETDSFFOTTIPXOJOUIJTNBOVBMNBZ
be different from those of the actual projector.
Menu operation (continued)

Mitsubishi WD570U Specifications

General

Projection distance	- m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 105 kHz
Projection technology	DLP
Contrast ratio (typical)	3000:1
Screen size compatibility	40 - 300 \
Projector native resolution	WXGA (1280x800)
Aspect ratio	-
Compatibility	PC/MAC Compatibility
Dimensions (WxDxH)	259 x 111.76 x 325.12 mm
Focus	Manual
Zoom capability	Yes
Focal length range	- mm
HDCP	No
Noise level	33 dB
Noise level (economic mode)	28 dB
Dot clock scanning frequency	165 MHz
Service life of light source	3000 h
Service life of light source (economic mode)	6000 h
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720i, 720p
Analog signal format system	NTSC 4.43, PAL, SECAM B
Product color	White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	340 W

Weight and Dimensions

Weight	3810.18 g
