EN-7

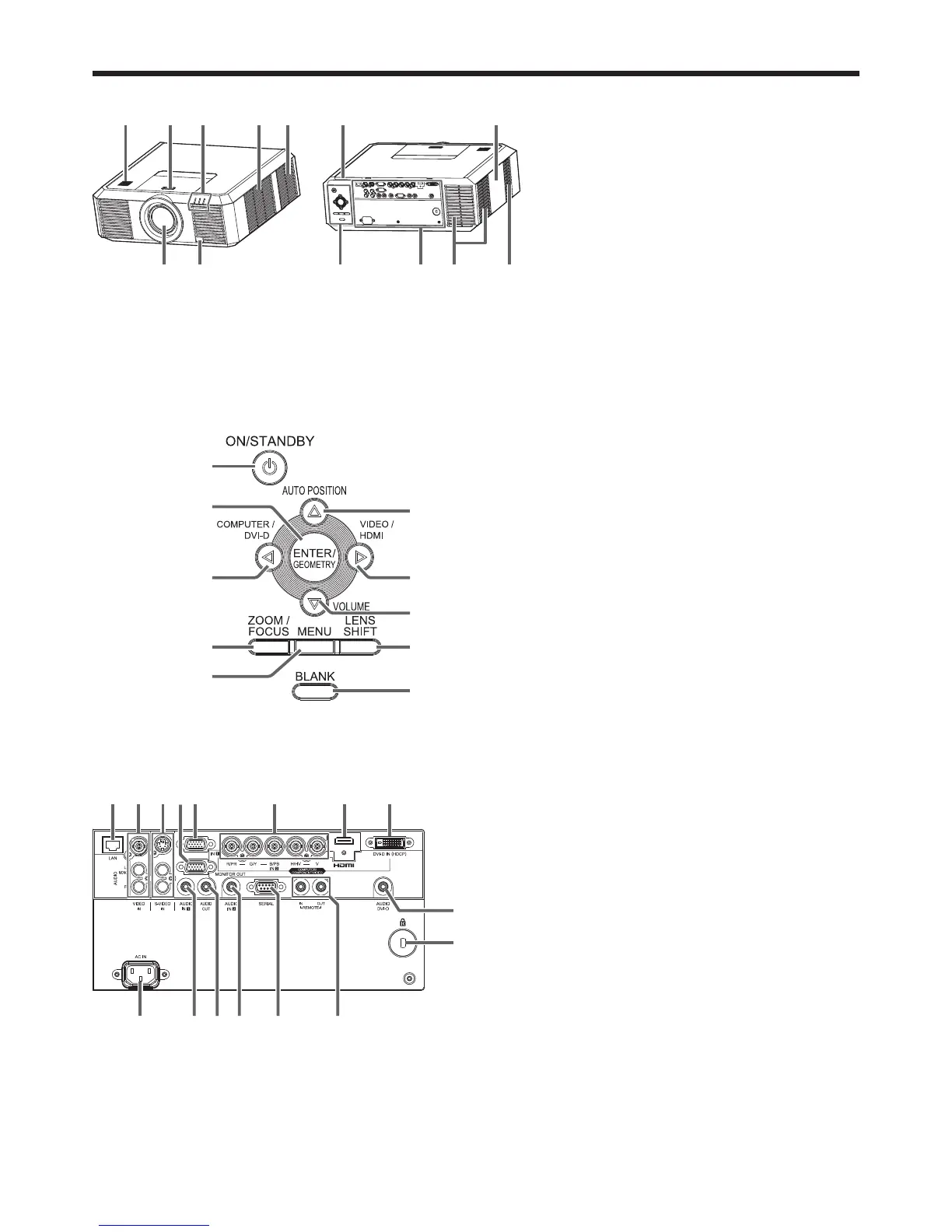

Overview
6 7 11 12
9 10
321 4 5
138
6
7
8
9
10
1
3
4
5
2
1 Speaker
2 Lens release button
3 Indicators
4 Air inlet grille/Filter cover
5 Air inlet grille
6 Lens
7 Remote control sensor (front)
8 Remote control sensor (rear)
9 Control area
10 Terminal panel
11 Air outlet grille
12 Air inlet grille
13 Lamp cover
Control area
1 POWER button (ON/STANDBY)
The status is changed between ON and
STANDBY.
2 ENTER/GEOMETRY button
3 COMPUTER/DVI-D/ button
4 ZOOM/FOCUS button
5 MENU button
6 AUTO POSITION/ button
7 VIDEO/HDMI/ button
8 VOLUME/ button
9 LENS SHIFT button
10 BLANK button
1 23 5 6 7 8
11 14 15 161312
9
10
4
1 LAN terminal
2 VIDEO IN (BNC) and audio input terminals
3 S-VIDEO IN and audio input terminals
4 MONITOR OUT terminal (mini D-SUB 15-pin)
5 COMPUTER/COMPONENT/VIDEO IN 1 terminal
(mini D-SUB 15-pin)
6 COMPUTER/COMPONENT/VIDEO IN 2 terminals
(R/P
R
, G/Y, B/P
B
, H/HV, V) (BNC)
7 HDMI IN terminal (HDMI 19-pin)
8 COMPUTER/COMPONENT/VIDEO DVI-D IN
(HDCP) terminal (DVI-D 24-pin)
9 AUDIO DVI-D terminal (mini jack)
10 Kensington Security Lock Standard connector
11 Power jack
12 AUDIO IN 1 terminal (mini jack)
13 AUDIO OUT terminal (mini jack)
14 AUDIO IN 2 terminal (mini jack)
15 SERIAL terminal (D-SUB 9-pin male)
16 REMOTE IN and OUT terminals
Terminal panel
Preparing your projector (continued)
Caution:
Do not replace the lamp immediately after using the projector
because the lamp would be extremely hot and it may cause
burns.
