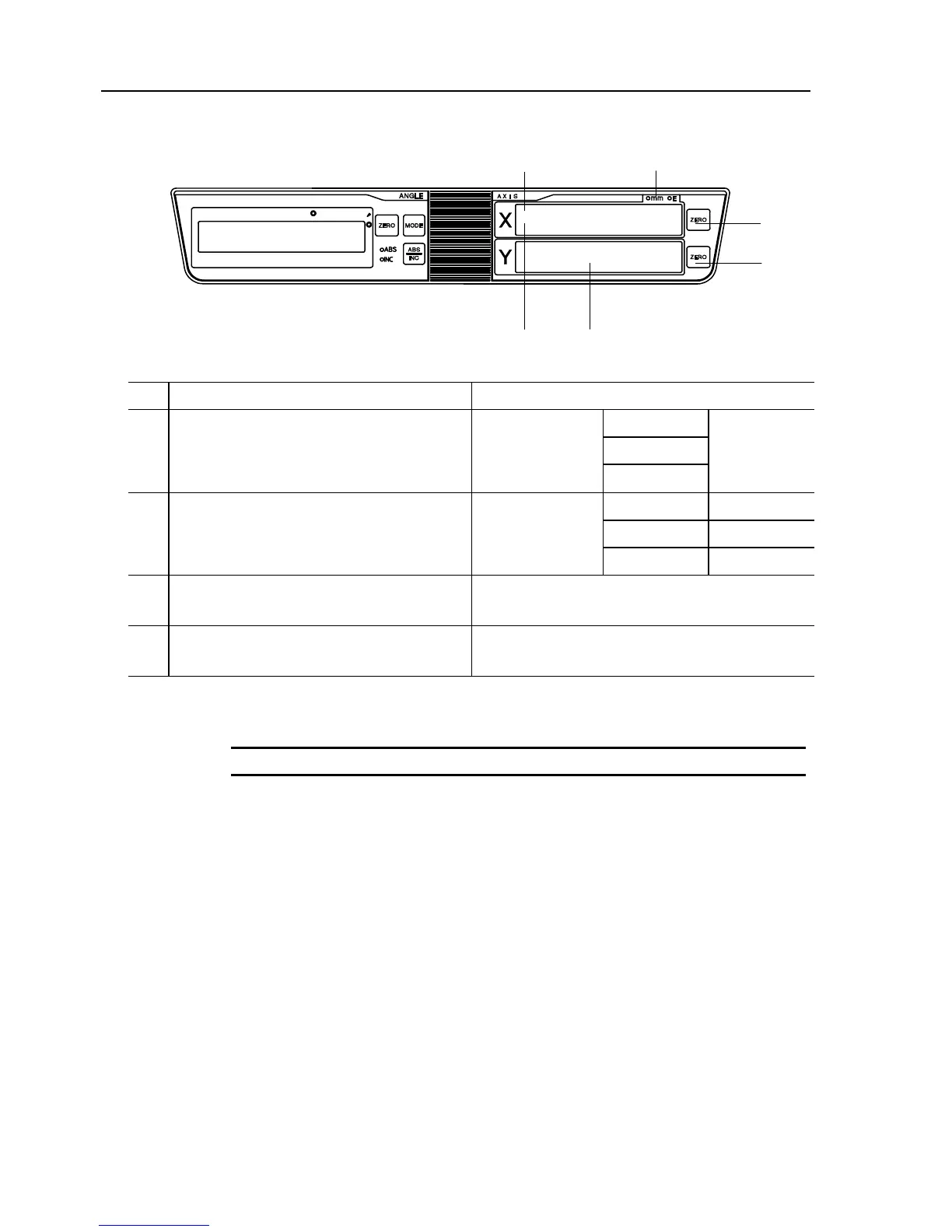

• X, Y-axis counter (PJ-A3005D-50, PJ-A3010F-100, PJ-A3005F-150, PJ-A3010F-200)
1
mm/E indicator or inch/mm indicator The LED for the active unit is lit.
PJ-A3005D
PJ-A3005F
2 X-axis counter Resolution
PJ-A3010F
0.001 mm
PJ-A3005D 0.001 mm
PJ-A3005F 0.001 mm
3 Y-axis counter Resolution
PJ-A3010F 0.001 mm
4 X-axis zero-set switch
Sets the X-axis counter to zero at any X-axis
position of the stage.
5 Y-axis zero-set switch
Sets the Y-axis counter to zero at any Y-axis
position of the stage.
[1]
X, Y-axis counter
[4]
[5]
[2]
[3]
TIP
A value in units of E is displayed by dividing a displacement in units of mm by 25.4.
3 - 8 No.99MBA043A
