By pressing the
[OTHER]
key, the value
X,
is calculated
arid
displayed on the
X-axis display and the value
Y, is calculated and displayed on the Y-axis
display.
X,
and
Y,
are the location of the center of the second circle with
respect to the center of the first cirlce, while
X,
and
Y,
are the
location of the center of the second circle with respect to the
origin
0.
In addition, while INCREMENTAL mode is active, the
last measured point (coordinate) has become the new reference
point.

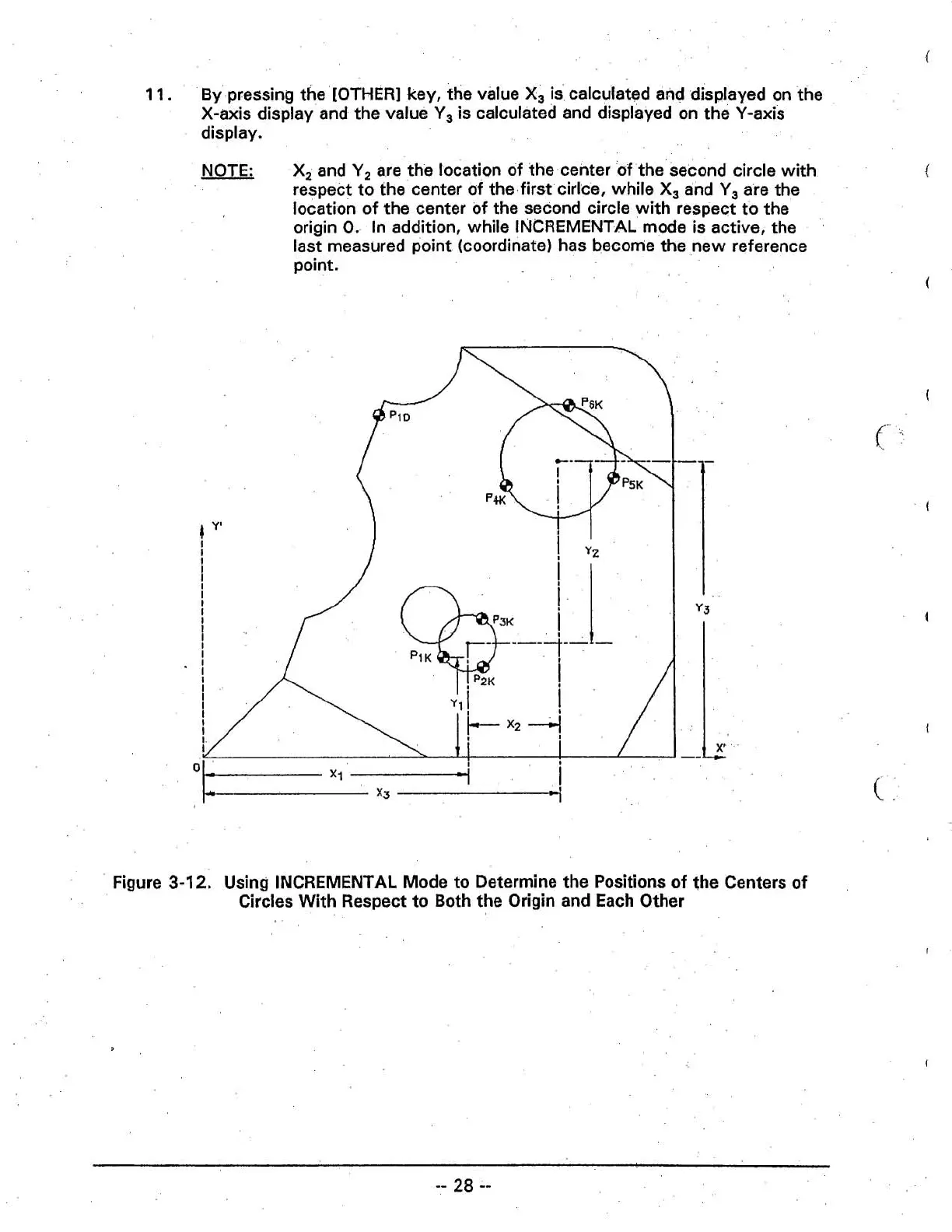

Figure
3-12.
Using INCREMENTAL Mode to Determine the Positions
of
the Centers of
Circles With Respect to Both the Origin and Each Other
To Next Page
