Mitutoyo MICROPAK-2LA - Chapter 4 Specifications; 4.1 General Specifications

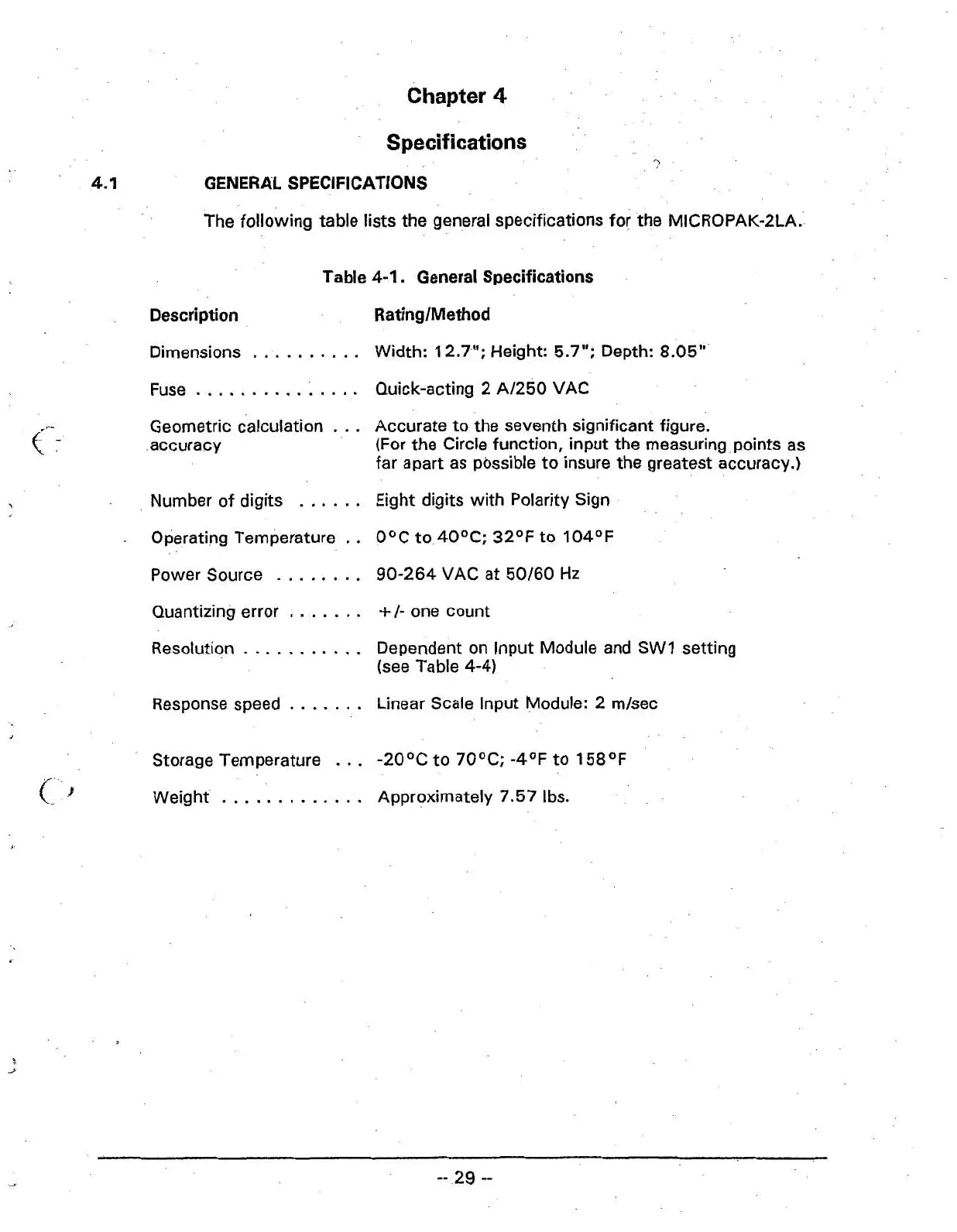

Chapter 4
Specifications
-?
4.1 GENERAL SPECIFICATIONS
The following table lists the general specifications
for the MICROPAK-2LA;
Table 4-1. General Specifications
Description
RatingIMethod
..........
Dimensions
Width: 12.7"; Height: 5.7"; Depth: 8.05"
...............
Fuse Quick-acting 2 ~1250 VAC
...
('--
Geometric calculation
Accurate to the seventh significant figure.
accuracy
(For the Circle function, input the measuring points as
far apart as possible to insure the greatest accuracy.)
......
Number of digits
Eight digits with Polarity Sign
.
Operating Temperature . . O°C to 40°C; 32OF to 104OF
........
Power Source
90-264 VAC at 50160
Hz
.......
Quantizing error +I- one count
...........
Resolution
Dependent on Input Module and
SW1 setting
(see Table 4-4)
.......
Response speed
Linear Scale Input Module: 2 mlsec
...
Storage Temperature
-20°C to 70°C; -4OF to 158OF
.............
Weight Approximately 7.57 Ibs.
