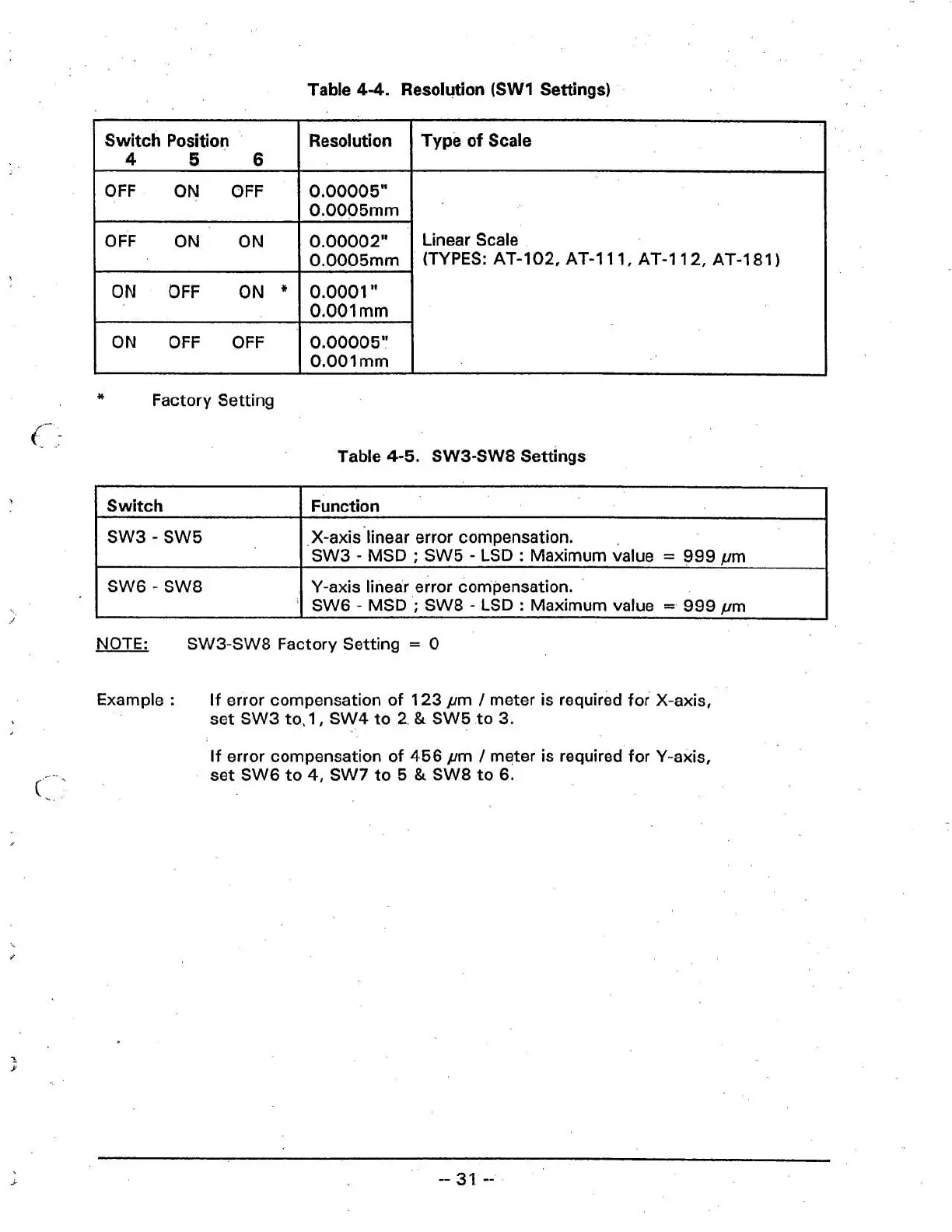

Table
44.
Resolution
(SWI
Settings)
4t
Factory Setting
(-
.:
Table
4-5.
SW3-SW8 settings
Type of Scale
Linear Scale
(TYPES: AT-1 02, AT-1 1 1, AT-1 12, AT-1 81
)
Switch Position
4
5
6
OFF
ON OFF
OFF ON
ON
ON OFF
ON
*
ON OFF OFF
Resolution
0.00005"
0.0005mm
0.00002"
0.0005mm
0.0001"
0.001 mm
0.00005"
0.001 mm
NOTE:
SW3-SW8 Factory Setting
=
0
Switch
SW3
-
SW5
SW6
-
SW8
Example
:
If error compensation of 123 pm
I
meter is required for X-axis,
set SW3
to,1, SW4 to
2
&
SW5 to 3.
Function
X-axis linear error compensation.
SW3
-
MSD
;
SW5
-
LSD
:
Maximum value
=
999
pm
Y-axis linear error compensation.
SW6
-
MSD
;
SW8
-
LSD
:
Maximum value
=
999
pm
If error compensation of 456 pm
I
meter is required for Y-axis,
set SW6 to 4,
SW7
to 5
&
SW8 to 6.
