µ-Dimension Glow DSP8 - Input Harness Details; Input Harness Pin Assignments

Page 9
1
8
16
1
2
3
4
5
6

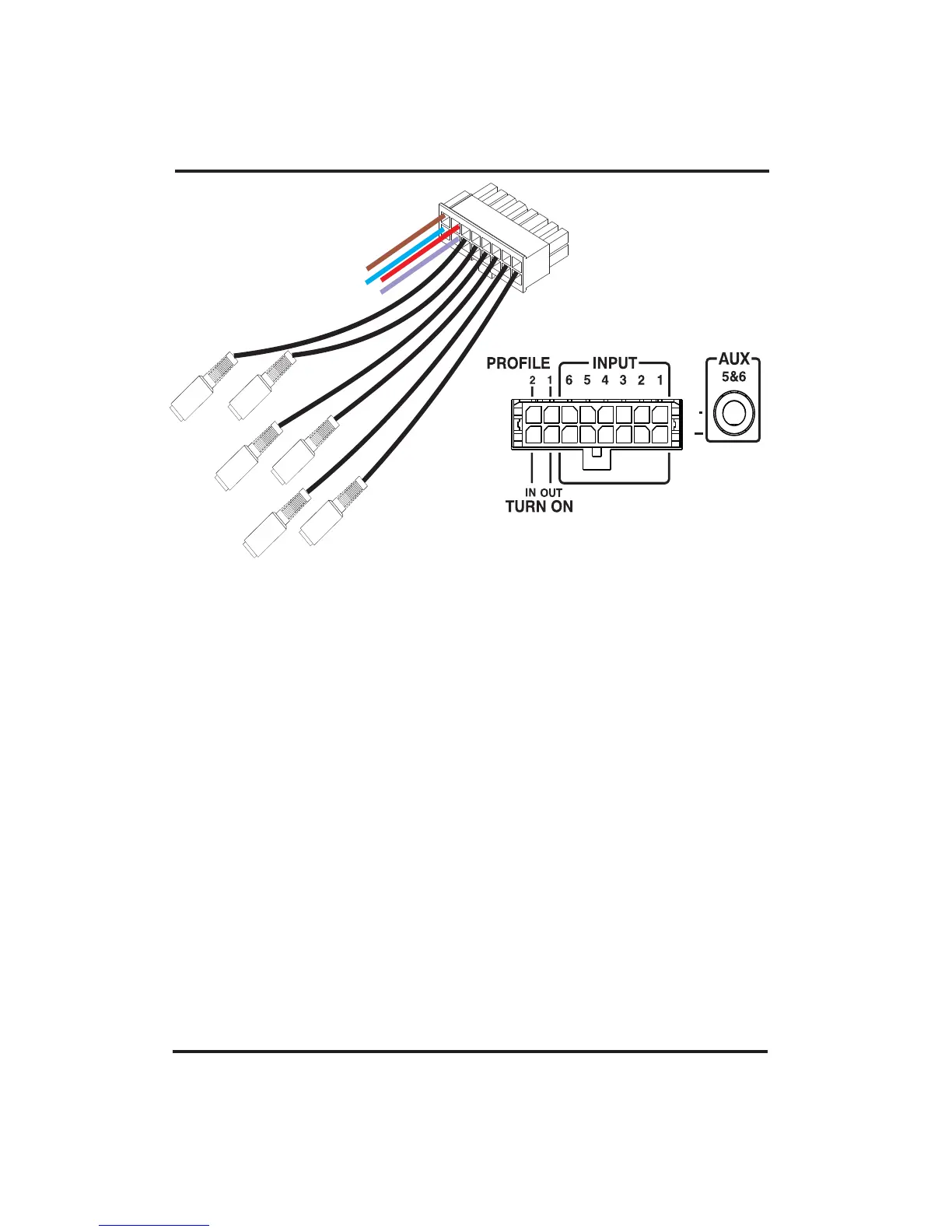

DSP8 Input Harness
Pin 1 - (Brown Wire) Profile 2 lead wire (NOT USED)
Pin 2 - (Red Wire) Profile 1 Lead
Pin 3 - Channel 6 RCA +
Pin 4 - Channel 5 RCA +
Pin 5- Channel 4 RCA +
Pin 6- Channel 3 RCA +
Pin 7- Channel 2 RCA +
Pin 8- Channel 1 RCA +
Pin 9- (Blue Wire) Turn on input lead
Pin 10- (Violet Wire) Turn on output lead
Pin 11- Channel 6 RCA +
Pin 12- Channel 5 RCA +
Pin 13- Channel 4 RCA +
Pin 14- Channel 3 RCA +
Pin 15- Channel 2 RCA +
Pin 16- Channel 1 RCA +
