Page 10
1
9
18
Pin 1- (Grey) Channel 8 +
Pin 2- (Violet) Channel 7 +
Pin 3- (Blue) Channel 6 +
Pin 4- (Green) Channel 5 +
Pin 5- (Yellow) Channel 4 +
Pin 6- (Orange) Channel 3 +
Pin 7- (Red) Channel 2 +
Pin 8- (Brown) Channel 1 +
Pin 9- Balanced RCA Output RCA +
Pin 10- (Grey w/Black Stripe) Channel 8 -
Pin 11- (Violet w/Black Stripe) Channel 7 -
Pin 12- (Blue w/Black Stripe) Channel 6 -
Pin 13- (Green w/Black Stripe) Channel 5 -
Pin 14- (Yellow w/Black Stripe) Channel 4 -
Pin 15- (Orange w/Black Stripe) Channel 3 -
Pin 16- (Red w/Black Stripe) Channel 2 -
Pin 17- (Brown w/Black Stripe) Channel 1 -
Pin 18- Balanced RCA Output RCA Shield

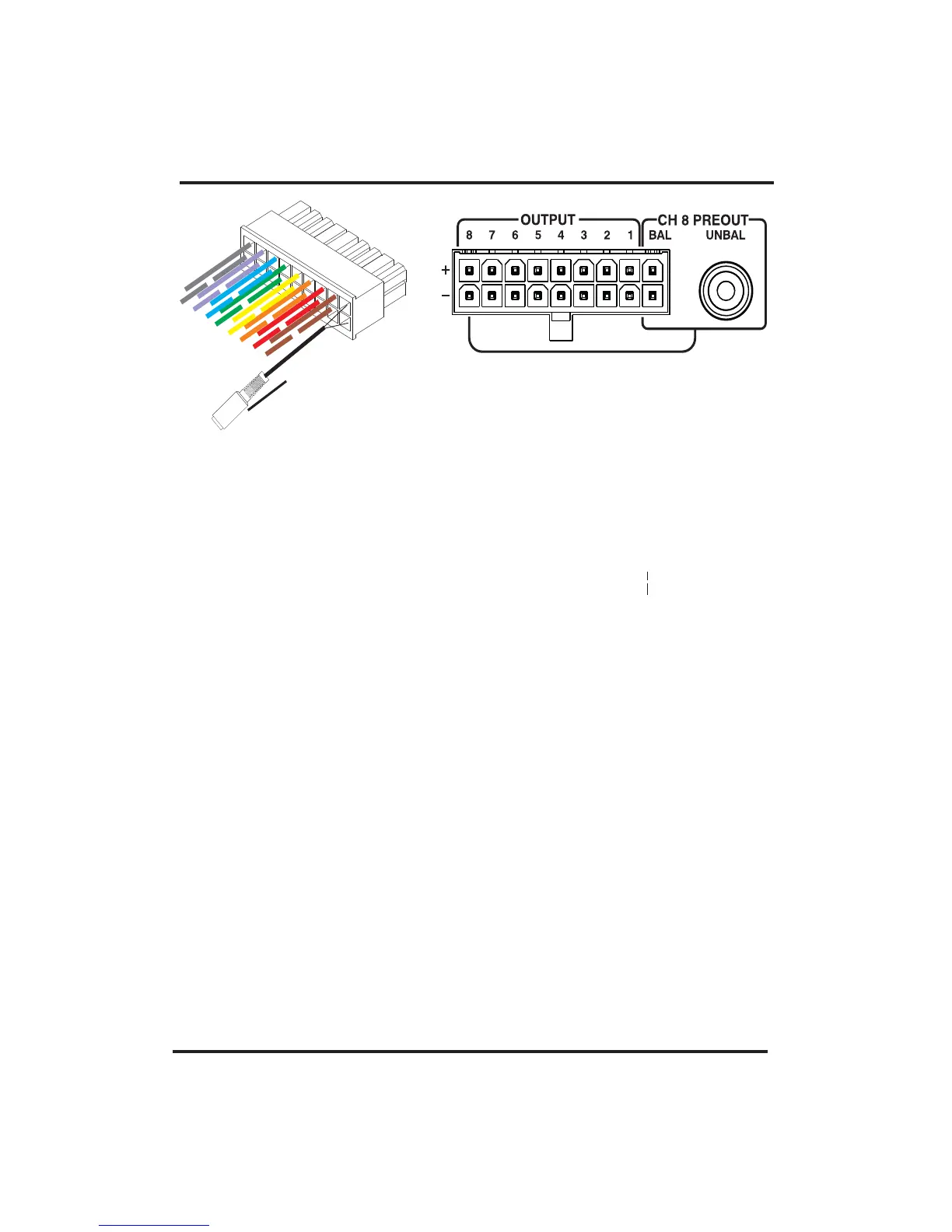

DSP8 Output Speaker Harness Port
Balanced RCA Out- For use on most OEM subwoofer amplifiers
Unbalanced RCA Out - For use on aftermarket subwoofer amplifiers
(Channel 8 output group is limited to one function. Using balanced
and unbalanced outputs and/or with/without Channel 8 speaker
output can cause damage to your DSP8 and will not be covered
under warranty)
Balanced RCA Output
