Internal V.U. Meter
- Used to verify mixer configu-
ration and level settings.
- Confirms channel assignment
and signal levels into the
crossover section of the DSP
- Monitors dynamic signal
levels post DSP going into the
amplifier stage of the DSP8
- Warns user of possible
speaker damaging distortion
levels by indication of clipped
and/or distorted signals as a
result of settings in excess
within the DSP
- Confirms and verifies signal
output on assigned channels.
- actively reports signal output
levels and with color coded
graphs identifying distorted
signal coming out of the
amplifier stage of the DSP8
- Can be used as a diagnostic
tool to identify damaged
speakers with confirmed
channel output.

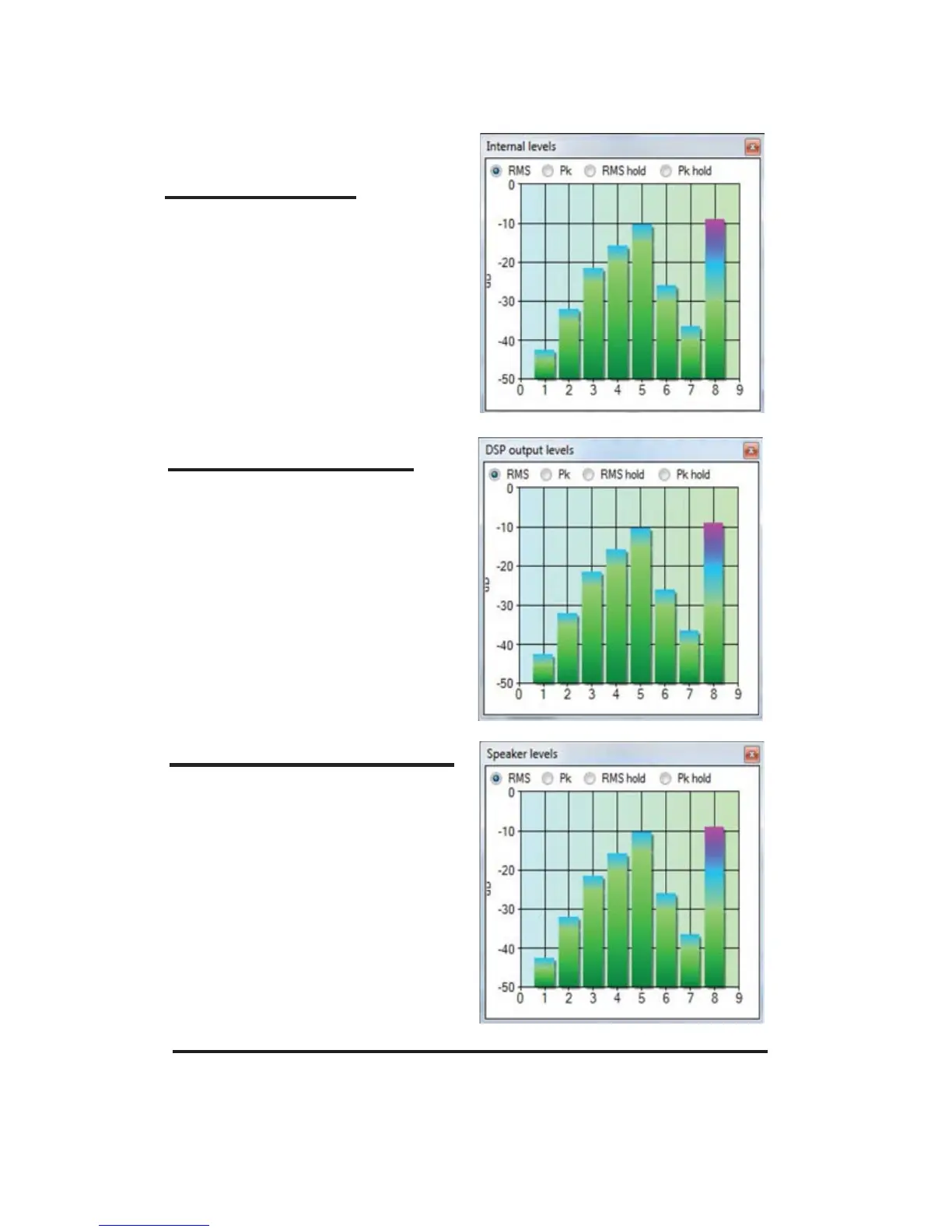

DSP Output V.U. Meter
Speaker Output V.U. Meter
