OPERATION

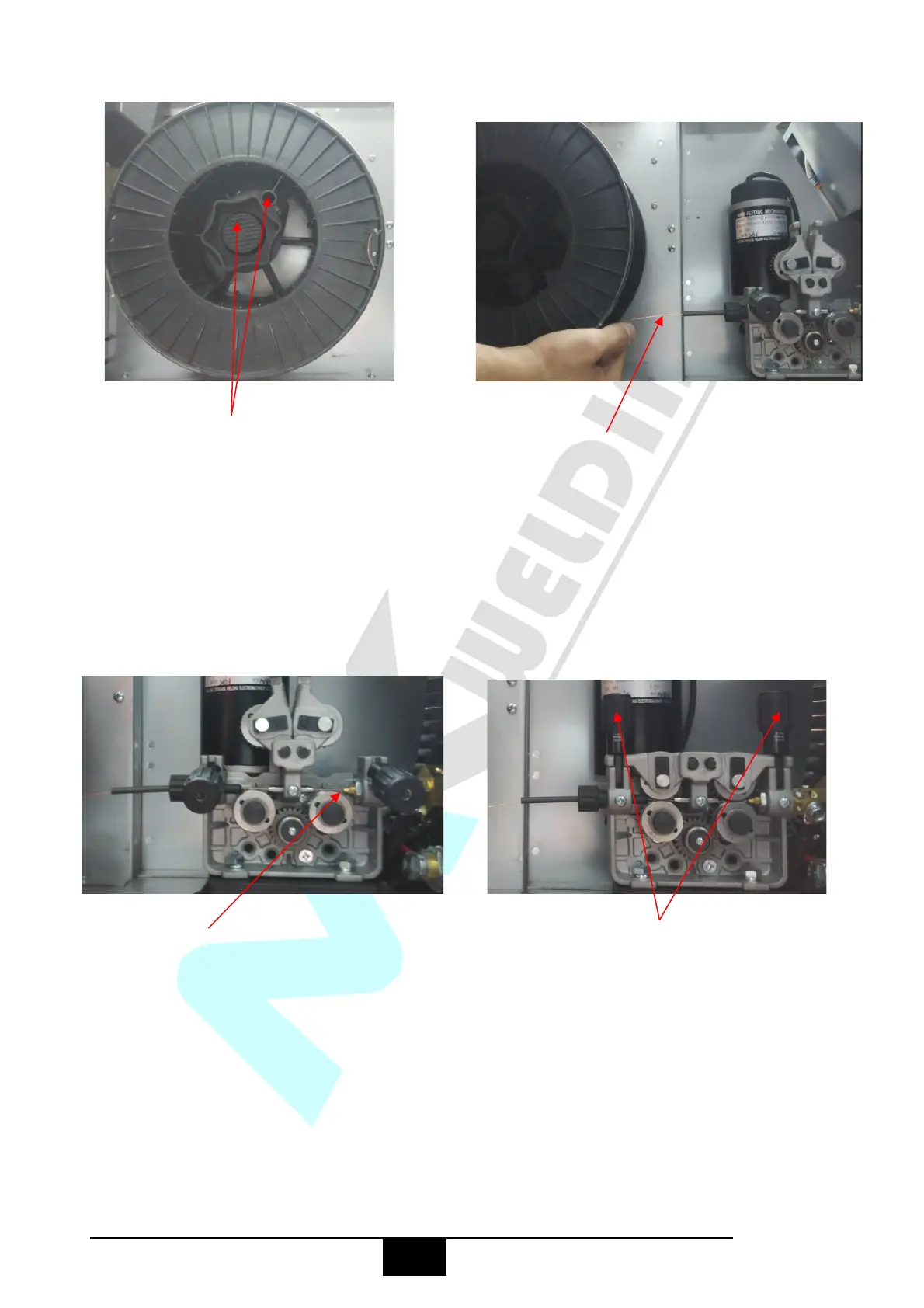

(3) Fit the wire spool onto the spool holder (4) Snip the wire carefully, be sure to hold
fitting the locating pin into the location holeon the wire to prevent the spool uncoiling.
the spool. Replace the spool retaining nut tightly. Carefully feed the wire into the inlet
guide tube of the wire feed unit.
(5) Feed the wire through the drive roller (6) Lock down the top pressure roller and apply
and into the outlet guide tube of the wire a medium amount of pressure us-ing the tension
feeder. adjustment knob.
