OPERATION
60
EN
(8) Replace the front end parts. (10) Install a U groove drive roller of the
size for the diameter wire being used.

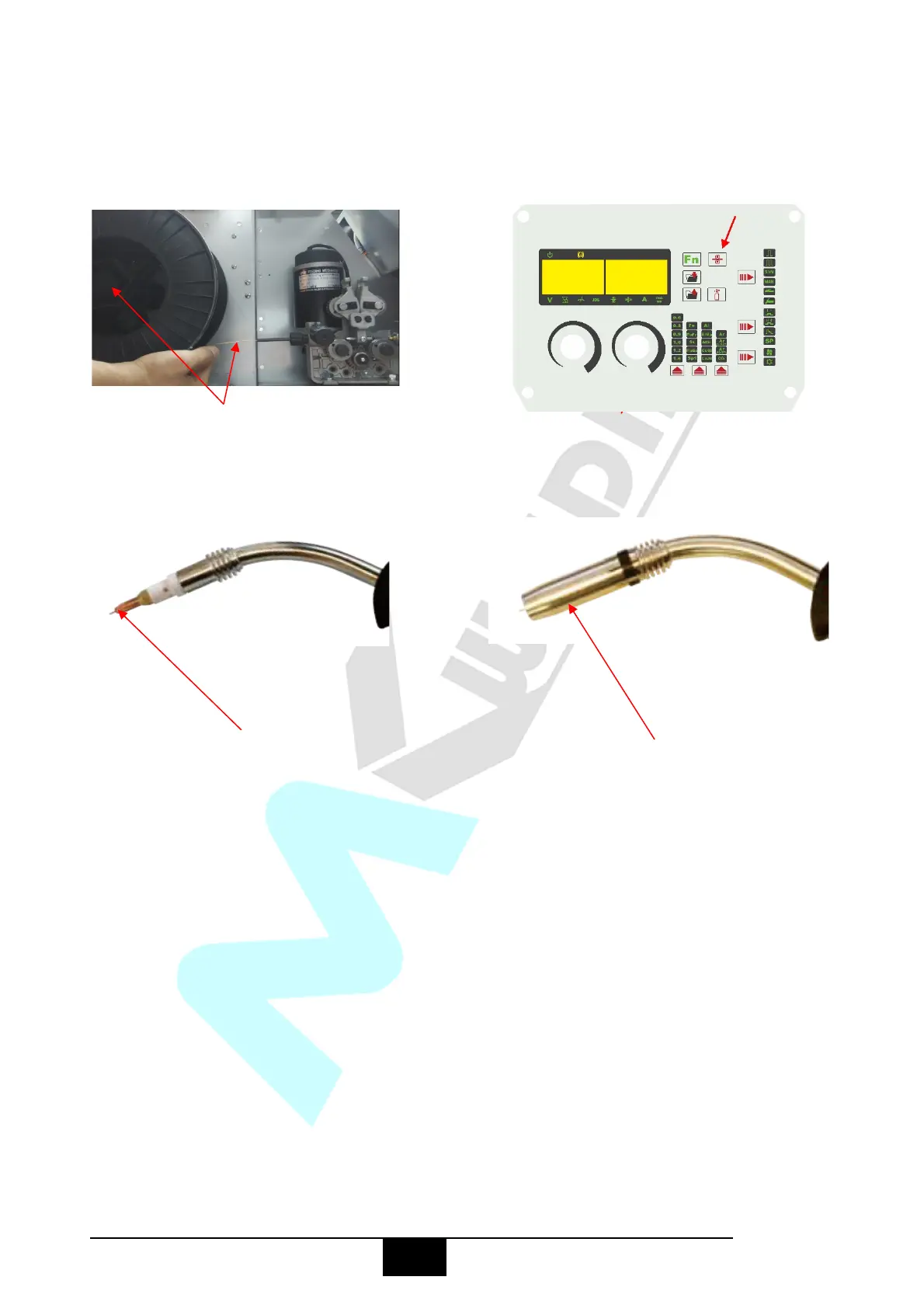

(11) Place aluminium wire onto spool holder. (12) Press and hold the manual wire button
Feed the wire through the inlet guide tube on to feed the wire down the torch cable
to the drive roller. through to the torch head.
(13) Fit an Aluminium contact tip of the correct (14) Fit the remaining front end parts to
size to match the wire diameter being used. the torch neck ready for welding.
§4.3.8 Set up installation for Spool Gun
(1) Insert the earth cable plug into the Negative socket on the front of the machine and
tighten it.
(2) Connect the Spool Gun to the Mig torch connection socket on the front panel of the wire
feeder, and tighten it.
IMPORTANT : When connecting the torch be sure to tighten the connection. A loose
connection can result in the connector arcing and damaging the machine and gun connector.
(3) Connect the Spool Gun control cable to the multipin receptacle on the front panel .
(4) Connect the MIG power connection lead to the positive welding power output socket.
(5) Connect the gas regulator to the Gas Cylinder and connect the gas line to the Gas
