OPERATION
Regulator. Check for Leaks!
(6) Connect the gas line to gas connector on the rear panel. Check for Leaks!
(7) Connect the power cable of welding machine with the output switch in electric box on
site.
(8) Select Spool Gun using the Function button and Adjustment knobs.
(9) Take the Spool Gun and remove the spool cover .
(10) Place the Wire Spool onto the Spool Holder - Hold and snip the wire from the spool
being sure to hold the wire to prevent rapid uncoiling.
(11) Carefully feed the wire through the drive roller into the inlet guide tube. Swing back and
clip down the wire tension swing arm.
(12) Pull the trigger to drive the wire through the neck until it exits the contact tip holder
(13) Close the wire feed housing cover, ready for welding.
(14) Carefully open the gas cylinder valve and set the required gas flow rate.
(15) Set the welding parameters using the knobs

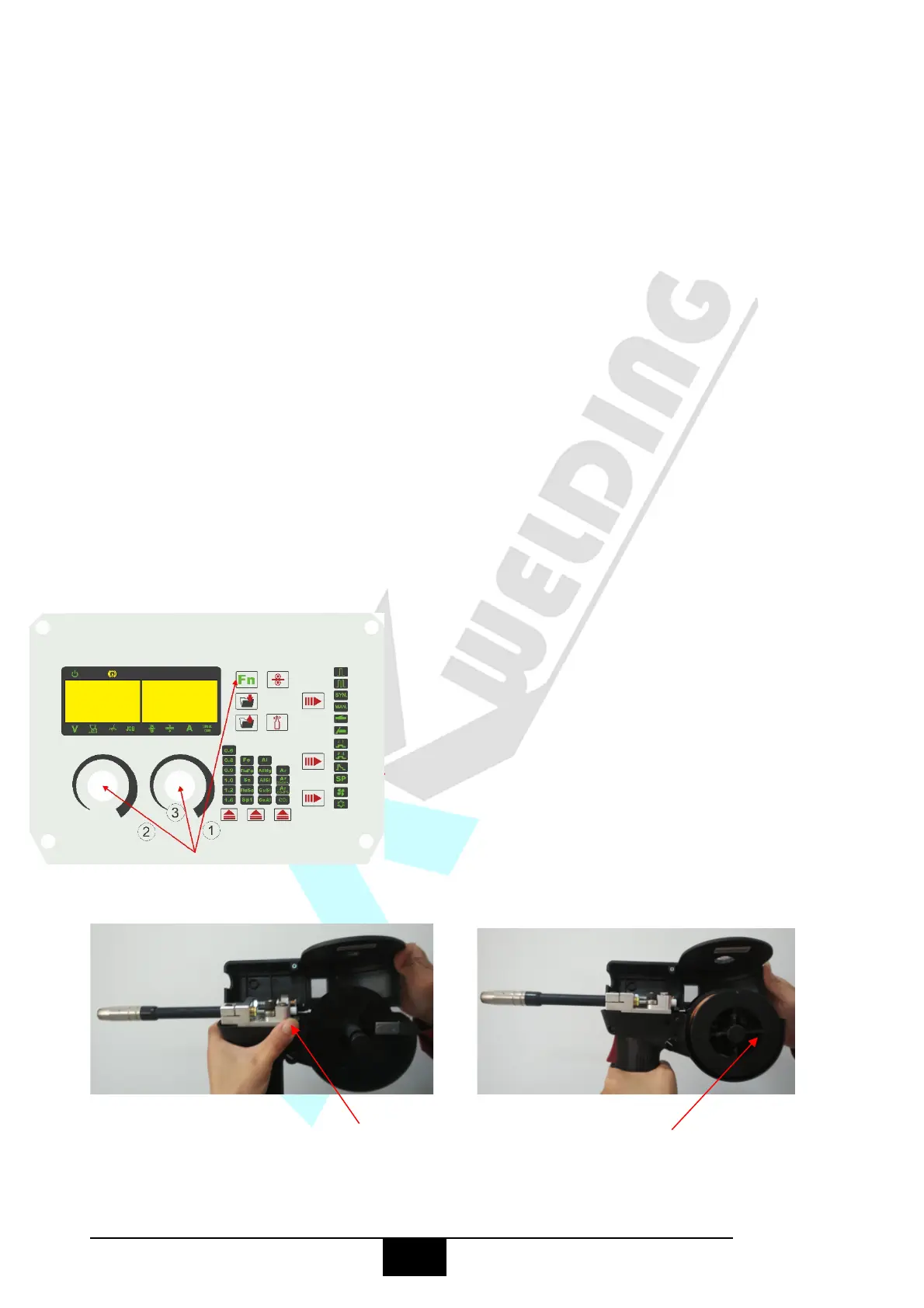

(9) Remove the spool cover when press the (10) Place a spool of wire onto the Spool
button and lifting off the cover holder.
(8) Select Spool Gun using the
Function key and Adjustment
knobs
