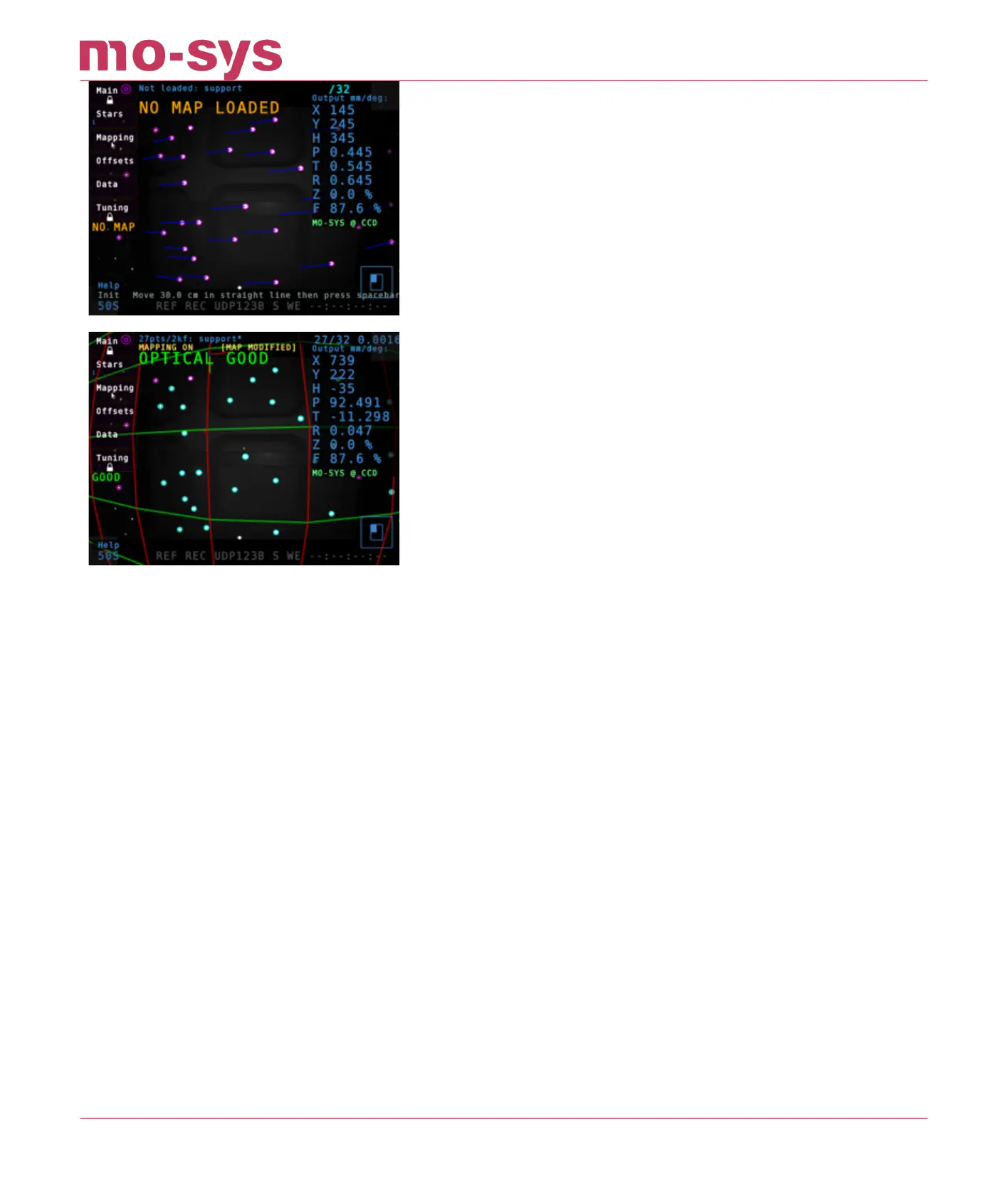

If successful, a green/red grid should appear on the screen, which indicates that you have an
initial map. The grid line spacing of 1m also allows you to verify your map after it is fully
calibrated.
If the grid appears too small and the output values for X, Y and H are too high, press R and Y
and repeat from step 5.
7.2 Capturing Stars
You should now have a basic tracking map. This will be improved as more stars are discovered
and captured.
To obtain optimum triangulation, walk around holding the sensor, pointing upwards, while
moving up and down in height which assists detection through viewing stars from di󰍒erent
angles.
