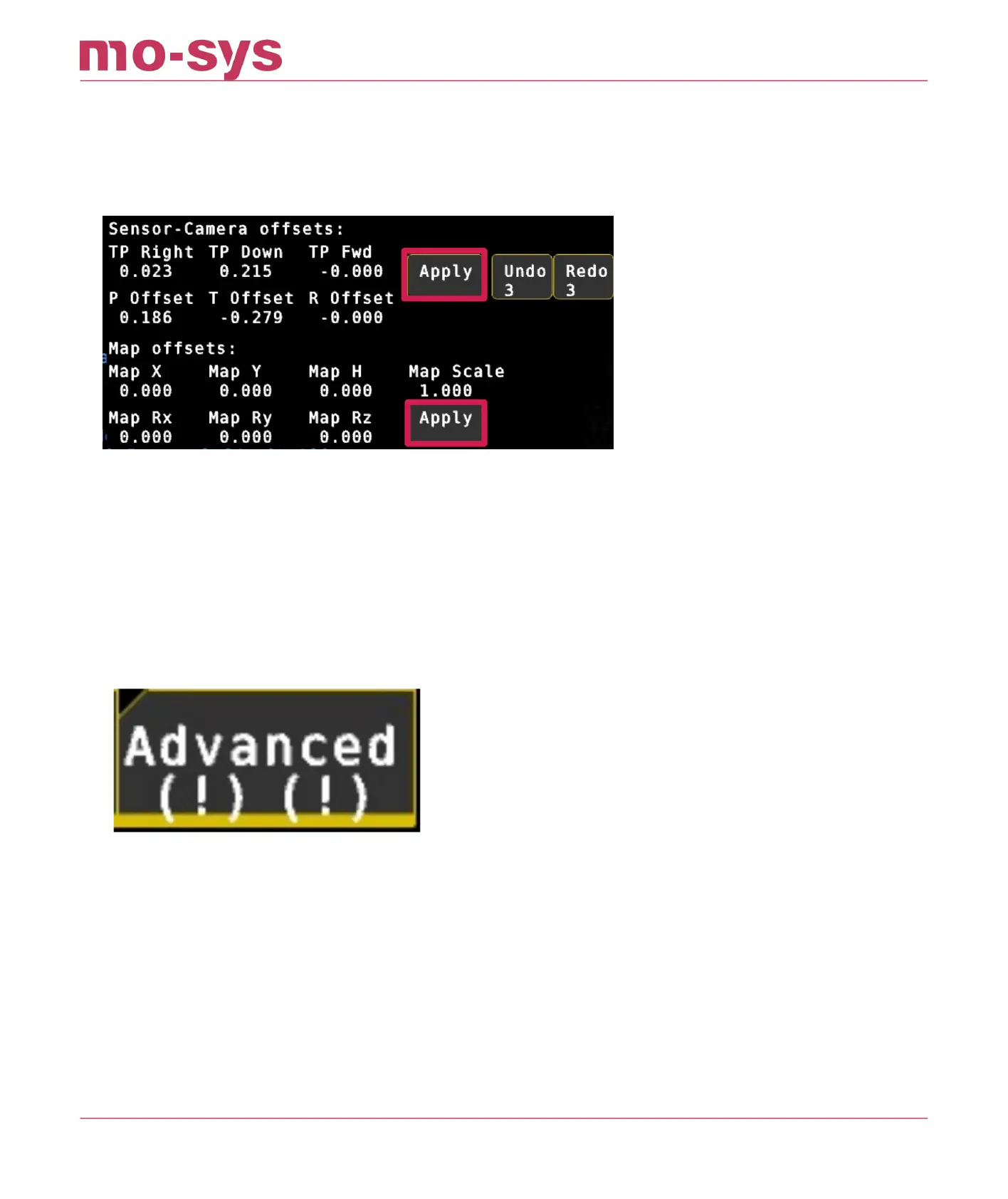

If you are happy with the results in the Veri󰍓er, save and load the map.

Unlike the camera o󰍒sets, the map needs to be manually saved when the o󰍒sets have been

applied. You will see the usual “Map Modi󰍓ed” and * indicator show up in the GUI if the map has

unsaved changes.

12.6 Verifying Points

After having calibrated and applied the CCD and map o󰍒sets you can verify the points and the

accuracy of the result with the Veri󰍓er tool.

Make sure you don’t have any o󰍒sets in O󰍒sets → Advanced in Set X, Y, H, Rz, Rx, Ry. Indicated

by exclamation marks.

Go to O󰍒sets → Veri󰍓er.

Look at any of your reference points. Fully zoomed in and using cross hair.

In the Veri󰍓er status, you can see “Looking at x,y (m)” values displayed. These are the

calculated positions in meters for the point you are looking at

The error is proportionate and can vary depending on studio size but should not be higher than

2cm (in the example below the 0 point on the 󰍔oor is out by 2mm in X and 4mm in Y).
