2.1.4 3M VHB Surface Cleaner
The 3M VHB Surface Cleaner supplied with Mobileye 5 Cleans and degreases the
Windshield surface to ensure optimum adhesion for 3M VHB Tape provided with the
Mobileye 5 Main Unit.

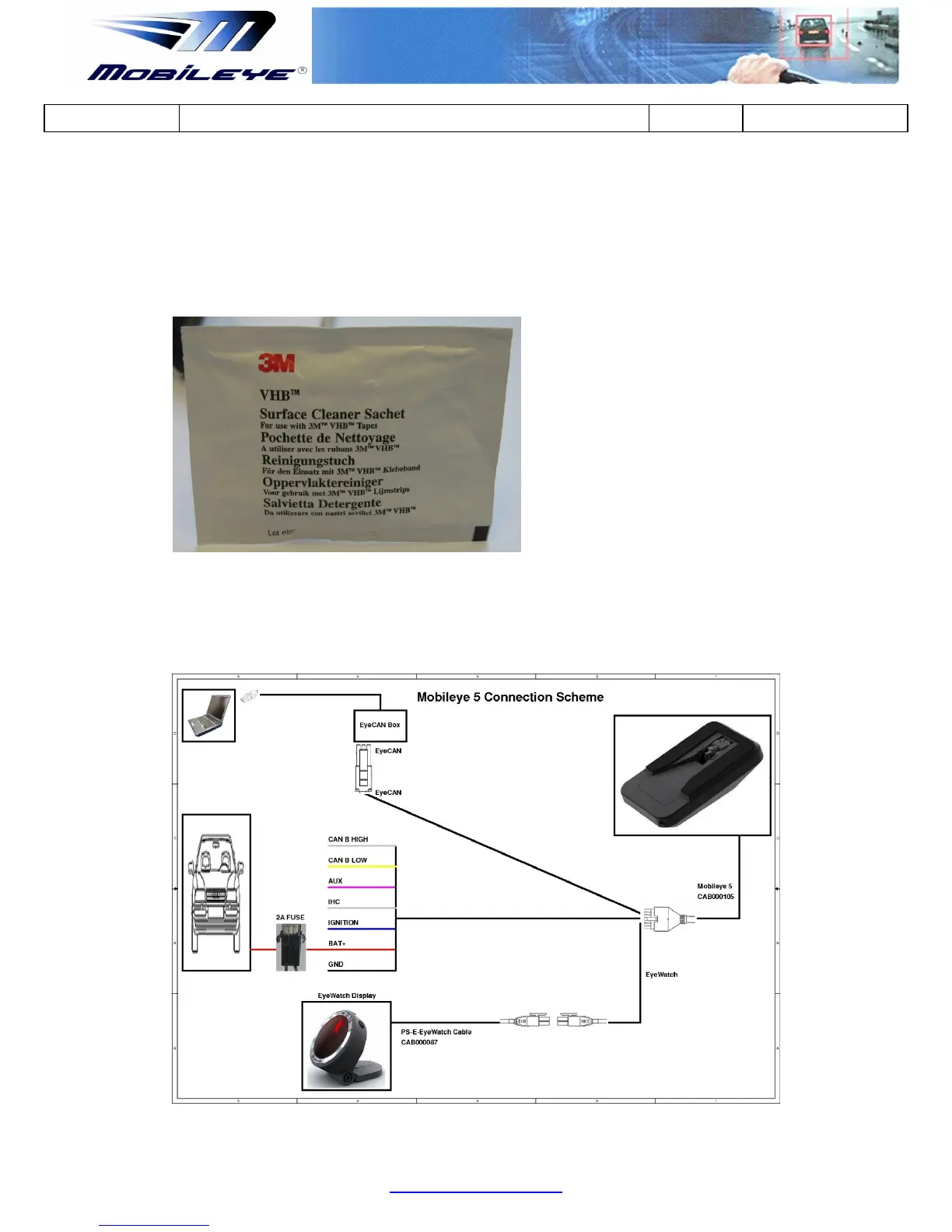

Figure 4: 3M VHB Surface Cleaner
2.1.5 Mobileye 5 Connection Scheme
Figure 5: Mobileye 5 connection scheme with EyeCAN
