Delivered Parts and Dimensions
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • sales@mobotix.com

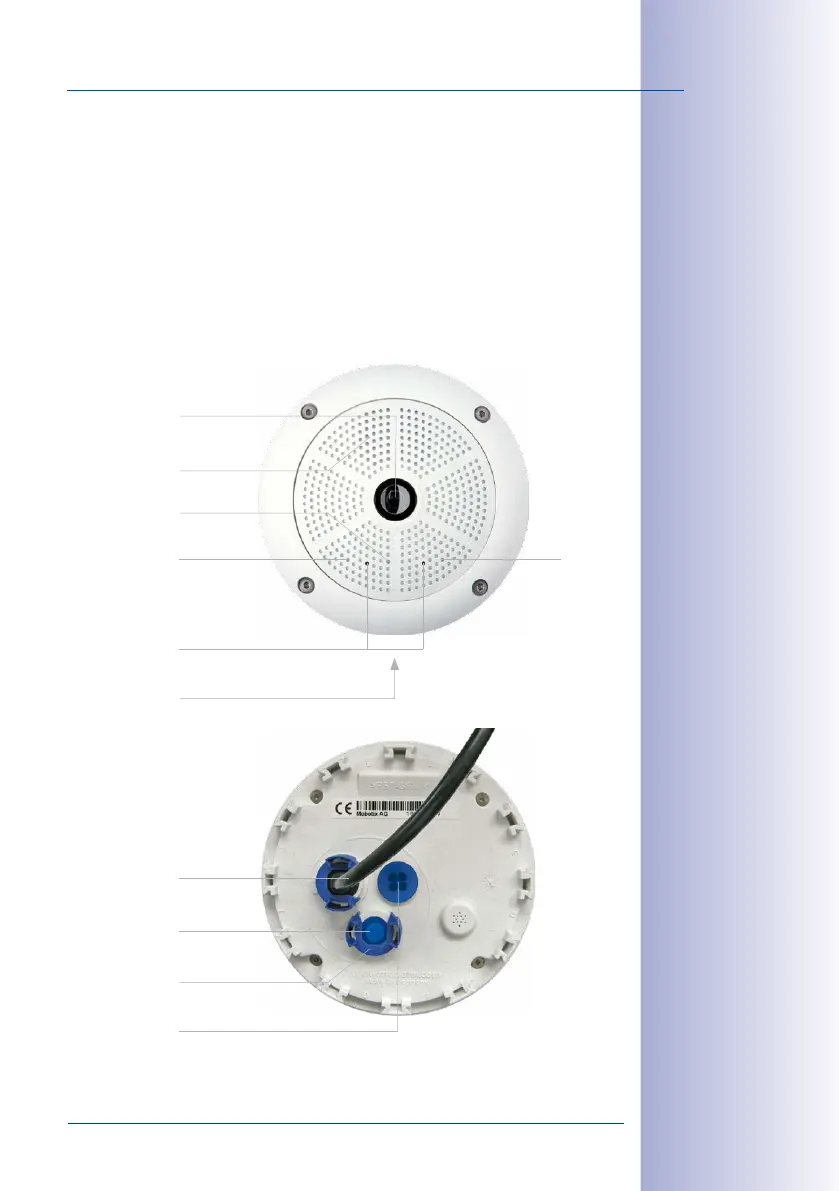

Camera Housing and Connectors
The MOBOTIX Q25 consists of the camera housing (motherboard and lens), the outer
shell and the mounting ring.
Connections
• NET (Ethernet network incl. PoE power supply)
• MiniUSB (e.g. for ExtIO)
• Slot for MicroSD card
Lens unit
Speaker
Microphone
(only Q25-Sec)
LEDs
Slot for MicroSD card
(not externally accessible)
MiniUSB (e.g. ExtIO)
Bayonet catch
Network connector
L key
MxBus (for expansion
modules)
R key
