Selecting an Appropriate Camera Position
The Q25 is primarily suited to providing an excellent overview, and less suitable for more
exact details. For active operation, the camera should be mounted at a (out of direct reach)
height ranging from 2.5 to 3.5 m. People, for example, may be identified very well at
distances of up to 1.5m, and with sucient detail at up to 3m. Objects can be recognized
even at distances of 5 m and more from the camera. During installation, ensure that the
camera is focused on the most important areas of the room as directly as possible, in
order to provide the desired level of detail recognition. For wall installation, use of the 10°
On-Wall Set is ideal in many cases.
Hint: The Q25 should always be installed on a wall such that the arrow on the camera
housing marked OBEN / TOP points towards the ceiling of the room.

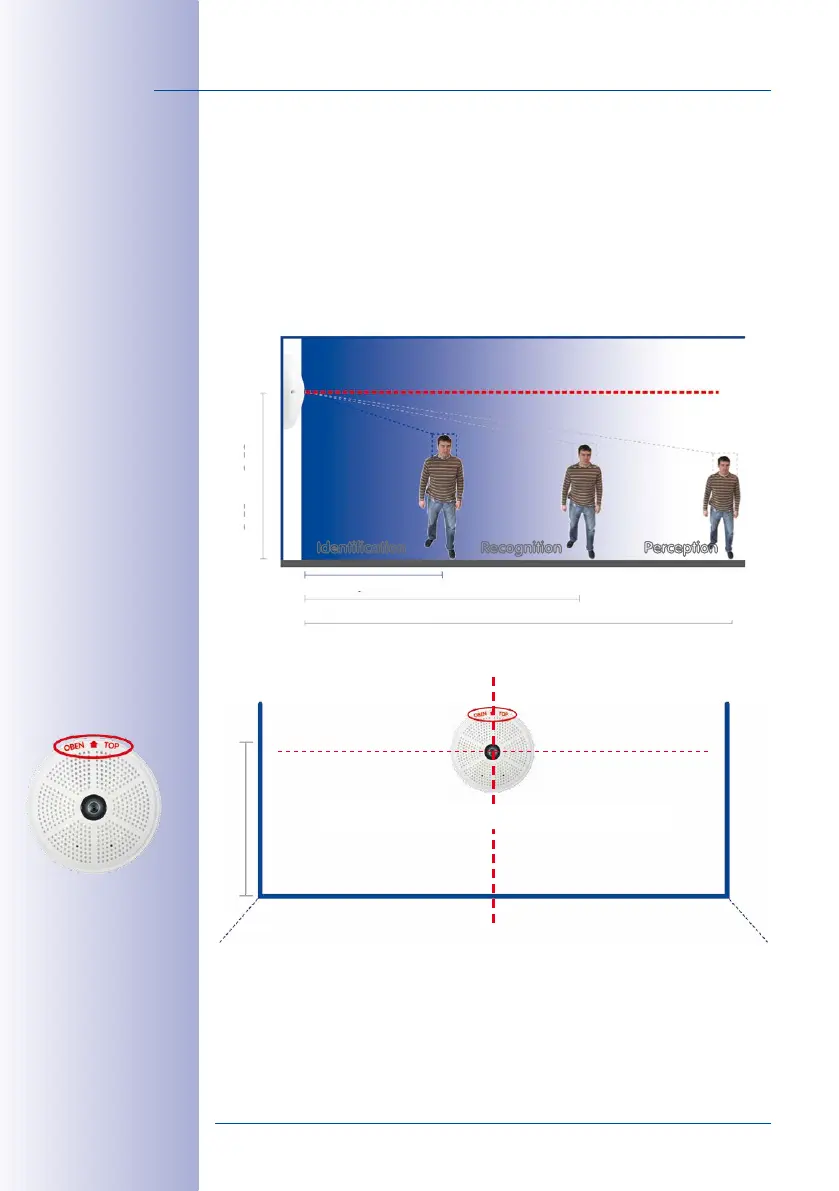

1.50m/5ft
3m/10ft
2.5 to 3.5m/8 to 11.5ft
5m/16.4ft
Identification Recognition Perception
Camera focus (best image quality) - standard installation
2.5 to 3.5m/8 to 11.5ft
Mounting at the center of the wall
Wall Mount: Mounting
the camera at the
center of the wall
The OBEN / TOP label
is only visible when the
outer shell is removed
