Mocka Parker Buffet - Step 9: Install Shelf Panels; Step 10: Attach Doors

9
10

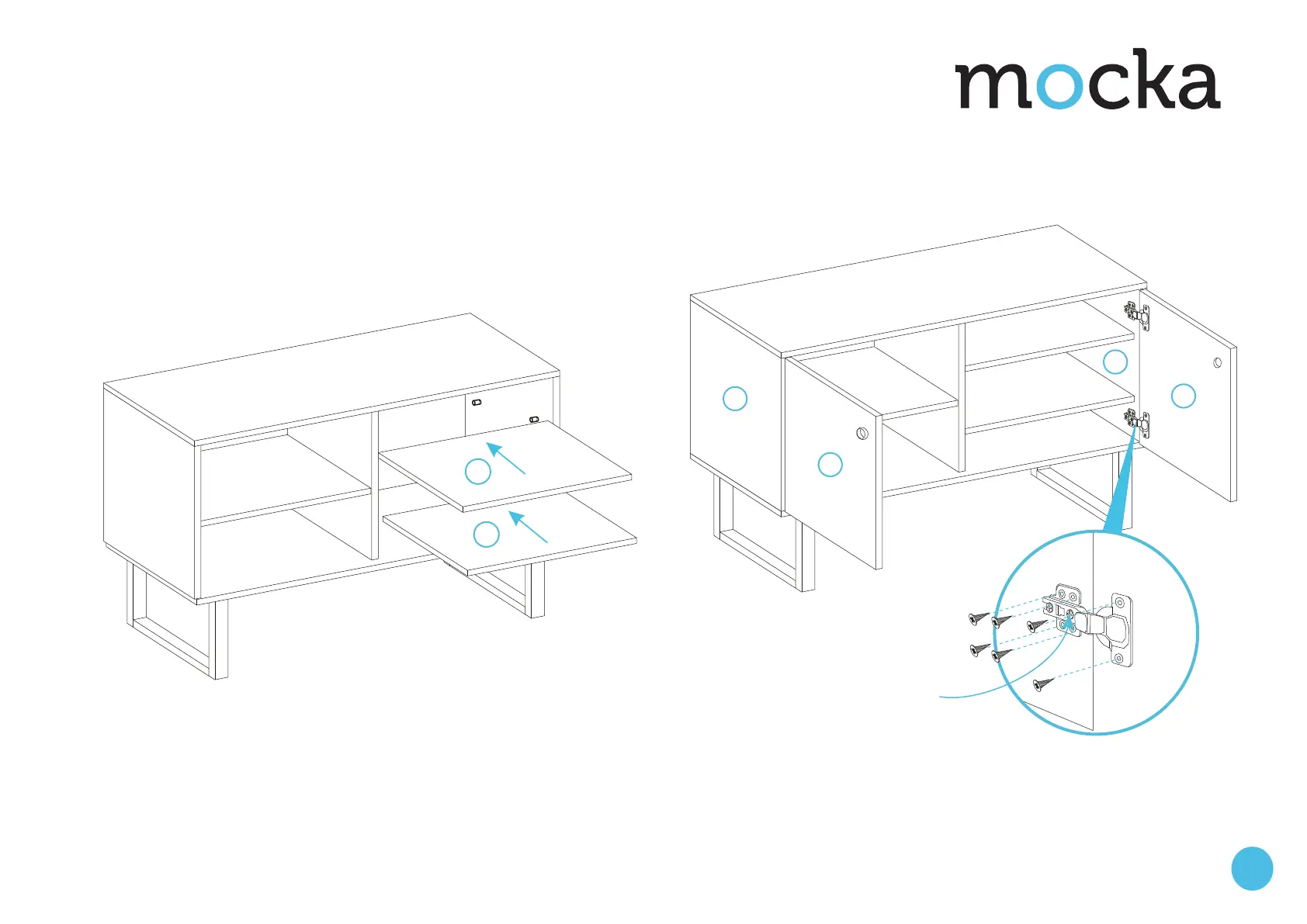

Insert the shelf panels [10], resting them on top of the shelf plugs (D).
10
10
Attach door panel [8] to panel [3] using 1x hinge (H) and secure with 6x
14mm screws (C1). Attach door panel [9] to panel [4] using 1x hinge
(G) and secure with 6x 14mm screws (C1). Tighten with a screwdriver.
C1
9
8
4
3
G
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting ush.
Parker Buffet
Assembly Instructions
6
