Insert the shelf panels [10], resting them on top of the shelf plugs (D).
10
10
Attach door panel [8] to panel [3] using 1x hinge (H) and secure with 6x
14mm screws (C1). Attach door panel [9] to panel [4] using 1x hinge
(G) and secure with 6x 14mm screws (C1). Tighten with a screwdriver.
C1
9
8
4
3
G
NOTE: If the doors are uneven or
there is a gap in the middle, loosen
or tighten the screw on the door
hinge until they are sitting ush.
11
12
Secure panel [7] against the internal panels [5] and [6] as shown using
4x nails (H). Attach 10x wedges to panel [8] using 10x 18mm screws (C).
Tighten with a screwdriver. Once assembled lift furniture into position, do
not drag.
7
E C2
H
E
E
H
E
H
E
H
E
E
E
E
E
E
J
K
L

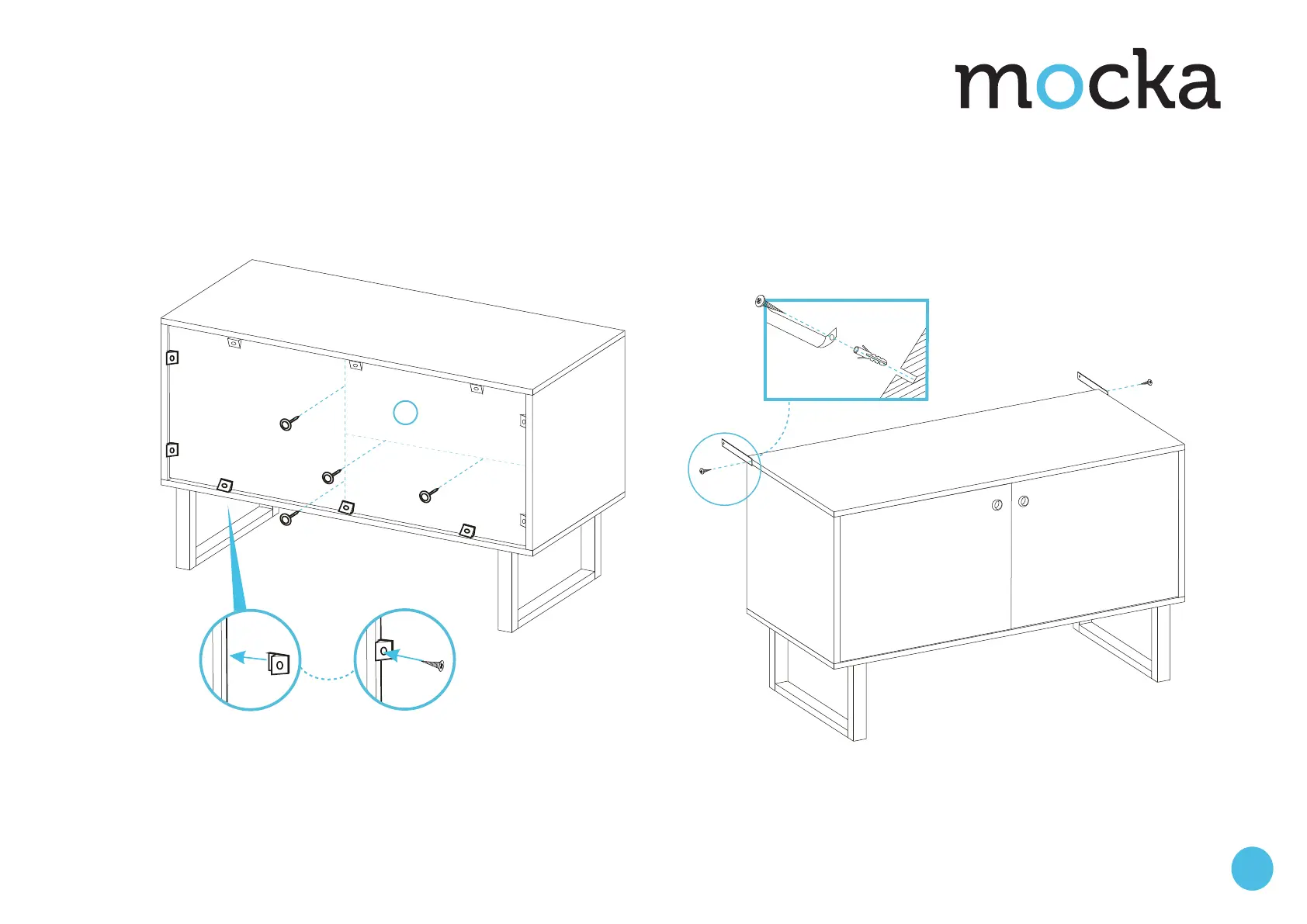

Move the unit into the desired location up against a wall. Attach 2x
wall straps (L) to the back sides of panel [1] and secure with 2x 14mm
screws (J). Fasten to wall using 2x wall anchors (K) and 2x wall
screws (I). Tighten with a screwdriver. Ensure unit is balanced and
steady before use. You’re done, enjoy!
Safety Straps
I
J
Parker Buffet
Assembly Instructions
