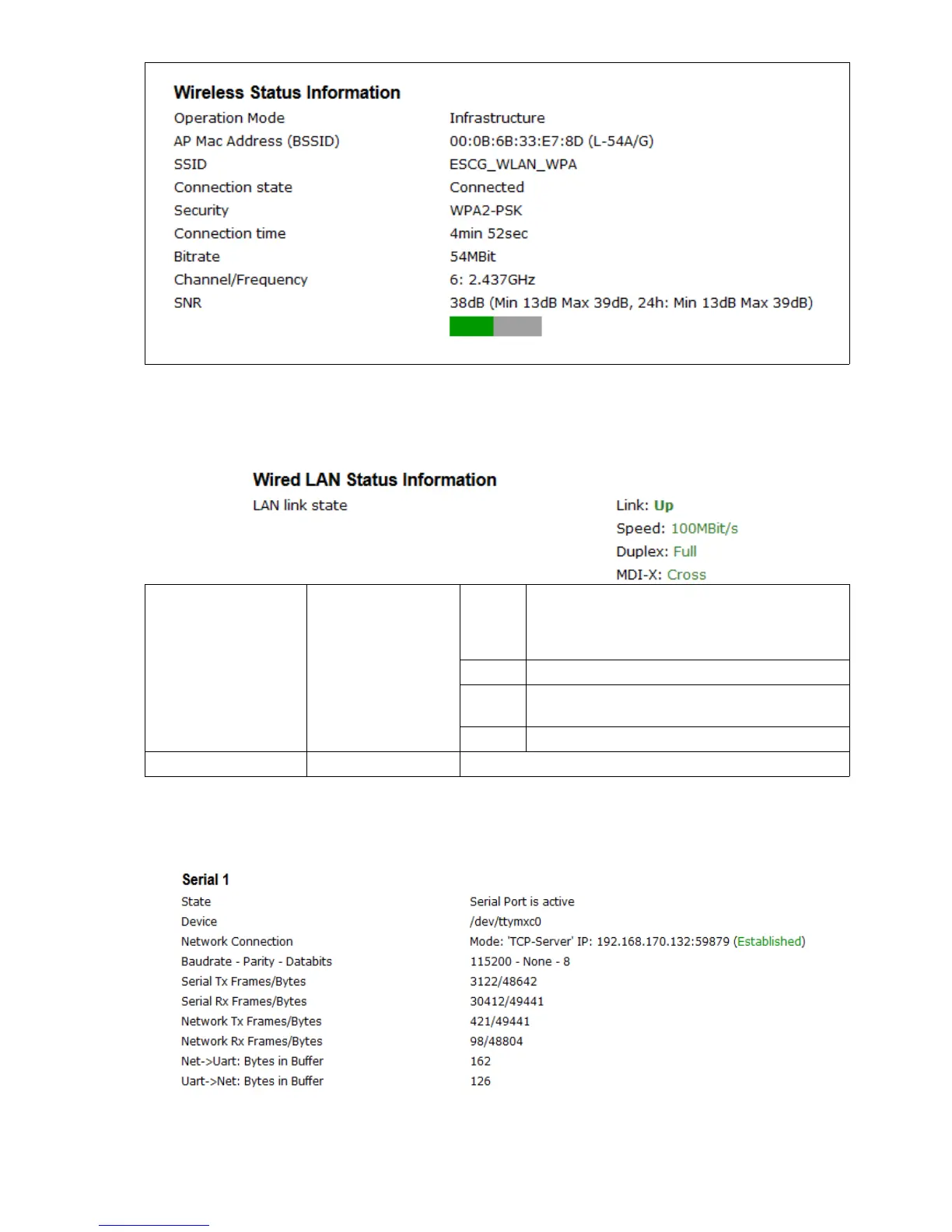

3.1.3 Wired LAN Status Information
This section shows the current status of the LAN ports
LAN link state state of the LAN-Port Link down → no LAN cable with an active Ethernet
client connected
up → LAN cable with an active Ethernet client
connected
Speed 10, 100, 1000 MBit → transfer rate
Duplex Half, Full → Simultaneous sending and
receiving possible (Full) or not (Half)
MDI-X Straight, Cross → MDI-X State
Tabelle 5: Wired LAN Status Information
3.1.4 Serial1
This section shows the current status of the serial Ports
MC Manual Version 2.10c
