Create sample project
03/05 AWB2724-1453G
48
A double click on the target system leads to the following (see
figures). The register tabs “Target platform”, Memory layout” and
“General” just present information about the target system. No
settings can be made in these tabbed screens.
X If a CANopen slave is to be integrated into the configuration,
click the “Networkfunctionality” tab and tick the “Support
network variables” check box.
You will get a message that this target system supports the CAN
network.
The “Support network variables” control box must only be acti-
vated if you wish to work with network variables. When activated,
the libraries required for operation of network variables are added
automatically. This function is not required if you use a CAN
Master/CAN Device.

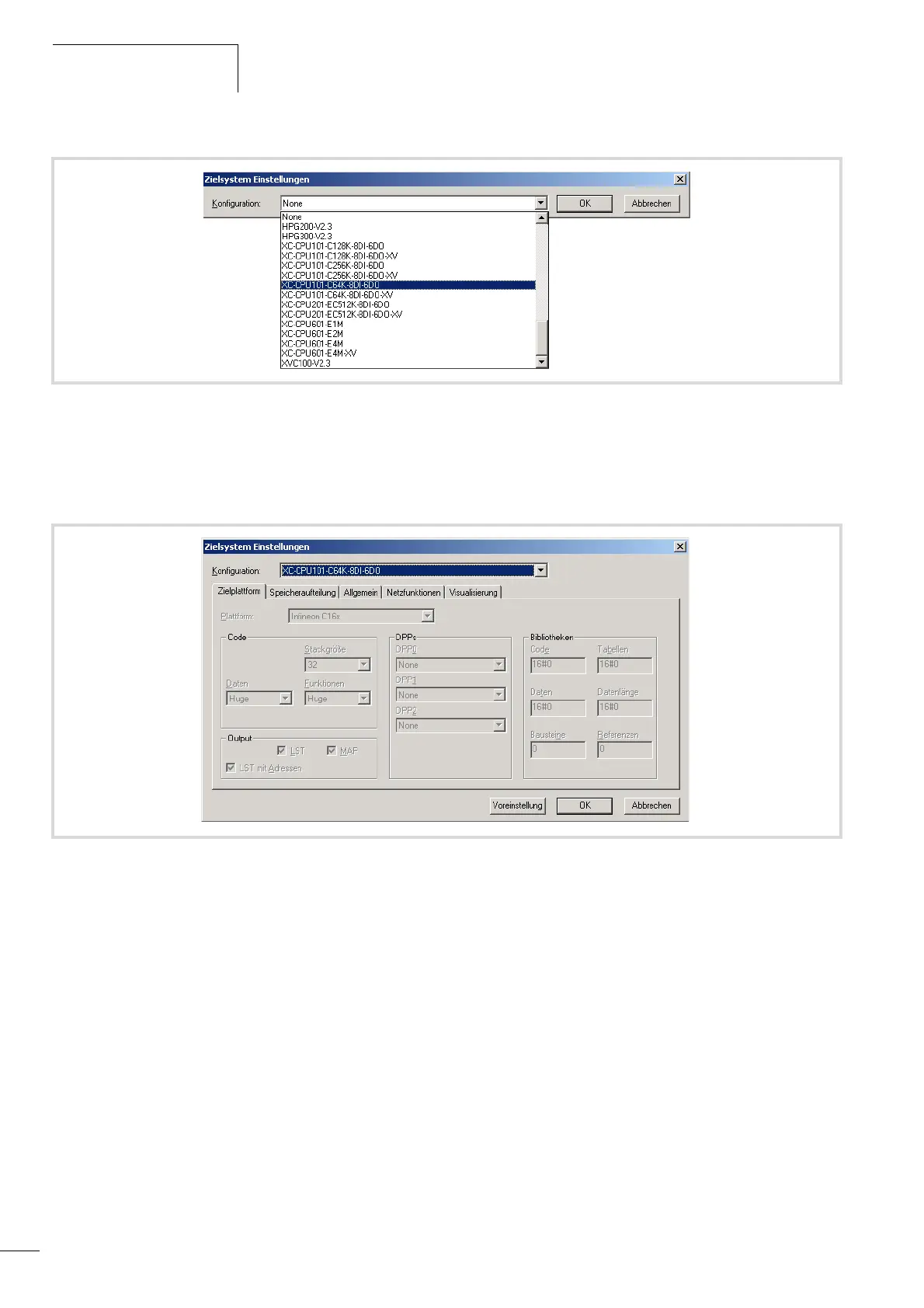

Figure 61: Select target system
Figure 62: Target system settings – target platform
