4.2 Pump Maintenance
Models: DN, DO, DR, DT, DU, DW, DY, DZ, HN, HR, HW, HX, HY, HZ

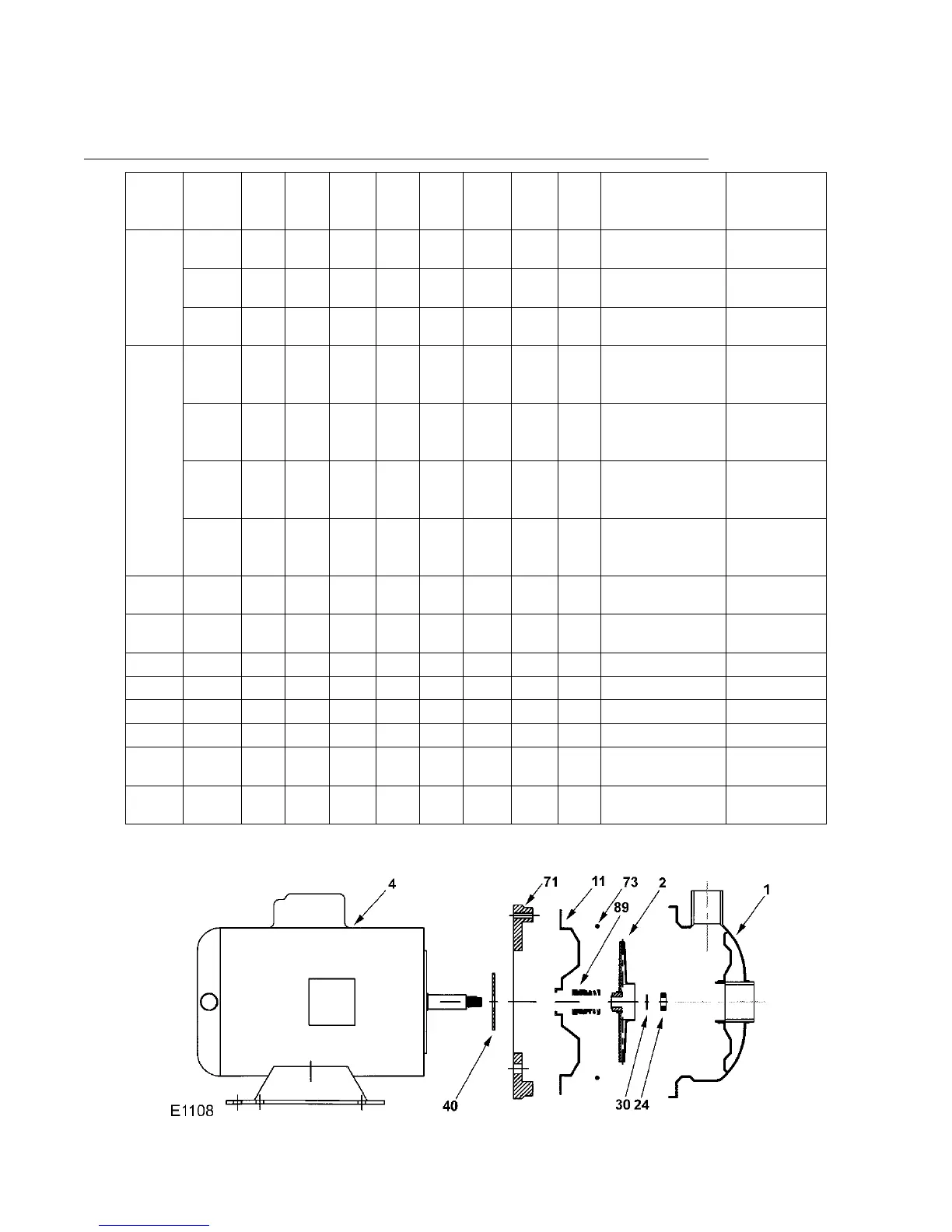

Exploded View Drawing Models: DN, DO, DR, DT, DU, DW, DY, DZ
REF.
NO.
QTY.
DN
3
HP
DO
5
HP
DR
1.5
HP
DT
¾
HP
DU
5
HP
DW
3
HP
DY
1.5
HP
DZ
¾
HP
DESCRIPTION
PART #
1
1
CASE 1.25 x
1 NPT
018266
1






CASE 1.25 X
1 NPT
018268
1


CASE 1.5 x
1.25 NPT
018267
2
1


IMPELLER
4.88”,
STAINLESS
018275
1


IMPELLER
5.25”,
STAINLESS
018276
1


IMPELLER
6.3”,
STAINLESS
018277
1


IMPELLER
6.3”,
STAINLESS
018342
4
1








MOTOR 56J
CONSULT
FACTORY
11
1








COVER,
STAINLESS
018269
24*
1








NUT
018270
30*
1








D-WASHER
018271
40*
1








FLINGER
018272
71
1








DISC IRON
018273
73*
1








GASKET,
CASE
018274
89*
1








SEAL, 5/8”
IN REPAIR
KIT
* - DENOTES COMPONENTS INCLUDED IN REPAIR KIT 018246.
