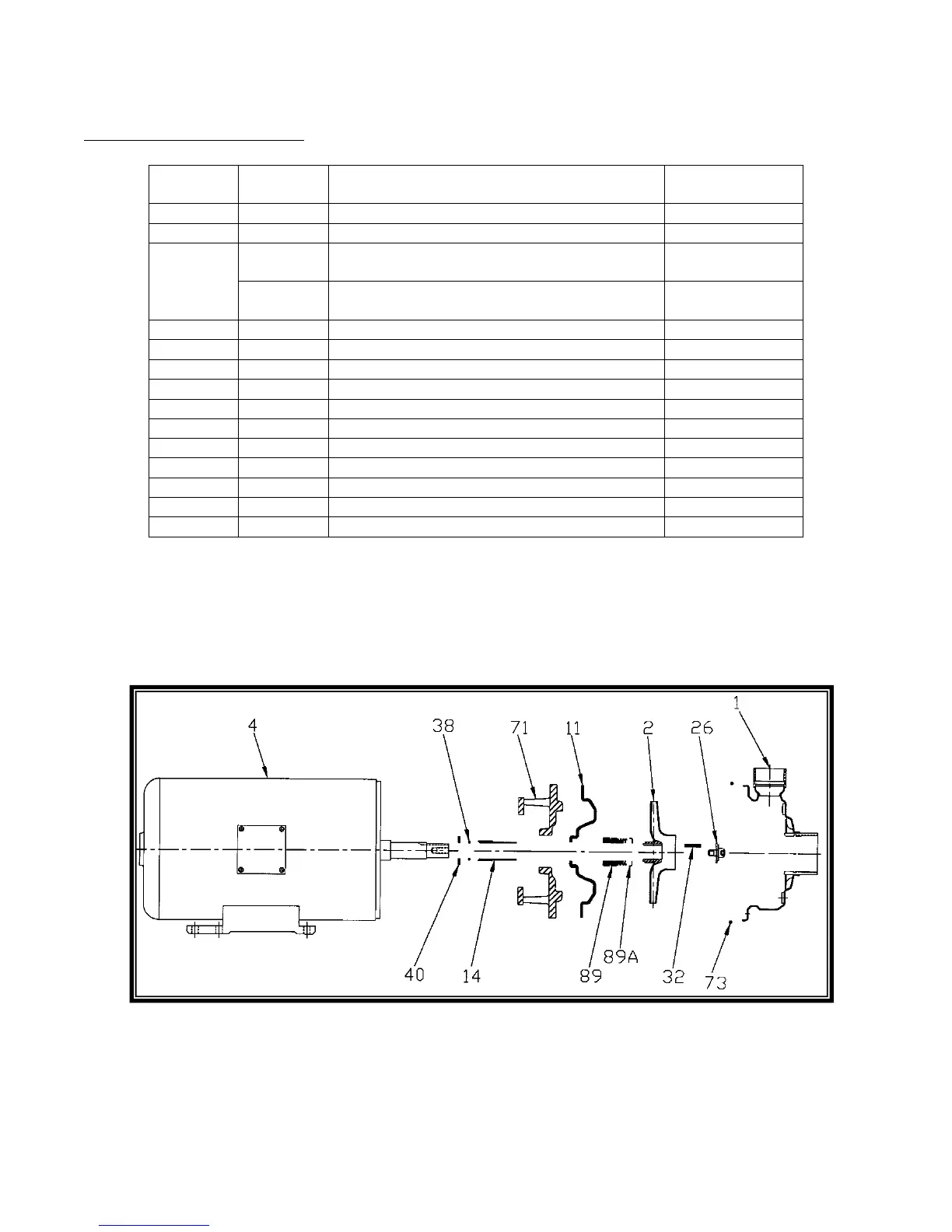

Mokon Duratherm - Models: DP, DQ, DV, DX; Exploded View Drawing

17
Models: DP, DQ, DV, DX
Exploded View Drawing
REF.
QTY
REQ.
DESCRIPTION
PART
NUMBER
1
1
CASE, 236, 2.0” X 1.5” NPT
018310
2
1
IMPELLER, 236, 304SS, 6.3” DIAMETER
018311
4
1
MOTOR, 7.5 HP, 3/60/208-230/460,
3500 ODP
Contact
Factory
1
MOTOR, 10.0 HP, 3/60/208-230/460,
3500 ODP
Contact
Factory
11
1
COVER
018312
14*
1
SHAFT SLEEVE
018313
26*
1
IMPELLER RETAINER
018314
32*
1
KEY
018315
38*
1
SHAFT O-RING
018316
40*
1
FLINGER
018317
71
1
ADAPTER
018318
73*
1
CASE GASKET
018319
89*
1
SEAL, VN-CARB/SIL
018308
89A
1
SEAL SPRING RETAINER
018320
*
*
REPAIR KIT, VN-CARB/SIL
018309
*-DENOTES COMPONENTS INCLUDED IN REAPIR KIT
