4.7 Heater Element Wiring
Models: HN, HR, HW, HX, HY, HZ, MT

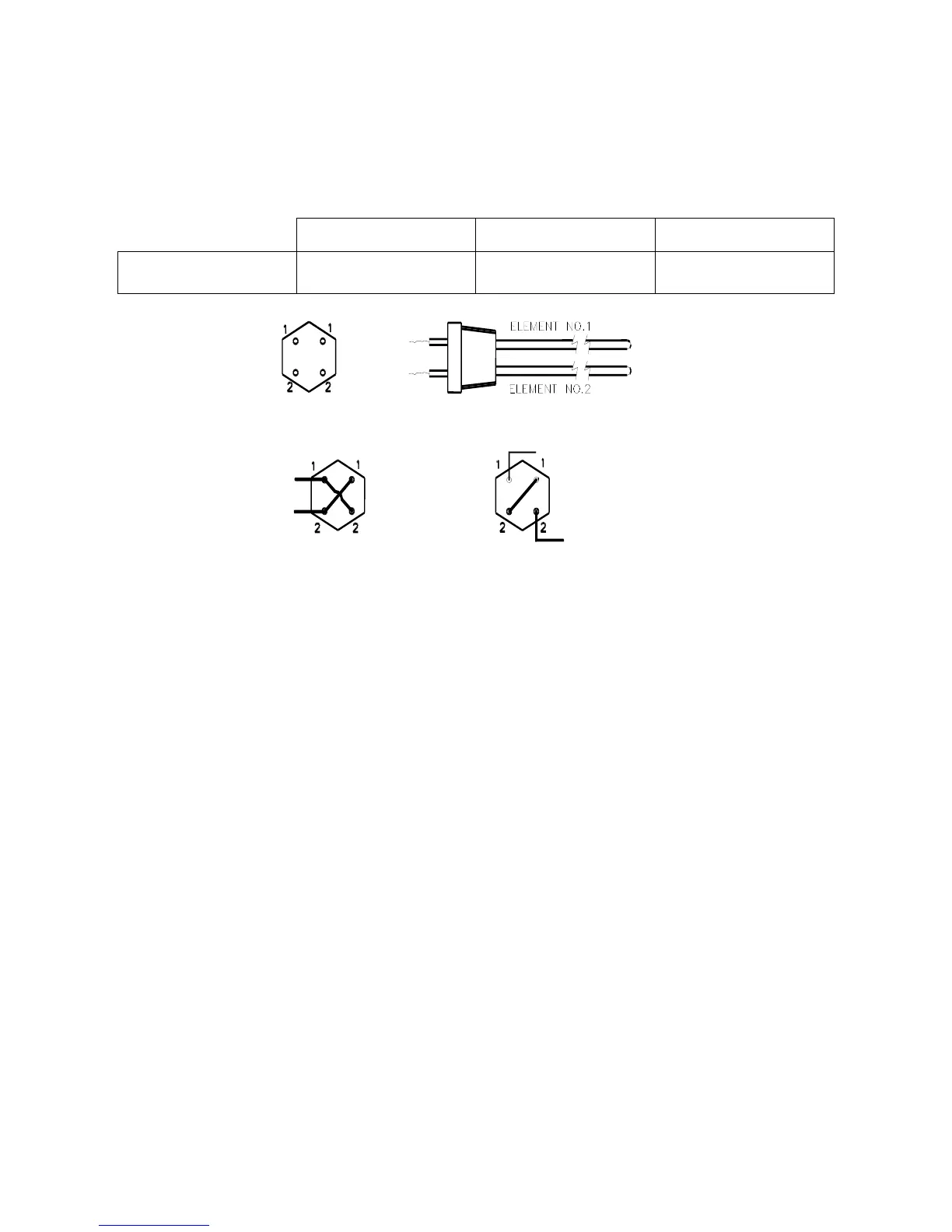

Use the following chart to select between wiring method A and B to wire MOKON replacement
heaters (dual element – hair pin type). Refer to the MOKON system electrical schematic for
complete heater wiring illustrations.
190-240 Volts
380-460 Volts
550-575 Volts
Water Systems
A
B
B
A B
