Mokon Duratherm - Model: MT; Exploded View Drawing

27
Model: MT

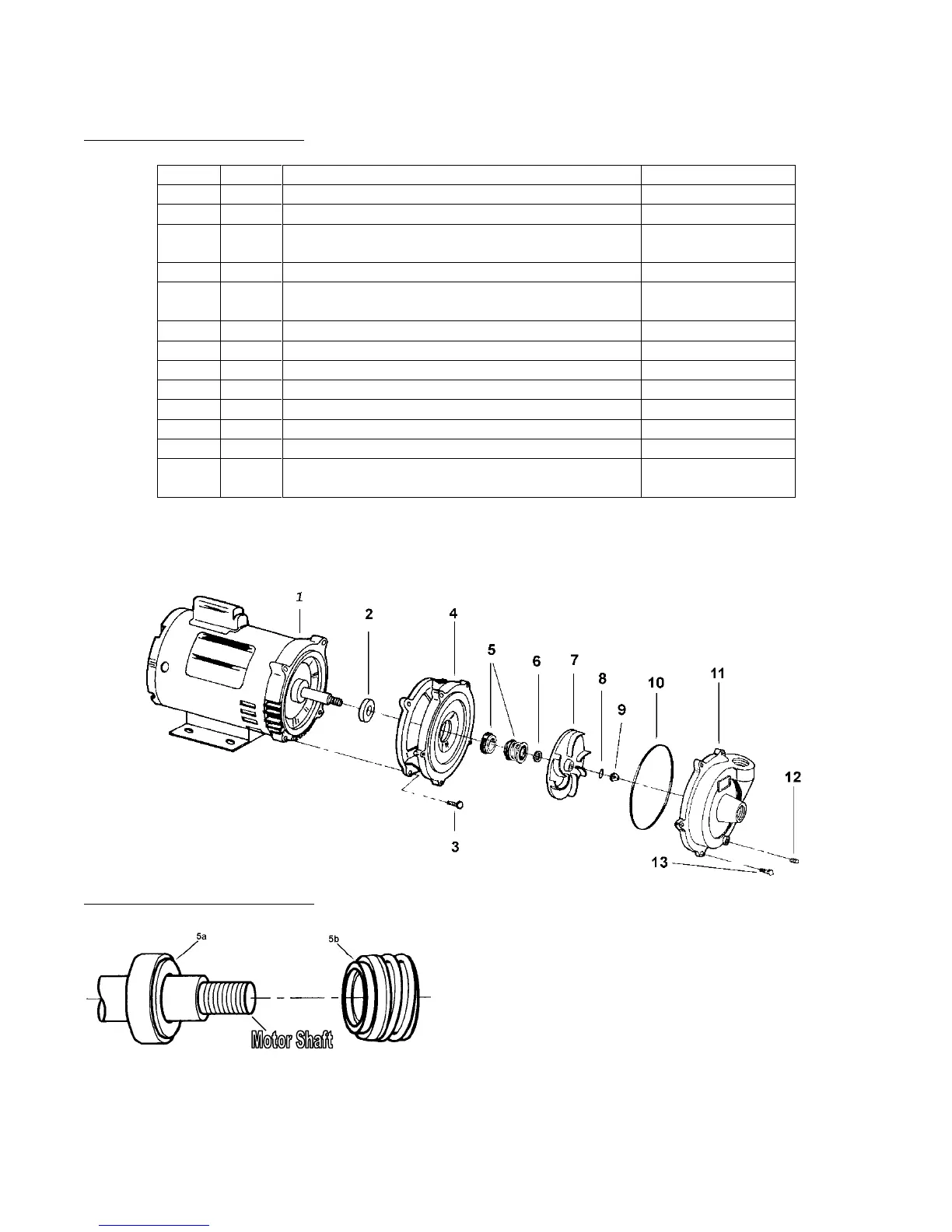

Exploded View Drawing
REF.
QTY.
DESCRIPTION
PART #
1
1
MOTOR
Consult Factory
2
1
5/8 SLINGER WASHER
034115
3
4
3/8-16 x ¾” HEX HEAD CAP SCREW S.S.
Standard
Hardware
4
1
ADAPTER
034114
5
1
SEAL ASSEMBLY- SILCONE CARBIDE
(SEE NOTE BELOW)
034113
6
1
IMPELLER SHIM SET
034112
7
1
IMPELLER
034111
8
1
# 013 O-RING VITON
034110
9
1
7/16-20 ACORN NUT
034109
10
1
# 243 O-RING
034108
11
1
CASING
034107
12
1
1/8” PIPE PLUG S.S.
017044
13
5
¼ - 20 x 7/8” CAP SCREW S.S.
Standard
Hardware
NOTE: WHEN REPLACING SEAL ASSEMBLY (REF 5) A NEW IMPELLER
O-RING (REF 8) SHOULD BE USED
SEAL ASSEMBLY DETAIL
