Mokon Duratherm - Models: DB, DC, DF, DG, DJ, DL; Exploded View Drawing

20
Models: DB, DC, DF, DG, DJ, DL

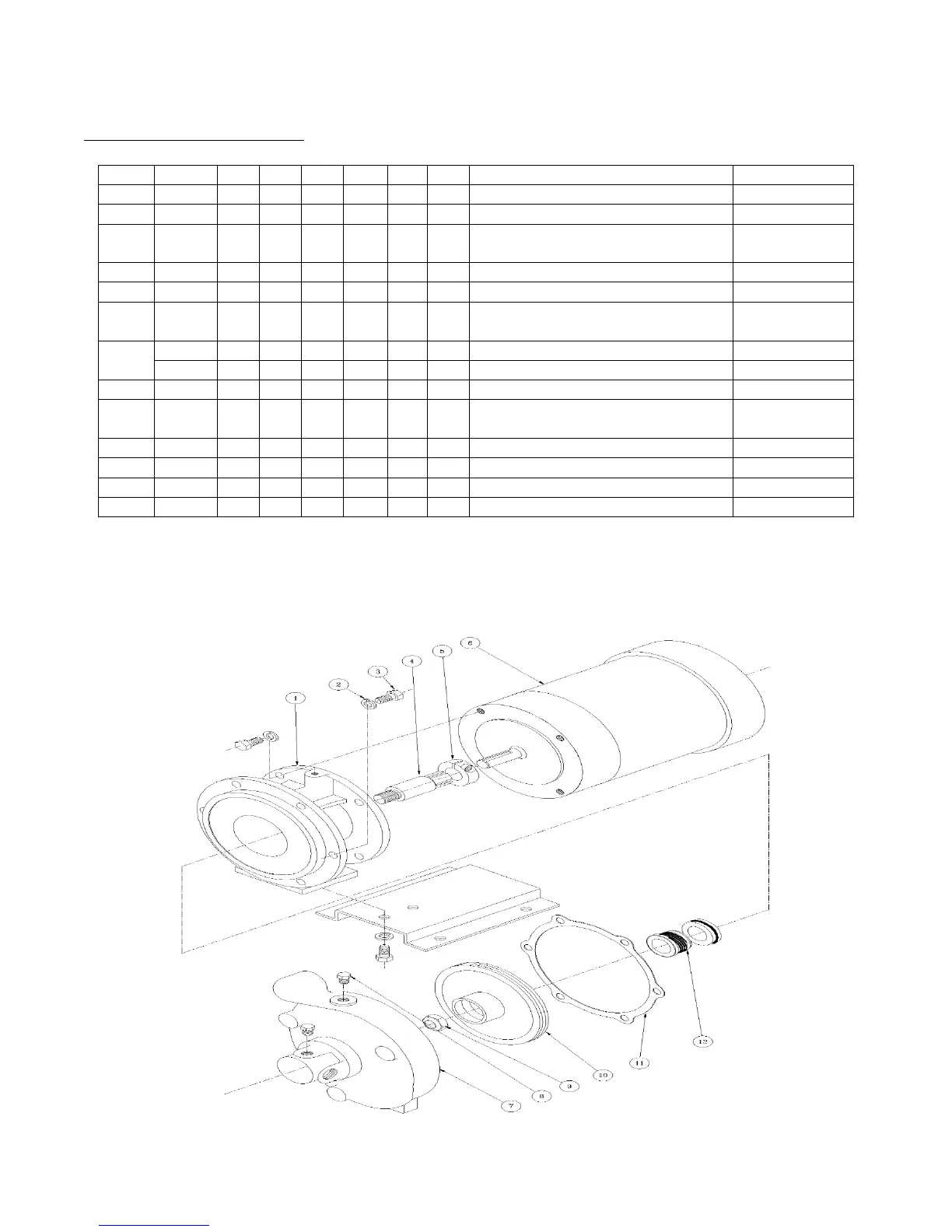

Exploded View Drawing
REF.
QTY.
DB
DC
DF
DG
DJ
DL
DESCRIPTION
PART #
1
1






ADAPTOR FRAME
034007
2
12






LOCK WASHER 3/8 x 1/8 S.S.
034004
3
12






HEX HEAD CAP SCREW 3/8-16
x 1” S.S.
034009
4
1






SHAFT DRIVE SLEEVE S.S.
034006
5
1






DRIVE CLAMP ASSEMBLY
034020
6
1






MOTOR 56 C FRAME
Contact
Factory
7
1




HOUSING 1 X 3/4
034021


HOUSING
034027
8
2




PIPE PLUG / GUAGE PORT
017043
9
1






HEX JAM NUT 5/8 – 18 x 5/16
x 3/8 S.S.
034016
10
1






IMPELLER BRASS 5.9”
034025
11
1






GASKET
034014
12
1






SEAL ASSEMBLY
034008
1
SHIM SET .032 (NOT SHOWN)
034018
NOTE: YOUR PUMP MAY LOOK SLIGHTLY DIFFERENT
