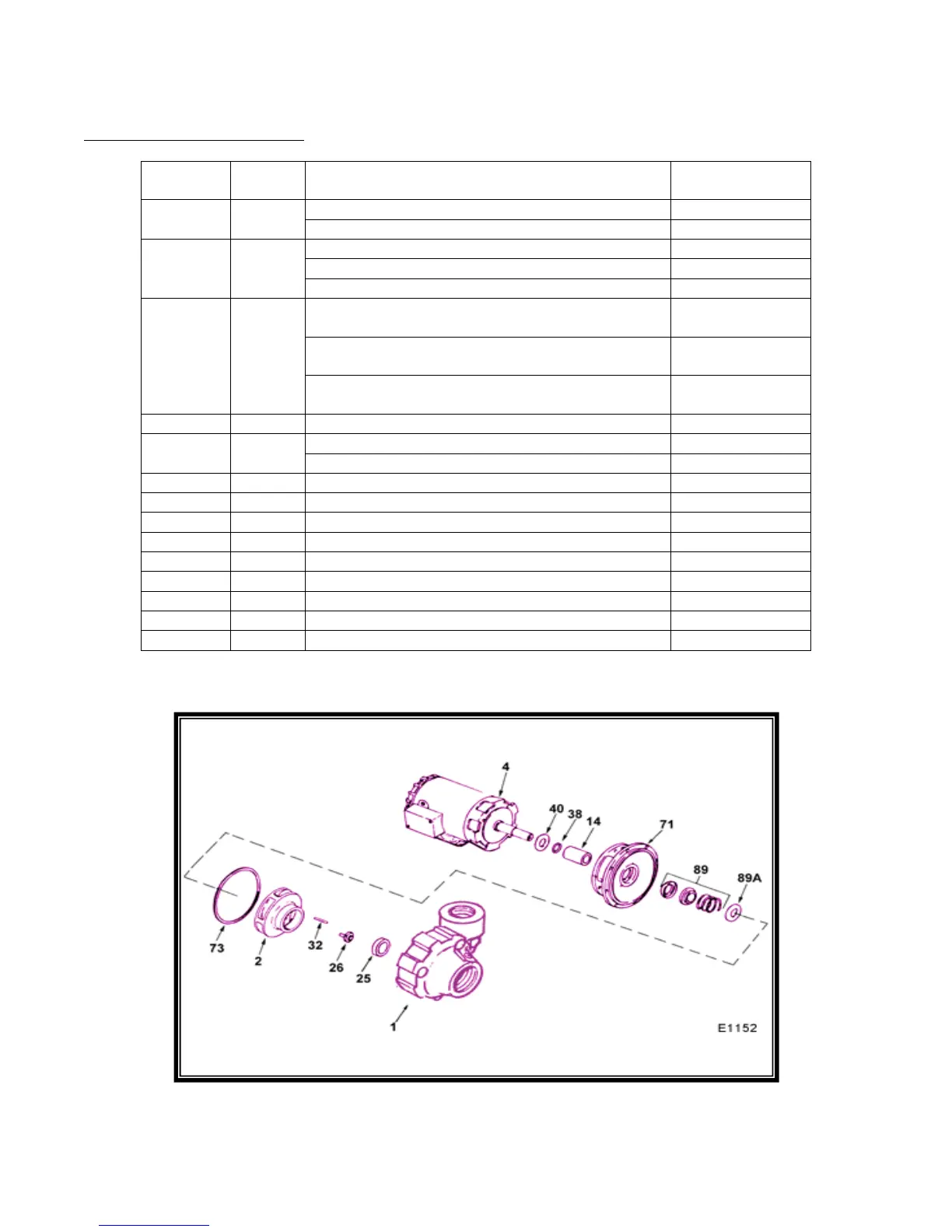

Mokon Duratherm - Models: DA, DD, DE, DH, DK, DM; Exploded View Drawing

24
Models: DA, DD, DE, DH, DK, DM
Exploded View Drawing
REF.
QTY.
DESCRIPTION
PART
NUMBER
1
1
CASE, 50, 2.0” X 1.5” NPT, IRON - 5, 7.5 HP
018321
CASE, 52, 2.5” X 2.0” NPT - 10 HP
018333
2
1
IMPELLER, 50, IRON 6.25” – 5 HP
018322
6.5” – 7.5 HP
018323
IMPELLER, 52, IRON 6.5” – 10 HP
018334
4
1
MOTOR, 5.0 HP, 3/60/208-230/460, 3500,
ODP
Consult Factory
MOTOR, 7.5 HP, 3/60/208-230/460, 3500,
ODP
Consult Factory
MOTOR, 10 HP, 3/60/208-230/460, 3500,
ODP
Consult Factory
14*
1
SHAFT SLEEVE
018324
25
1
WEAR RING, 50
018325
WEAR RING, 52
018335
26*
1
IMPELLER RETAINER
018326
32*
1
KEY
018315
38*
1
SHAFT O-RING, VITON
018328
40*
1
FLINGER
018317
71
1
ADAPTER
018328
73*
1
CASE GASKET
018329
89*
1
SEAL, VN-CARB/SIL
018330
89A*
1
SEAL SPRING RETAINER
018331
*
REPAIR KIT, VN-CARB/SIL
018332
NOTE: YOUR PUMP MAY LOOK SLIGHTLY DIFFERENT
