The device will automatically eject the cartridge holder. Take out the cartridge and place it on the
cartridge stand. Pierce the seal of elute chamber and aspirate out the entire elute into Elute
collection tube (ECT) using Disposable transfer pipette provided in the cartridge pack.
7.4.5 Discard the cartridge as per the instructions in Section 8.3.
7.4.6 Tray replacement
Cartridge holder contains two rail guards (Left hand side and Right hand side) and one middle
replaceable tray as shown in Figure 11. Steps for replacement of replaceable tray and rail guards are as
follows:
Step 1: Removal of the tray:
1a. Remove the Replaceable tray and Rail guards from cartridge holder as shown in the Figure 12.
1b. Clean the rail guards and the Replaceable tray with 70% Isopropyl Alcohol (IPA).
Step 2: Addition of the tray:
2a. Place the Rail guards first on the rails as shown as shown in Figure 13.
2b. Place the Replaceable tray above the rail guards in cartridge holder as shown Figure 13.
i. Inspect the replaceable tray in the cartridge holder
ii. If there are liquids spilled in the tray, take out the tray and discard as per the instructions in
Section 8.3.
iii. Clean the cartridge holder with 70% Isopropyl Alcohol (IPA) as described in Section 8.3.
iv. Replace the removed tray with a new tray and close the cartridge holder (24 Extra trays are
TM
provided with the Trueprep AUTO device. More trays, if required, can be ordered from
Molbio).

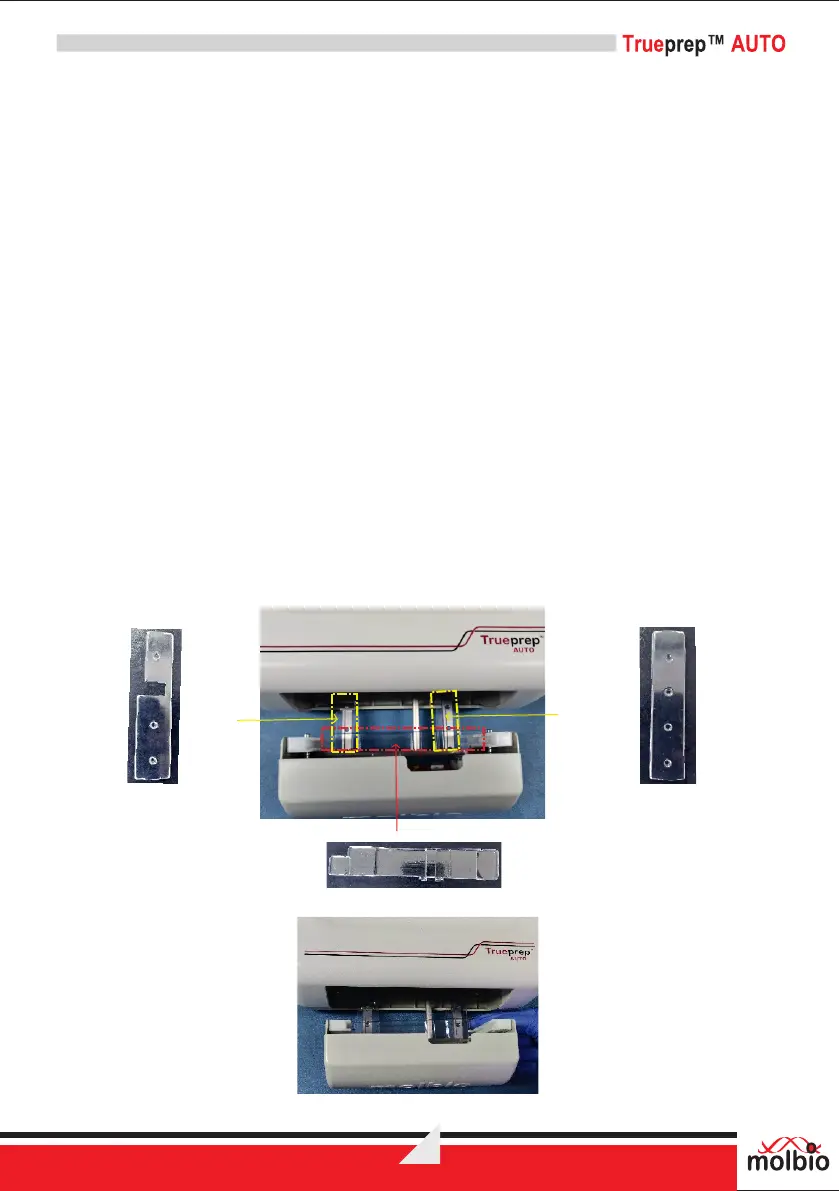

Figure 11: Replaceable tray and Rail guards in cartridge holder
Figure 12: Removal of Replaceable Tray and Rail guards from cartridge holder
DIAGNOSTICS
11
Replaceable Tray
Rail guard
(Left Hand Side)
Rail guard
(Right Hand Side)
