Adjustment: Adjust the adjustment nut.

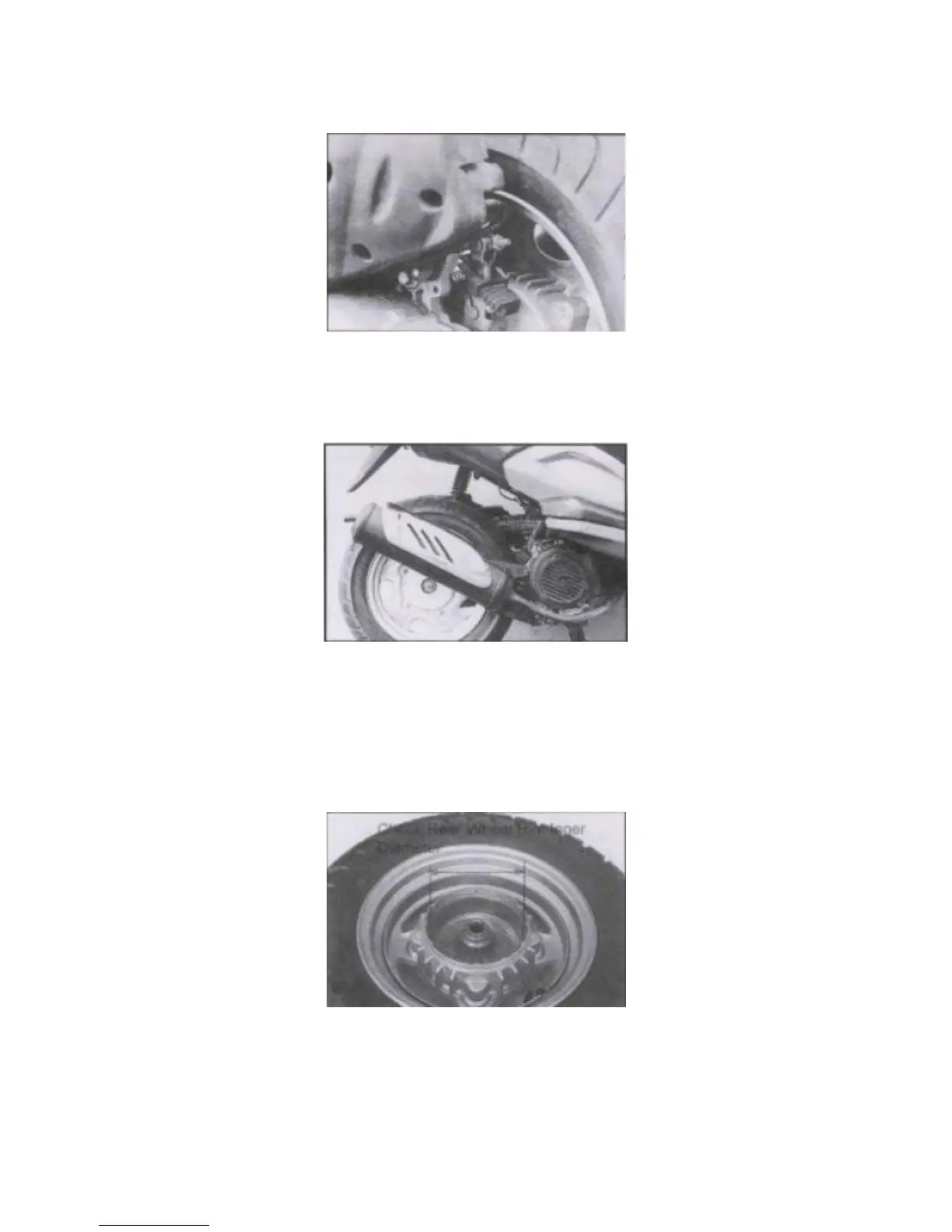

3.4.7 Inspection of Brake Lining and Wheel
Inspection: Check the wear indicator plate. If the index is higher than the limit, check the
wear of wheel rim and brake lining.
Disassembly:
2 tightening bolts on exhaust pipe connector.
2 tightening bolts between exhaust pipe and right crankcase.
Tightening nut on rear wheel axle.
Washer.
Rear wheel.
Inspection: check rear wheel rim inner diameter. If it is badly worn, replace
with a new one.
Note:
(1) Use vacuum to clean wheel rim and lining.
(2) Use the Vernier callipers to measure the diameter of wheel rim. If the diameter is
larger than 111 mm, then replace with new one.
