Monaco VMOTO - Brake Lining Assembly (Brake Shoe, Brake Shoe Spring); Rear Shock Absorber

5.3.1 Brake lining assembly (brake shoe, brake shoe spring).
Inspection:

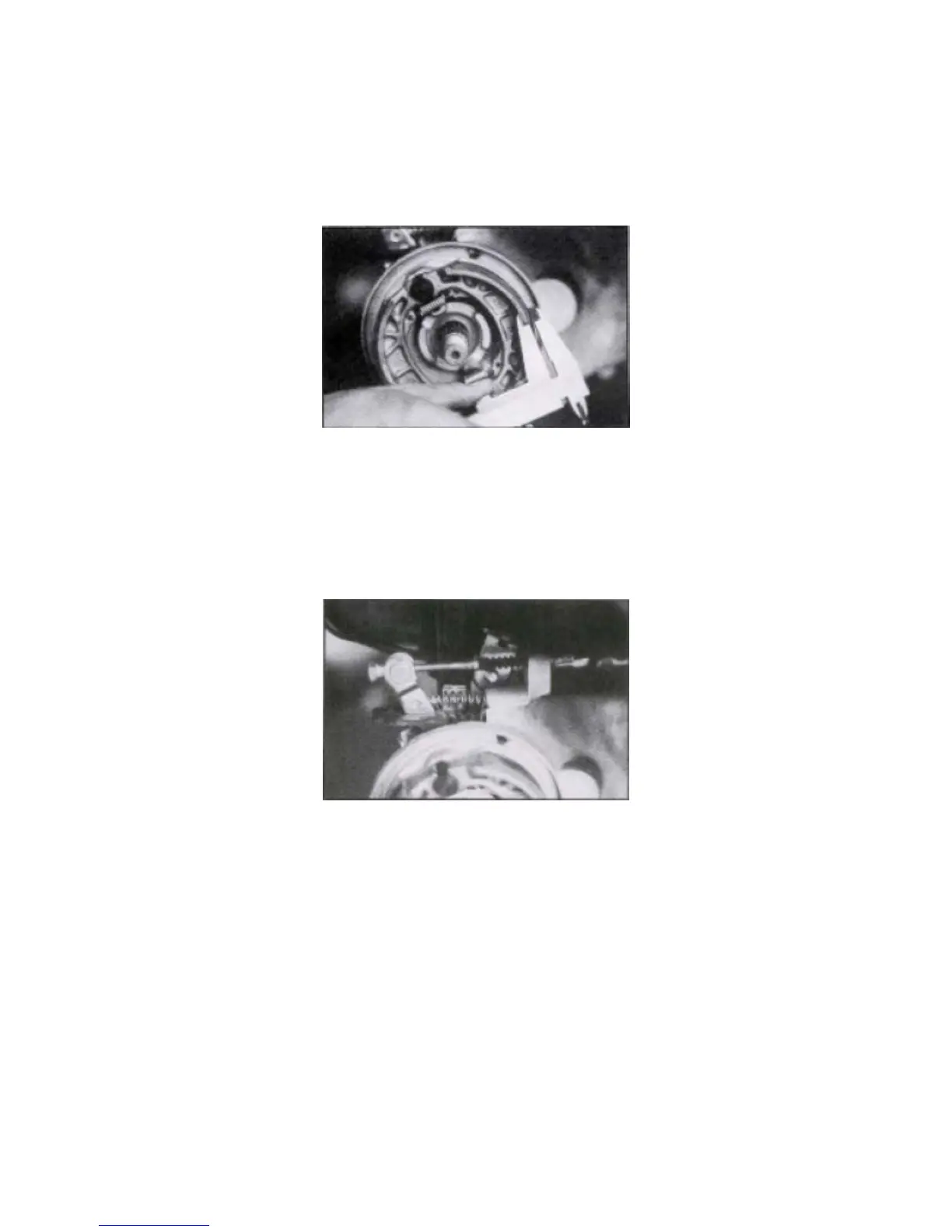

Using Vernier callipers make three measurements (two ends and centre) of the lining
thickness. If the lining is less than 2.0 mm, replace
the assembly.
Warning:
Do not get any grease on the brake lining.
Disassembly:
 Loosen the rear brake adjusting nut and remove brake cable.
 Brake arm cover.
 Brake spring.
 Rear brake connecting rod.
 Rear brake cam axle.
Assembly: Assembly is in reverse order of disassembly.
Note:
Apply a thin layer of grease to the contact areas
Torque of rear brake connecting rod bolt: 50 ~80 kg-cm.
Torque of lock pin nut: 250 ~270 kg-cm.
Torque of rear wheel self-locking nut: 600 ~ 900 kg-cm.
5.4 Rear Shock Absorber
Place the scooter on the main stand for maintenance.
Disassembly:
 2 attaching bolts on air filter.
 Air filter.
