Note: If eccentricity is higher than 0.2mm, replace with new one.

 Speedometer gear assembly.

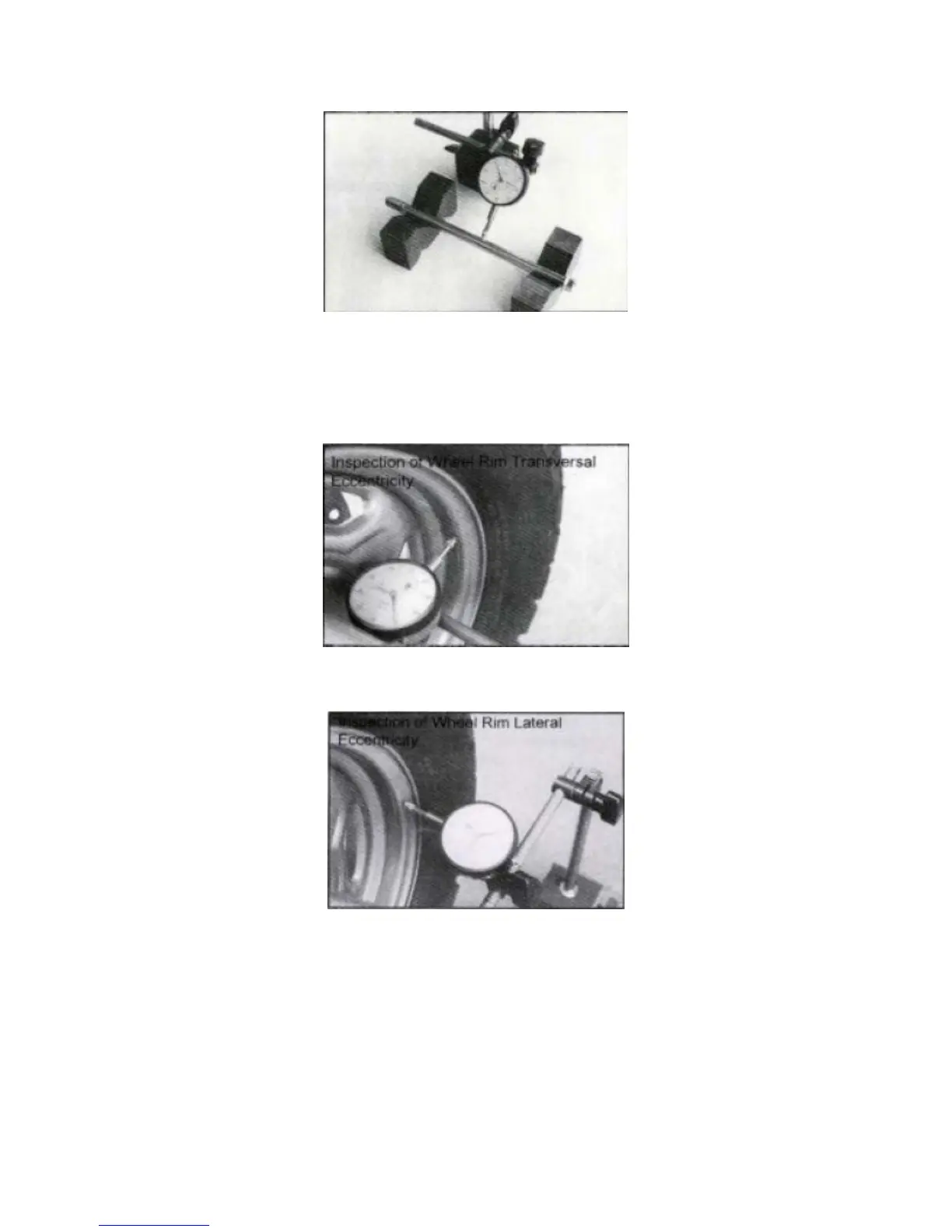

5.2.1 Inspection of Wheel Rim

 Put wheel rim on rotation stand.

 Rotate the wheel slowly and use dial-gauge to measure eccentricity

Note:

The transverse eccentricity should be within 3.0 mm

2. The lateral eccentricity should be within 3.0mm.

Caution:

1. Speedometer gear assembly fillister and wheel hub flange should be

aligned.

2. The wheel hub flange fillister and front fork flange should be fully

matched.
