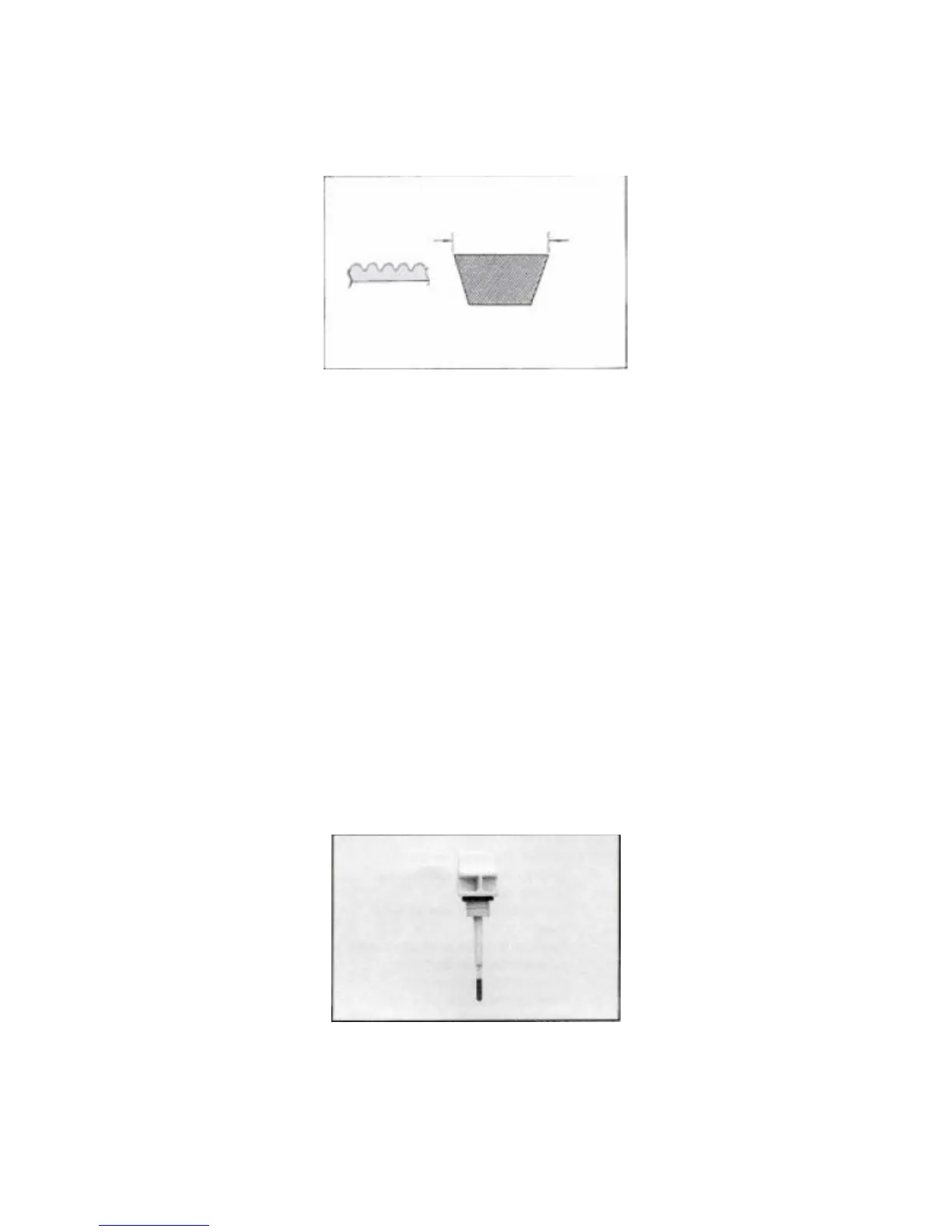

V belt.
Inspection: Check if the V belt has cracked, deteriorating. If it is in poor condition,
replace it with a new V belt.
Note:
(1) Check the belt length.
Wear limit: 18.0 mm or 8000km
(2) Belt specification:
BANDO VS BELT 743 20 30
Assembly: Assembly is in reverse order of disassembly procedures.
Warning: Do not apply any grease on pulley or V belt
Note:
(1) Drive plate screw is left-threaded.
(2) Torque of drive plate nut: 800 ~ 1000 kg-cm.
(3) Torque of clutch side nut: 50 ~ 60 kg-cm.
(4) Torque of kick starter arm screw: 100 ~ 120 kg-cm.
3.13 Lubrication
3.13.1 Engine oil level
The engine must be in cold and the scooter positioned on its stand on level ground.
Inspect the oil level with the dip stick on the filler cap.
Top up to the correct level with oil of the recommended type.
3.13.2 Oil renewal
Renew the oil easily while the engine hot.
