Note:
1. Increase engine speed by rotating the nut clockwise.
2. Reduce engine speed by rotating the nut counter-clockwise.
Tighten adjusting nut after adjustment.
Close dust boot.

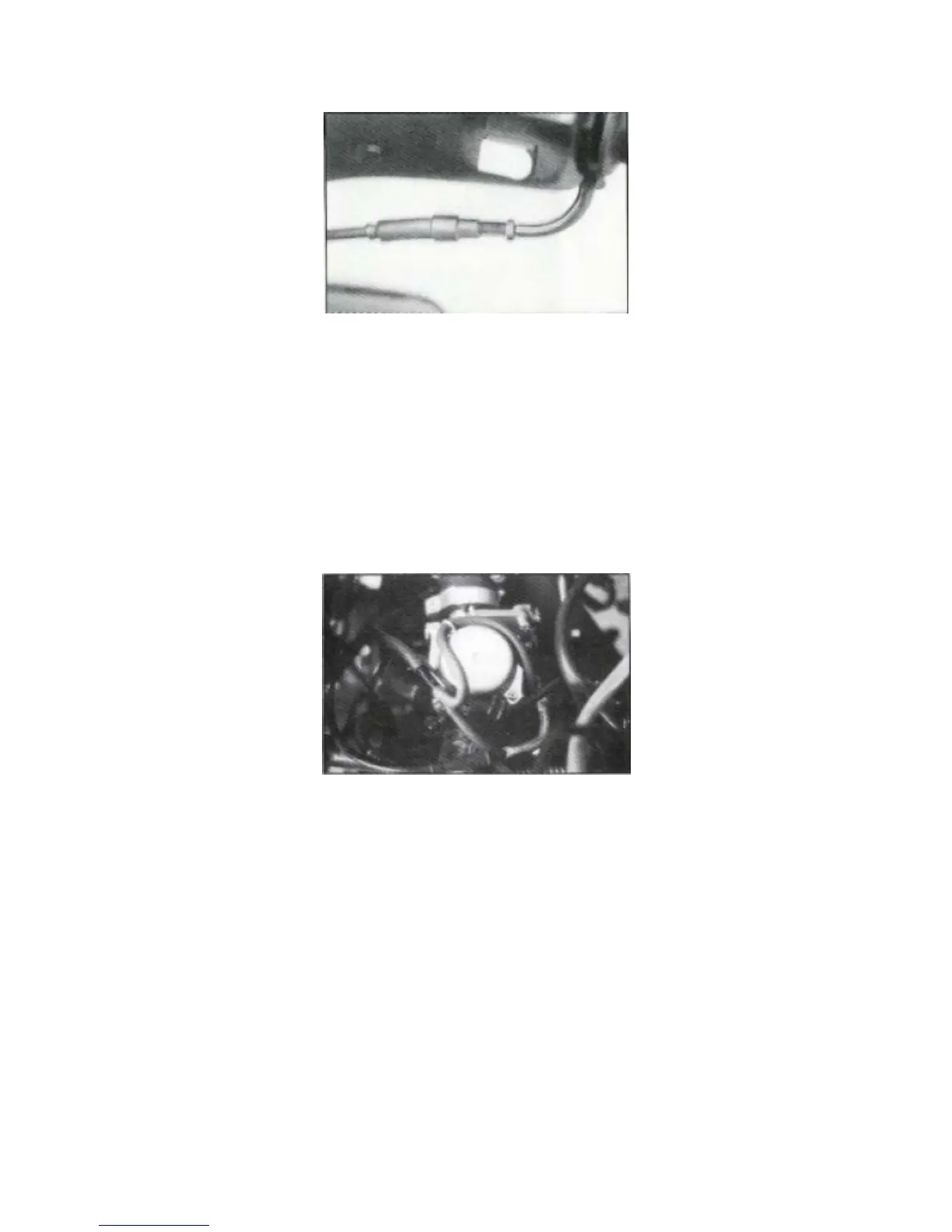

3.11.2 Carburettor Throttle Cable Play
Adjustment Procedure:
Note: First, adjust the throttle lever play. If it does not satisfy the specification, then
adjust the carburettor throttle play.
Loosen the locking nut.
Rotate the adjusting nut.
Note:
1. Increase play by rotating the screw clockwise.
2. Reduce play by rotating the screw counter-clockwise.
Tighten the nut after adjustment.
3.12 V Belt
Note: Place motorcycle on the main stand for inspection.
