 Disassemble the brake shoe and brake shoe spring.

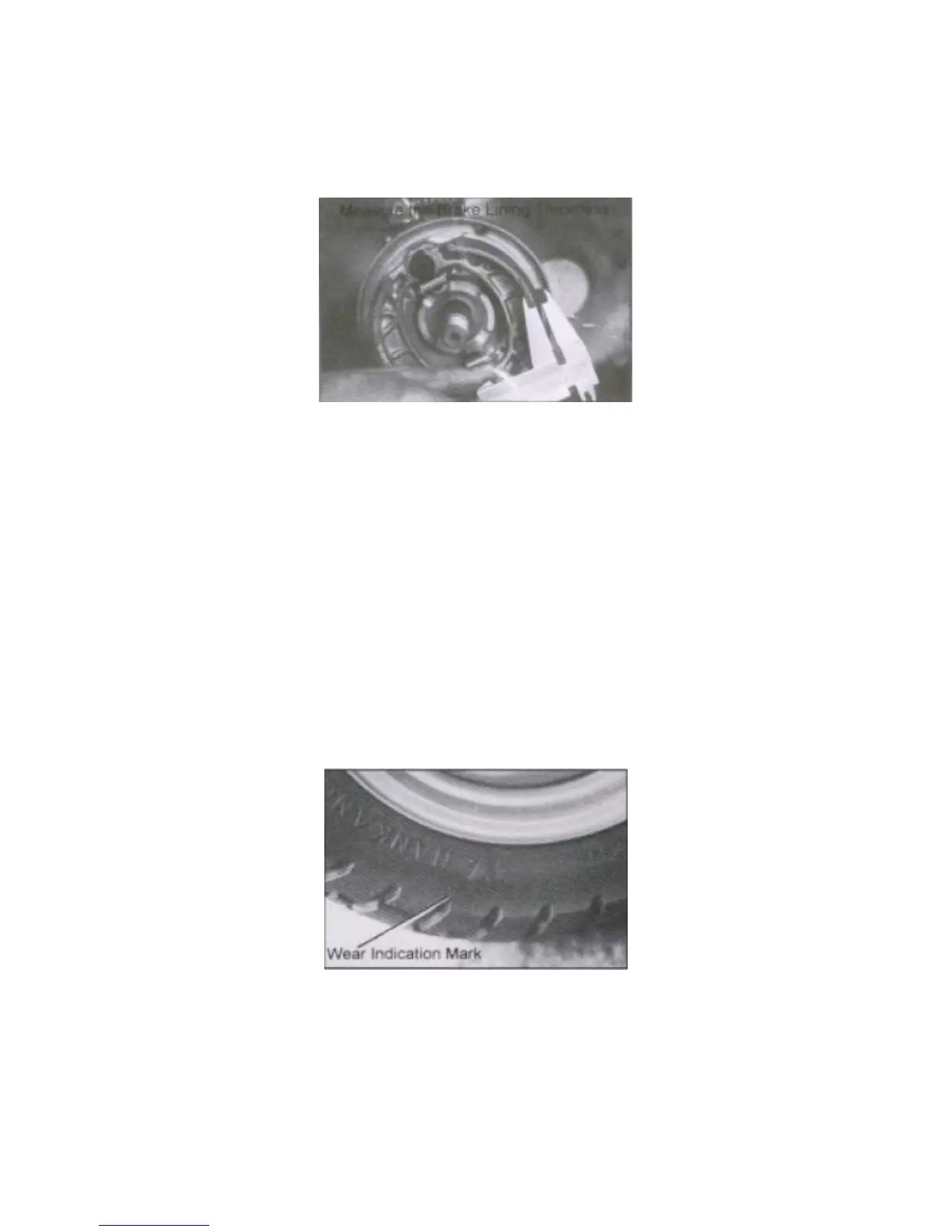

Inspection: Measure the brake lining
thickness at three points with Vernier callipers
(two ends and centre). If badly worn, replace with new one (brake shoe and brake shoe
spring).
Note:
(1) Useable thickness is 2.0 mm.
(2) If less than useable thickness, replace with new parts.
Assembly: Assembly is in reverse order of disassembly procedures.
Note:
(1) Torque of rear wheel bearing bolt: 600 ~ 900 kg-cm.
(2) Torque of 2 bolts on exhaust pipe connector: 100 ~ 120 kg-cm.
(3) Torque of 2 bolts on exhaust pipe and right crankcase: 300 ~ 400 kg-cm.
3.5 Tyre and Tyre Pressure
Inspection: Check if tyre has been cracked, damage, worn, inclusions (stone, nail, glass,
etc.). If tyre is in poor condition, replace with new one.
Note: Tyre specifications in specification table.
Tyre pressure
Note: Measure tyre pressure when cool.
Note: Tyre pressure.
Front tyre: 175kPa(1.78 ㎏/㎝ 2 25.38 PSI)
Rear tyre: 210kPa(2.14 ㎏/㎝ 2 30.45 PSI)
