Monark 915E - Page 5

5
Place the support for the tension axle/screw as far down
as it takes to push through the axle for the tension knob.
Place the pressure washer with the smaller part in di-
rection outwards inside the head tube.
Take the cable for the meter through the head tube.
Assemble the handlebar/stem and tighten carefully.
Note! Be careful when assembling the handlebar stem so
that the electric cable does not get pinched.
Turn the handlebar/stem in a comfortable position and
tighten carefully with the lever.
Screw in the tension screw into to the tension device.
Put together the connectors on the cable for the meter
and push the meter onto the fastening plate. See fig.2.

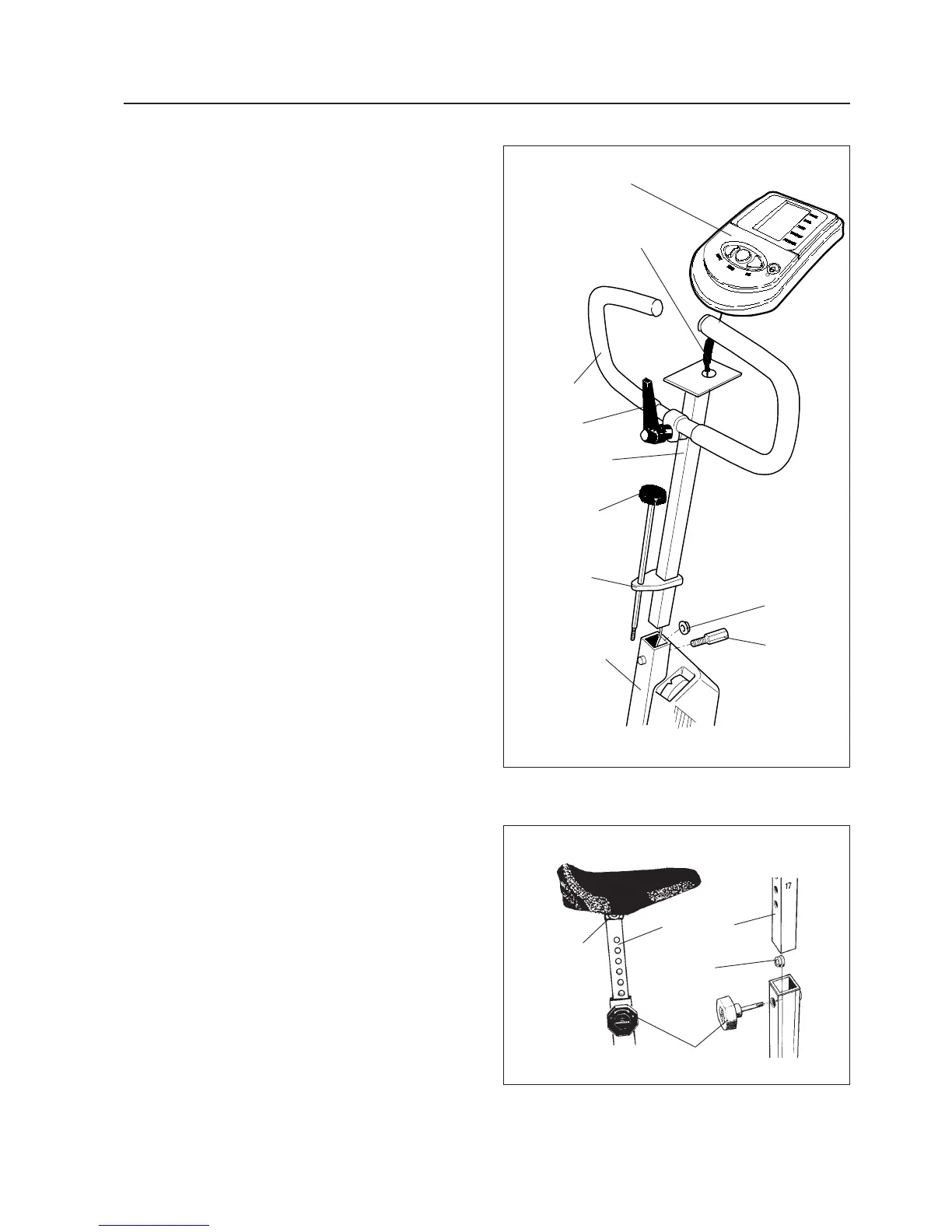

ASSEMBLY INSTRUCTIONS cont.
Electronic meter
Handlebar
Lever
Handlebar
stem
Handwheel with
tension screw
Support
Head tube
Pressure
washer
Bolt
Fig 2
Saddle clip
Saddle post bolt
Pressure
washer
Saddle post
Fig 3
Adjust the saddle/saddle post to desired height. Then
tighten with the saddle post bolt. See fig 3.
In order to change the inclination of the saddle, loosen
the saddle clip. See fig 3.
Note! Tighten firmly.
Joint contact
