6

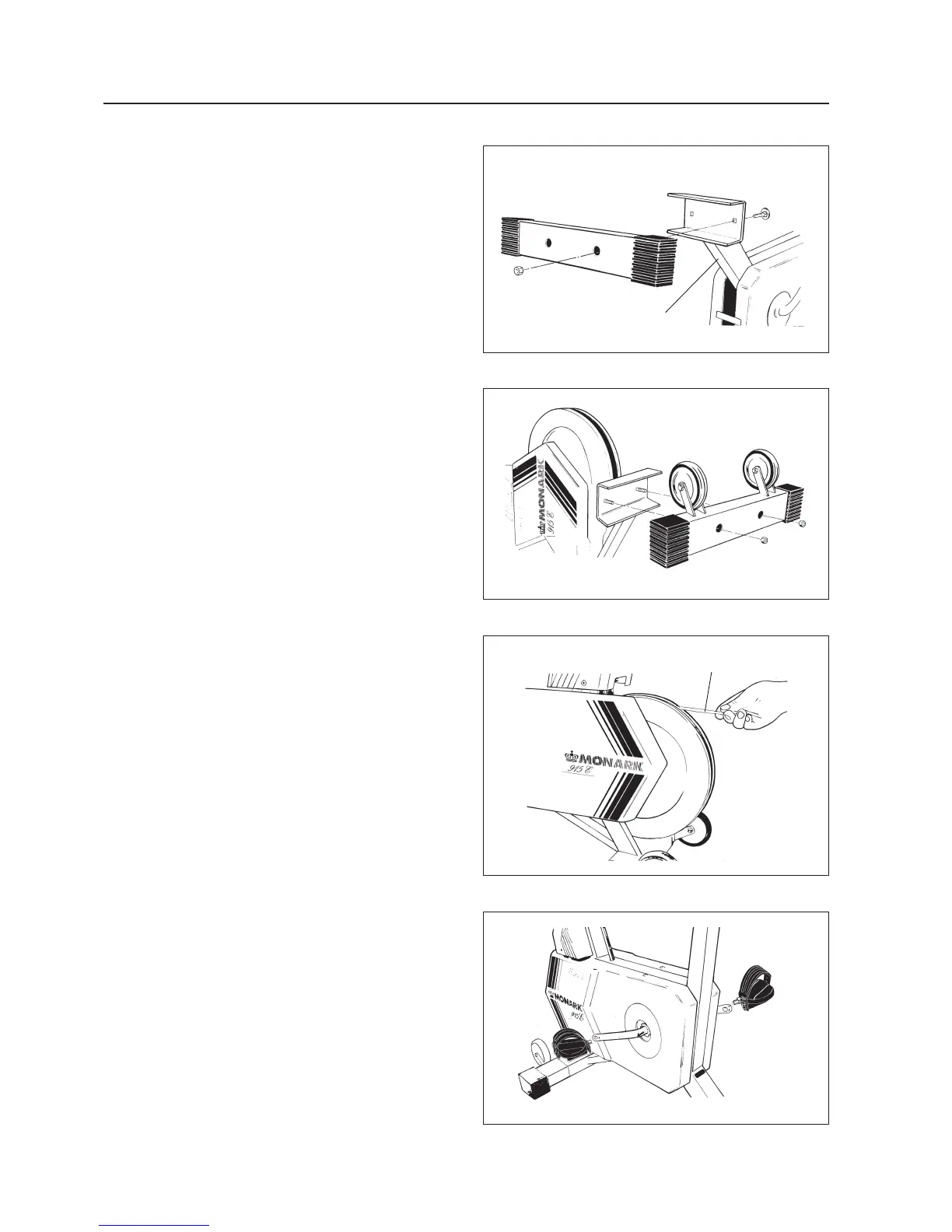

ASSEMBLY INSTRUCTIONS cont.
Tip the cycle forward and remove the transport block.
Assemble the back supporting tube with two bolts and
two nuts. See fig 4.
Note! Use the accompanying spanner.
Production number
Fig 4
Fig 5
Fig 6
Tip the cycle backwards. Assemble the front suppor-
ting tube with two nuts onto the two fixed bolts. See
fig 5.
Note! Use the accompanying spanner.
Plastic tape
Take off the brake belt and remove the plastic tape from
the flywheel.
Assemble the brake belt as before. See fig 6.
Note! It is very important that all of the plastic tape is
removed. Residue of the plastic tape may cause an uneven
operation.
Fig 7
Pedal, right hand
side, marked R
Pedal, left hand
side, marked L
The pedal marked R (right) to be assembled on the
right hand side of the cycle (the chain wheel side). The
pedal axle has a right hand thread and must be thread-
ed onto the crank clockwise. Tighten firmly. See fig 7.
The pedal marked L (left) to be assembled on the lefte
hand side of the cycle. The pedal axle has a lefte hand
thread and must be threaded onto the crank counter
clockwise. Tighten firmly. See fig 7.
